Запчасти Case W12 (022) - ENGINE GASKET KITS, VALVE GRIND GASKET KIT, CYLINDER BLOCK (02) - ENGINE

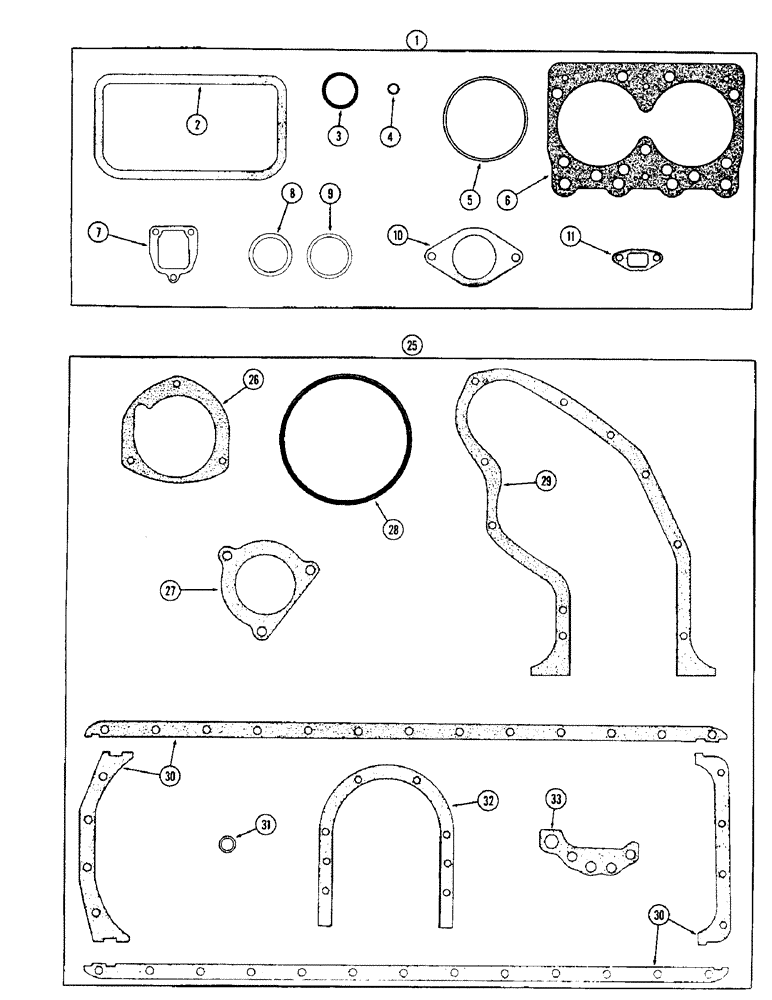

Схема запчастей Case W12 - (022) - ENGINE GASKET KITS, VALVE GRIND GASKET KIT, CYLINDER BLOCK (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A40928

X

GASKET KIT - valve grind (Replaces A15390), Includes: Ref. 2 - 11

1шт.

2

A27972

CYLINDER HEAD GASKET

- cyl. hd. cover

3шт.

3

A11423

SEAL

- thermostat

1шт.

4

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft

3шт.

4

A34686

RING

- fire, cylinder head gasket

6шт.

6

A57593

GASKET

- cyl. head (Replaces A23117)

3шт.

7

A22939

GASKET

- decompressor housing

3шт.

8

A21054

MANIFOLD GASKET

- intake manifold

3шт.

9

A11888

MANIFOLD GASKET

- exhaust manifold

6шт.

10

A11421

GASKET

- thermostat housing

1шт.

11

A27905

GASKET

- water manifold

6шт.

25

A24994

GASKET

KIT - cylinder block, Includes: Ref. 26 - 33

1шт.

26

1342741C1

GASKET

- water pump body, cylinder block gasket kit

1шт.

27

A27933

GASKET

- starting motor, cylinder block gasket kit

1шт.

28

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump drive shaft hsg., cylinder block gasket kit

1шт.

29

A33018

GASKET

- timing gear cover, cylinder block gasket kit

1шт.

30

A15391

GASKET

SET - oil pan, Includes: Ref. 31, cylinder block gasket kit

1шт.

31

A27927

OIL PAN GASKET SET

- drain plug oil pan, cylinder block gasket kit

1шт.

32

A32830

GASKET

- crankshaft retainer (Rear), cylinder block gasket kit

1шт.

33

A21084

GASKET

- filter base to block, cylinder block gasket kit

1шт.
