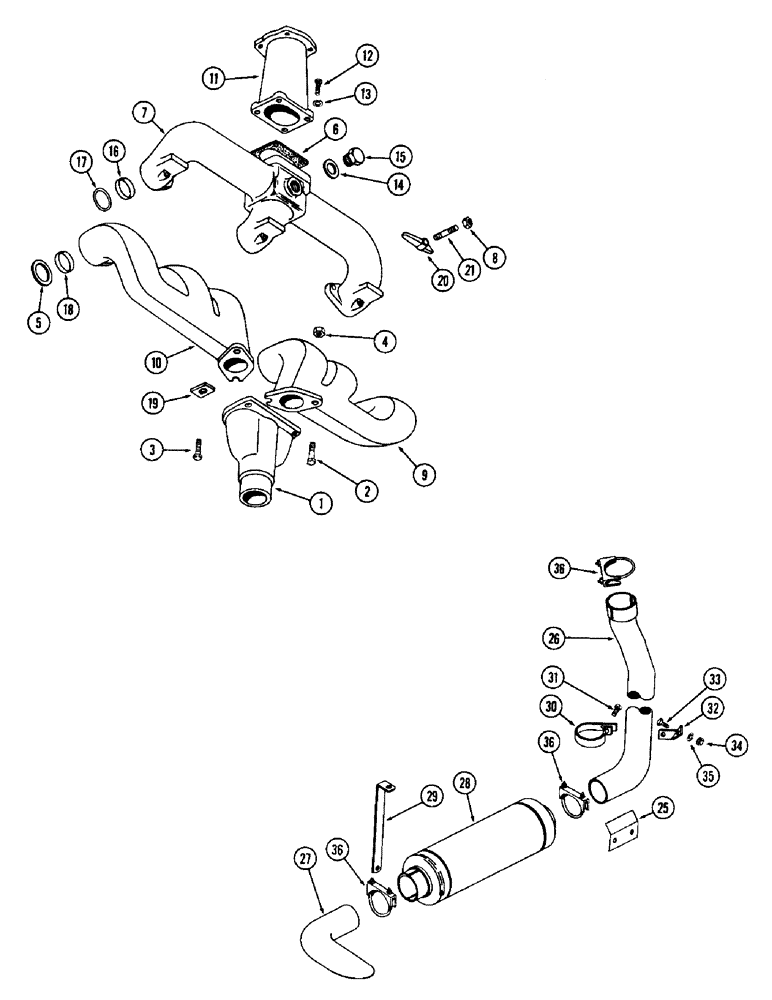

Запчасти Case W12 (020) - MANIFOLDS, EXHAUST PIPE AND MUFFLER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A11372
ELBOW
STACK - exhaust
1шт.
2
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
- (1/2" x 1-1/2" hex. N.F.)
2шт.
3
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
- (1/2" x 1-3/4" hex. N.F.)
1шт.
4
25-118
NUT,1/2"-20, G5
- (1/2" hex. N.F.)
3шт.
5
A11888
MANIFOLD GASKET
- exhaust manifold
6шт.
6
A20678
GASKET
- intake manifold extension
1шт.
7
A20700
MANIFOLD - intake
1шт.
8
25-117
NUT,7/16"-20, G5
- (7/16" N.F. hex.) for 09817 AB clamp
6шт.
9
A20742
X
MANIFOLD - exhaust, front
1шт.
10
A20743
MANIFOLD
- exhaust, rear
1шт.
11
A20747
EXTENSION - intake manifold
1шт.
12
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4шт.
13
92-6
LOCK WASHER,3/8"
4шт.
14
A20916
MANIFOLD GASKET
GASKET - heater plug
1шт.
15
A20917
PLUG
- intake manifold heater plug
1шт.
16
A21053
BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L
FERRULE - intake manifold
3шт.
17
A21054
MANIFOLD GASKET
- intake manifold
3шт.
18
A21056
CAP
FERRULE - exhaust manifold
6шт.
19
A27868
CLAMP
- exhaust stack flange plate
1шт.
20
A27910
CLAMP
- intake and exhaust manifold
6шт.
21
A27911
STUD
- clamp
6шт.
25
A14067
BAFFLE - exhaust pipe, and muffler
1шт.
26
A14206
PIPE - exhaust pipe and muffler
1шт.
27
A14207
ELBOW - exhaust pipe and muffler
1шт.
28
A14208
MUFFLER - exhaust pipe and muffler
1шт.
29
A14209
SUPPORT - muffler, exhaust pipe
1шт.
30
A14210
CLAMP - exhaust pipe and muffler
1шт.
31
14-614
SCREW,Hex, 3/8" - 24 x 7/8", Gr 5
BOLT - (3/8" x 7/8" hex. N.F.), exhaust pipe and muffler
1шт.
32
A14211
SUPPORT - clamp, exhaust pipe and muffler
1шт.
33
14-620
BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5
- (3/8" x 1-1/4" hex. N.F.), exhaust pipe and muffler
1шт.
34
25-116
NUT,Hex, 3/8"-24, G5
- (3/8" N.F.) for 14-620 and 14-614, exhaust pipe and muffler
2шт.
35
92-6
LOCK WASHER,3/8"
for 14-620 and 14-614, exhaust pipe and muffler 3/8"
2шт.
36
A27115
CLAMP
- muffler and exhaust pipe
3шт.
Выбрано товаров: 33
