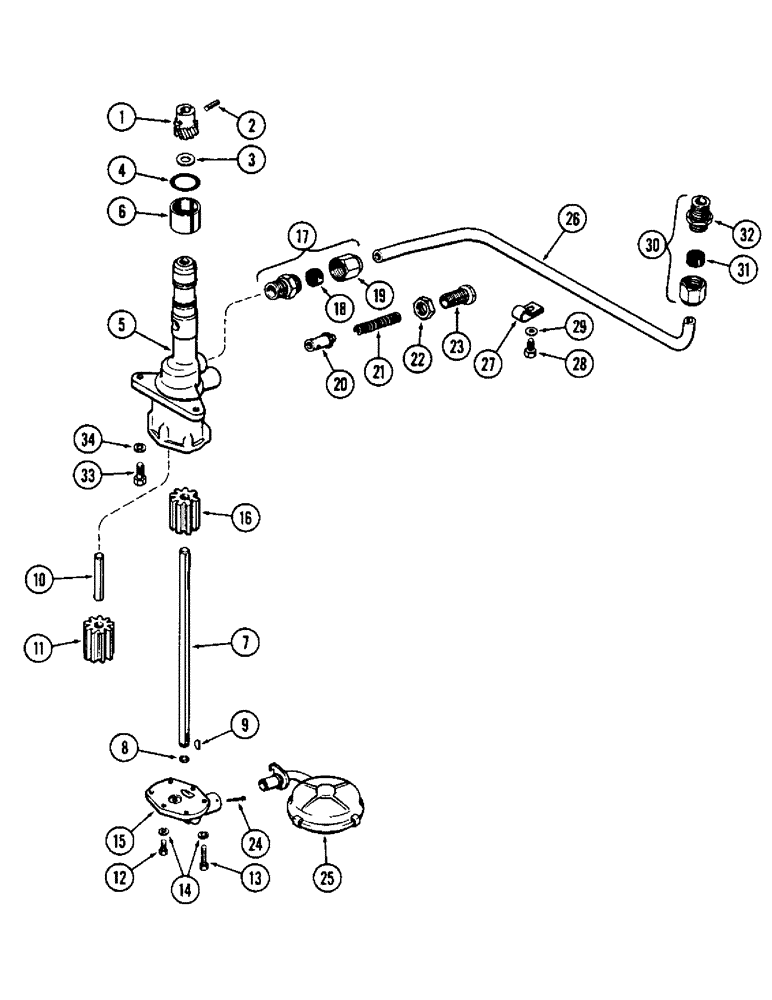

Запчасти Case W12 (016) - OIL PUMP (02) - ENGINE

A33878

PUMP

ASSY. - oil, engine (Late Model Loaders) (Used w/A33839 camshaft), Includes: Ref. 1 - 23

1шт.

A33443

PUMP

ASSY. - oil engine (Early Model Loaders) (Use w/A23513 camshaft) (Replaces A20722), Includes: Ref. 1 - 23

1шт.

1

A33840

GEAR WHEEL

GEAR - drive, pump (Steel, tin-plated) (Use with A33878 pump)

1шт.

1

A26329

GEAR

- drive, pump (Cast, copper plated) (Use with A33443 pump)

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

A27857

WASHER

- thrust, drive gear

1шт.

4

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - pump body

1шт.

5

A21094

BODY

ASSY. - oil pump, Includes: Ref. 6

1шт.

6

A21079

SLEEVE

- pump body

1шт.

7

A21102

SHAFT

- drive, oil pump

1шт.

8

A10916

RING, SNAP

RING - retainer, pump shaft

1шт.

9

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

10

A27854

SHAFT

- stub, pump gear

1шт.

11

A27856

GEAR WHEEL

GEAR - oil pump (w/o keyway)

1шт.

12

75-424

SCREW

- mach. (1/4" x 1/2" N.C., rd. hd.)

1шт.

13

75-412

SCREW,Rd, 1/4" x 3/4"

- mach. (1/4" x 3/4" N.C., rd. hd.)

5шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A33442

COVER - oil pump (Replaces A26308)

1шт.

16

A27855

GEAR WHEEL

GEAR - oil pump, w/keyway

1шт.

17

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (5/8" tube x 1/2" P.T.), Includes: Ref. 18 and 19

1шт.

18

222-106

SLEEVE,5/8" Tube

- connector, #60 fl., 5/8" Tube

1шт.

19

222-116

TUBE NUT,1"-18

NUT - connector, #61 fl., 5/8" tube

1шт.

20

A22566

PLUNGER

- relief, pump (Replaces A8901)

1шт.

21

A23598

VALVE SPRING

SPRING - relief plunger

1шт.

22

A27858

NUT

- adj. relief plunger screw

1шт.

23

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adj., pump relief

1шт.

24

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

25

A27476

FILTER SCREEN

SCREEN ASSY. - oil pump, float-o-type

1шт.

26

A20735

TUBE

- oil, Serial Range: pump-filter

1шт.

27

A10852

CLIP - pump oil tube

1шт.

28

A10072

BOLT,3/8" - 16 x 3/4"

- tube clip

1шт.

29

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

30

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

CONNECTOR ASSY. - (5/8" tube x 1/2" P.T.), Includes: Ref. 31 and 32

1шт.

31

222-106

SLEEVE,5/8" Tube

- connector, #60 fl., 5/8" Tube

1шт.

32

222-116

TUBE NUT,1"-18

NUT - connector, #61 fl., 5/8" tube

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.
