Запчасти Case W12 (010) - CAMSHAFT, OIL FILTER (02) - ENGINE

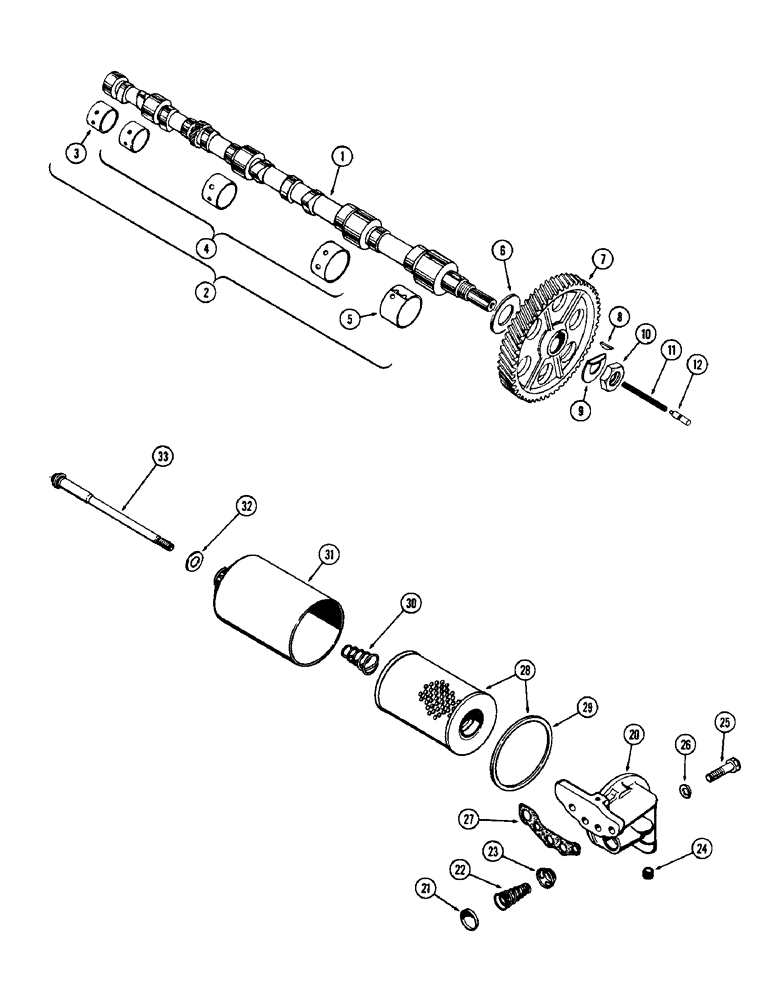

Схема запчастей Case W12 - (010) - CAMSHAFT, OIL FILTER (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A33839

CAMSHAFT

- engine (Use w/A33878 oil pump w/steel drive gear) (Late Model Loaders)

1шт.

1

A23513

CAMSHAFT

- engine (Use w/A33443 oil pump w/cast drive gear (Early Model Loaders)

1шт.

2

A23544

BUSHING

KIT - camshaft (Set of 5), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1-5/32" width (Order A23544)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1-27/64 width (Order A23544)

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-21/32" width (Order A23544)

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

LOCK - camshaft nut

1шт.

10

A26445

NUT

- camshaft

1шт.

11

CASA27853

SPRING

- camshaft plunger

1шт.

12

A27852

PLUNGER

- camshaft thrust

1шт.

20

A23475

BASE

ASSY. - oil filter, Includes: Ref. 21 - 24

1шт.

21

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, oil filter

1шт.

22

A21091

VALVE SPRING

SPRING - relief valve, oil filter

1шт.

23

A21090

VALVE

- relief, oil filter

1шт.

24

221-1843

PLUG

- pipe, 3/8" socket hd., oil filter

1шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Oil filter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

oil filter 1/2"

2шт.

27

A20823

GASKET

- base mtg. (Exh. stock: Order A21084), oil filter

1шт.

27

A21084

GASKET

- filter base mounting, oil filter

1шт.

28

A20822

ENGINE OIL FILTER

ELEMENT ASSY. - oil filter, Includes: Ref. 29

1шт.

29

A20429

GASKET

- element & shell mounting, oil filter

1шт.

30

A20427

VALVE SPRING

SPRING - element, oil filter

1шт.

31

A20824

SHELL

- filter element, oil filter

1шт.

32

A20426

GASKET

- stand pipe, oil filter

1шт.

33

A20825

PIPE

STAND PIPE - shell & element mounting, oil filter

1шт.

Выбрано товаров: 28
