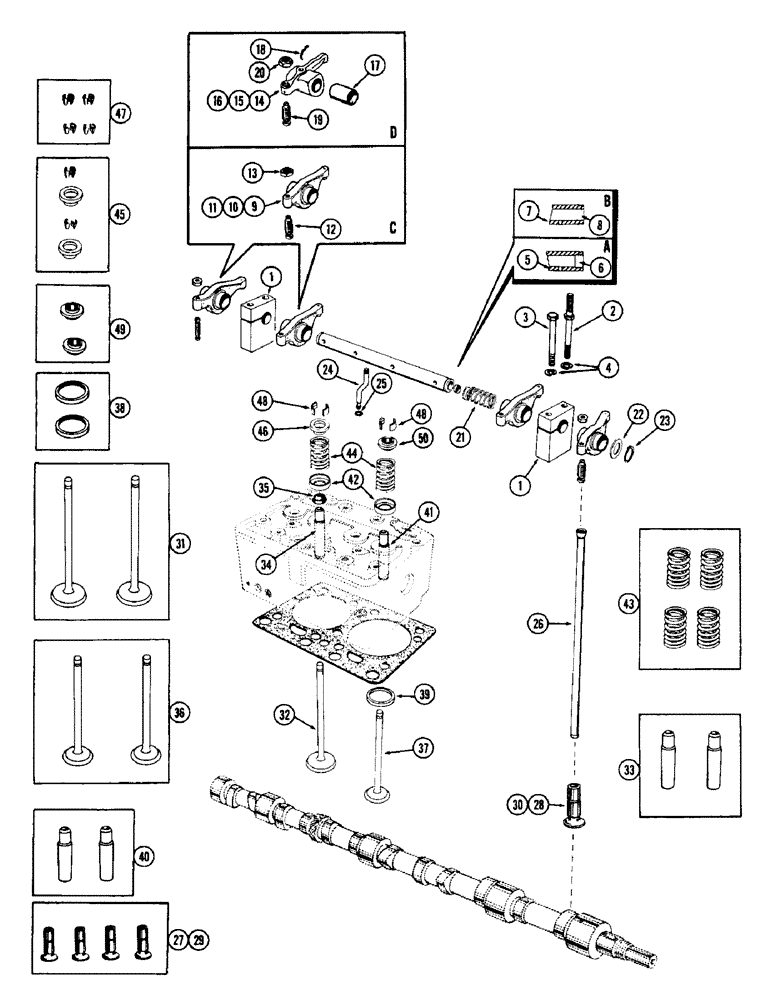

Запчасти Case W12 (008) - VALVES AND VALVE MECHANISM (02) - ENGINE

1

A27881

BRACKET

- rocker arm shaft

6шт.

2

A27882

STUD - rocker arm brkt. & valve cover

6шт.

3

15-764

BOLT (SPREADER)

BOLT - 7/16 x 4" N.C. hex.

6шт.

4

92-7

LOCK WASHER,7/16"

12шт.

5

A21100

SHAFT

ASSY. - rocker arm (Reamed) (See inset A), Includes: Ref. 6

3шт.

6

A26667

PLUG - rocker arm shaft

2шт.

7

A22320

SHAFT ASSY. - rocker arm (Not reamed) (Order A21100) (See inset B)

3шт.

8

A22318

PLUG - rocker arm shaft

2шт.

9

A22322

ROCKER

ARM ASSY. - rocker, intake valve (Incl. Ref. 12 & 13) (Stamped) (See inset C)

6шт.

10

A22324

ROCKER

ARM ASSY. - rocker, exhaust valve for no. 1, 3 and 5 cylinder (Incl. Ref. 12 & 13) (Stamped) (See inset C)

3шт.

11

A22326

ROCKER

ARM ASSY. - rocker, exhaust valve for no. 2, 4 and 6 cylinder (Incl. Ref. 12 & 13) (Stamped) (See inset C)

3шт.

12

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - push rod adjusting

1шт.

13

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

14

A28660

ARM

ASSY. - rocker, exhaust valve for no. 1, 3 and 5 cylinder (Incl. Ref. 17) (Forged) (See inset D)

3шт.

15

A28659

X

ARM ASSY. - rocker, intake valve (Incl. Ref. 12) (Forged) (See inset D)

6шт.

16

A28661

X

ARM ASSY. - rocker, exhaust valve for no. 2, 4 and 6 cylinders (Incl. Ref. 17) (Forged) (See inset D)

3шт.

17

A27876

BUSHING

- intake and exh. rocker arm

1шт.

18

A27938

WICK

- exh. valve rocker arm (For forged arm)

6шт.

19

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - valve push rod adjusting

12шт.

20

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. hex. jam)

12шт.

21

A27877

SPRING

- rocker arm shaft

3шт.

22

A27878

WASHER

- rocker arm shaft

18шт.

23

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

24

A27879

TUBE

- oil, rocker arm shaft

3шт.

25

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube, rocker arm shaft

3шт.

26

A21060

ROD

- push, valve

12шт.

27

A21653

KIT

LIFTER KIT - push rod (Set of 4)

3шт.

28

NSS

NOT SOLD SEPARAT

LIFTER - valve push rod (Order A21653)

12шт.

29

A22463

KIT

LIFTER KIT - push rod (.010" oversize) (Set of 4)

3шт.

30

NSS

NOT SOLD SEPARAT

LIFTER - valve push rod (.010" oversize) (Order A22463)

12шт.

31

A24921

KIT

VALVE KIT - intake (Set of 2) (Repl. A21716: Set of 6)

3шт.

32

NSS

NOT SOLD SEPARAT

VALVE - intake (Order A24921)

6шт.

33

A21671

GUIDE

KIT - intake valve (Set of 2)

3шт.

34

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order A21671)

6шт.

35

A10726

SEAL

SHIELD - intake stem (Rubber)

6шт.

36

A24881

KIT

VALVE KIT - exhaust (Set of 2) (Repl. A21717: Set of 6)

3шт.

37

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order A24881)

6шт.

38

A21683

SHAFT

INSERT KIT - exh. valve seat (Set of 2)

3шт.

39

A21023

INSERT

- exh. valve seat (Order A21683)

6шт.

40

A21674

GUIDE

KIT - exh. valve (Set of 2)

3шт.

41

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order A21674)

6шт.

42

A27866

SEAT

- int. & exh. valve spring

12шт.

43

A21694

SPRING

KIT - int. & exh. valve (Set of 4)

3шт.

44

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valve (Order A21694)

12шт.

45

A21657

LOCK

RETAINER KIT - int. valve (Incl. 2 ret. & 4 keepers)

3шт.

46

NSS

NOT SOLD SEPARAT

RETAINER - valve spring (Intake valve) (Order A21657)

6шт.

47

A40352

LOCK

KEEPER KIT - int. & exh. valve (Set of 8)

3шт.

48

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer (Order A40352)

24шт.

49

A24993

CAP

ROTO KIT - exh. valve (Set of 2) (Repl. A23174: Set of 4)

3шт.

50

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order A24993)

6шт.
