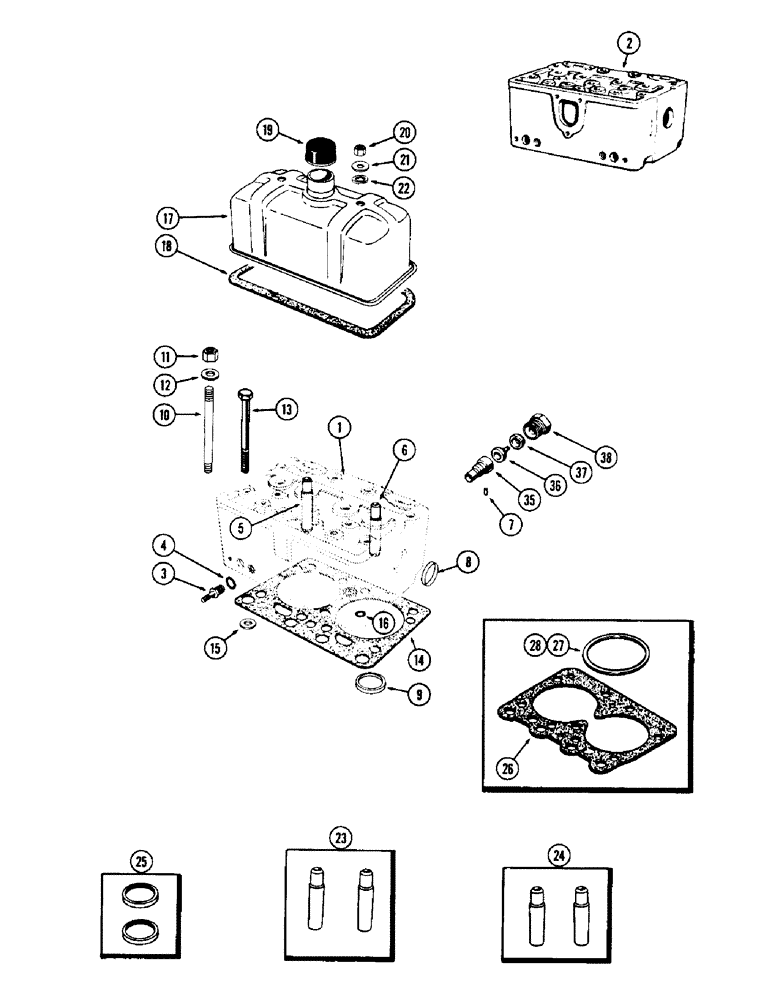

Запчасти Case W12 (006) - CYLINDER HEAD ASSEMBLY, POWRCEL (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A33644
X
HEAD ASSY. - cylinder (w/guides & inserts) (Use without decompressor), Includes: Ref. 3 - 9
3шт.
2
A21022
HEAD
ASSY. - cylinder (w/guides & inserts) (Use with decompressor), Includes: Ref. 3 - 9
3шт.
3
A10678
STUD
- large, nozzle holder
2шт.
4
A10679
GASKET
- nozzle stud
2шт.
5
NSS
NOT SOLD SEPARAT
GUIDE - intake valve (Order A21671)
2шт.
6
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve (Order A21674)
2шт.
7
A11810
PIN,3.19mm OD x 6.99mm L
- locating, powrcel
2шт.
8
A34124
PLUG,Cup, 1 5/8", Stainless
- cup, cyl. hd. expansion
2шт.
9
NSS
NOT SOLD SEPARAT
INSERT - exh. valve seat (Order A21683)
2шт.
10
A21058
BOLT
- cyl. head (See A23355 bolt)
27шт.
11
25-1109
NUT - (9/16" fin. hex. N.F.) For A21058 stud
27шт.
12
A27870
WASHER
- cyl. head (Use w/A21058 stud only)
27шт.
13
A23355
BOLT
- cylinder head
27шт.
14
NSS
NOT SOLD SEPARAT
GASKET - cylinder head (Order ref. 26, 27 or 28)
3шт.
15
NSS
NOT SOLD SEPARAT
RING - cyl. head gasket (Order ref. 26, 27 or 28)
6шт.
16
NSS
NOT SOLD SEPARAT
"O" RING - cyl. hd. oil press. (Order ref. 26, 27 or 28)
3шт.
17
A20345
COVER - cylinder head
3шт.
18
A27972
CYLINDER HEAD GASKET
- cylinder head cover
3шт.
19
A27973
CAP
BREATHER - cyl. head cover
3шт.
20
25-117
NUT,7/16"-20, G5
- 7/16" N.F. hex.
4шт.
21
A23683
WASHER
- beveled, cyl. head stud
6шт.
22
A23684
GASKET
GASKET - valve cover stud
6шт.
23
A21671
GUIDE
KIT - intake valve (Set of 2)
3шт.
24
A21674
GUIDE
KIT - exhaust valve (Set of 2)
3шт.
25
A21683
SHAFT
INSERT KIT - exh. valve seat (Set of 2)
3шт.
26
A34685
X
GASKET - cylinder head
3шт.
27
A34686
RING
- fire, cylinder head gasket (Std.)
6шт.
28
A34688
RING
- fire, cyl. hd. gasket (Oversize) (Blue stripe coded)
6шт.
35
A22978
BODY
ASSY - powrcel
6шт.
36
A22979
CAP - powrcel
6шт.
37
A11812
CLAMP
- powrcel
6шт.
38
A11813
PLUG
SCREW - powrcel clamp
6шт.
Выбрано товаров: 32
