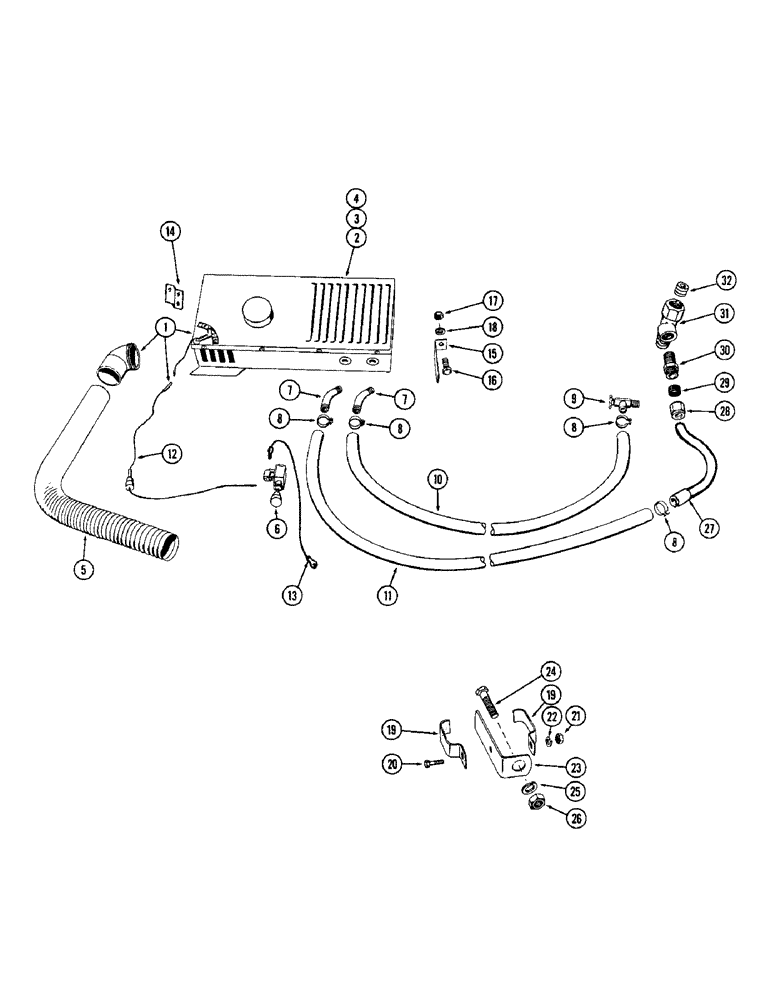

Запчасти Case W12 (200) - CAB HEATER AND DEFROSTER (09) - CHASSIS

A14804

ATTACHMENT - heater w/defroster, Includes: Ref. 1 - 31

1шт.

1

A14768

HEATER ASSY - cab., w/defroster, Includes: Ref. 2 - 12

1шт.

2

A14771

HEATER ASSY - cab (24 volt), Includes: Ref. 3 and 4

1шт.

3

A18348

MOTOR ASSY - heater (24 volt)

1шт.

4

L30009

FAN

- heater motor

1шт.

5

A36110

HOSE - defroster flexible (36", Serial Range: cut-24")

1шт.

6

A12898

SWITCH

ASSY - heater

1шт.

7

A16765

CONNECTOR - hose to heater (3/8" P.T. x 1/2" x 35 degrees)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" x 1-1/16"

4шт.

9

A16764

VALVE

CONNECTOR ASSY - shut-off

1шт.

10

L52722

HOSE ASSY.

HOSE - heater to cylinder block (13 ft.) (replaces A19942)

1шт.

11

A19943

HOSE

- heater to water pump (12 ft.)

1шт.

12

A19937

WIRE ASSY - heater to switch, w/fuse (15 amp)

1шт.

13

A14733

ELECTRICAL WIRE

WIRE - heater swt. to ign. swt. "B" term

1шт.

14

A14807

BRACKET - mounting, heater L.H.

1шт.

15

A14806

BRACKET - mounting, heater R.H.

1шт.

16

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 7-1/4" N.F.

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

A13029

CLIP

- heater hose retainer

2шт.

20

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

21

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

A13030

BRACKET - clip retainer

1шт.

24

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

- hex., 3/4" x 1-3/4" N.F.

1шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

26

25-1112

NUT,3/4"-16, G5

- hex., 3/4" N.F.

1шт.

27

A14770

TUBE - water pump outlet

1шт.

28

222-29

CONNECTOR, ELEC

CONNECTOR ASSY - 1/2" tube x 3/8" P.T., Includes: Ref. 29 - 31

1шт.

29

222-105

SLEEVE,182" Tube

- connector, 1/2" tube

1шт.

30

222-115

NUT,13/16"-18

- hex. connector, 1/2" tube

1шт.

31

221-1693

TEE,Street, 1/2" NPT

- service 1/2" street

1шт.

32

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd.

1шт.
