Запчасти Case W12 (196) - OPERATORS CAB (09) - CHASSIS

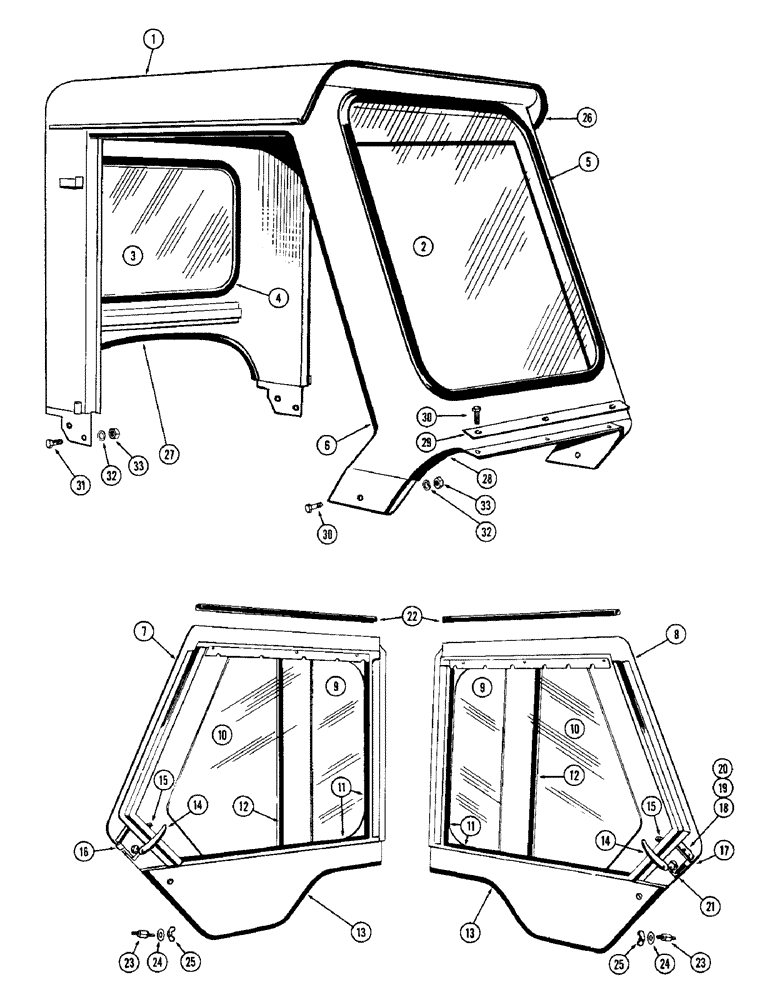

Схема запчастей Case W12 - (196) - OPERATORS CAB (09) - CHASSIS

Артикул

Название

Примечание

Количество

A14802M

CAB ATTACHMENT - operators, w/wiper, Includes: Ref. 1 - 22

1шт.

A12603

CAB ASSY. - operator, Includes: Ref. 1 - 22

1шт.

1

A12573

CAB ASSY. - operators, w/o doors, Includes: Ref. 2 - 6

1шт.

2

A12569

GLASS - windshield

1шт.

3

A12570

GLASS - rear panel

1шт.

4

A12572

MOULDING - rear panel

1шт.

5

A12571

MOULDING - windshield

1шт.

6

A12600

STRIPPING - weather, door upper & front

2шт.

7

A12596

DOOR ASSY. - cab R.H., Includes: Ref. 9 - 22

1шт.

8

A12597

DOOR ASSY. - cab L.H., Includes: Ref. 9 - 22

1шт.

9

A12595

GLASS ASSY. - rear sliding w/pulls

1шт.

10

A12594

GLASS ASSY. - front sliding w/pulls

1шт.

11

A12591

CHANNEL - door window

1шт.

12

A12593

STRIPPING - weather, door glass

1шт.

13

A12601

STRIPPING - weather, door bottom

1шт.

14

A20598

HANDLE - inside door

1шт.

15

A20802

RING

HANDLE - outside door

1шт.

16

A12598

LATCH ASSY. - cab door R.H.

1шт.

17

A12599

LATCH ASSY. - cab door L.H.

1шт.

18

179-277

SCREW - mach., #8-32 x 1/2" N.C. oval hd.

4шт.

19

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- mach., #8-32 x 1/2" N.C., rd. hd.

2шт.

20

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

21

A12602

SPACER - door latch

1шт.

22

A12592

CHANNEL - door top

1шт.

23

A13042

STUD - door hold

2шт.

24

95-6

WASHER,3/8"

- plain, 3/8"

2шт.

25

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

26

A13225

MOULDING - cab roof front edge

1шт.

27

A12604

MOULDING - cab lower rear (37")

1шт.

28

A12605

MOULDING - cab lower front (6")

2шт.

29

A12606

STRAP - cab front hold down

1шт.

30

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex. hd., 3/8" x 1" N.F.

5шт.

31

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- hex. hd., 3/8" x 1-1/4" N.F.

2шт.

32

92-6

LOCK WASHER,3/8"

7шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- hex., 3/8" N.F.

7шт.

Выбрано товаров: 35
