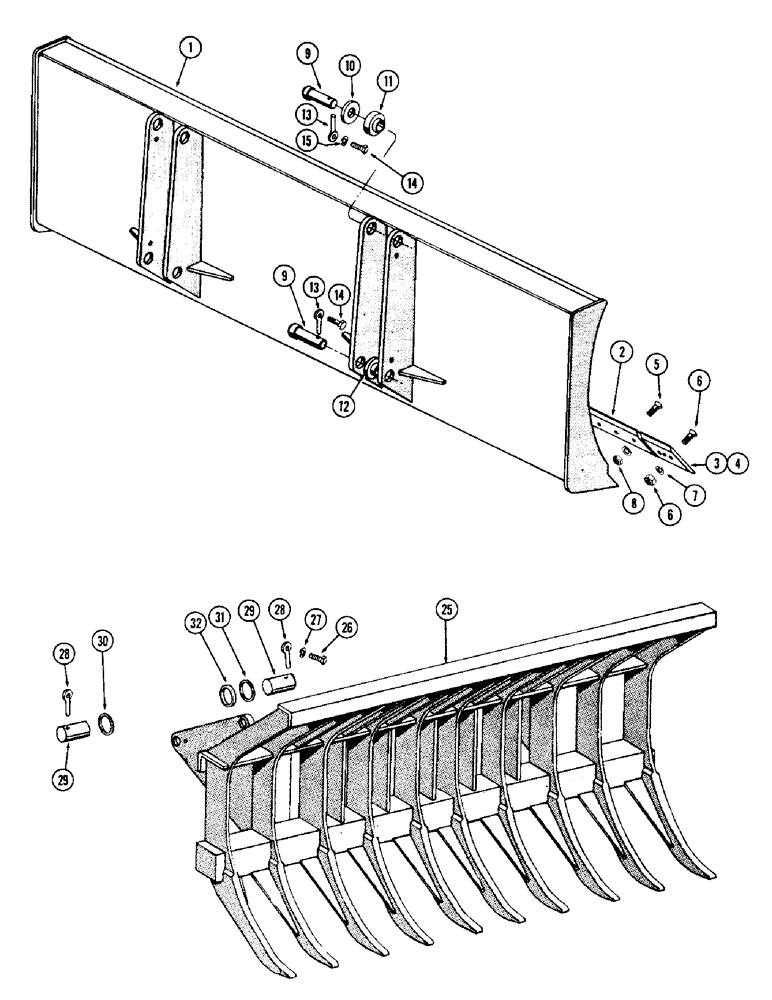

Запчасти Case W12 (194) - DOZER BLADE (09) - CHASSIS

R14478

BLADE ASSY. - dozer, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

MOULDBOARD - dozer (Order R14478)

1шт.

2

16792

EDGE, CUTTING

BLADE - center cutting

1шт.

3

70441

BLADE

- cutting, R.H. end

1шт.

4

70442

BLADE

- cutting, L.H. end

1шт.

5

19-832

BOLT

- plow, 1/2 x 2" N.C.

18шт.

6

T19484

BOLT

- plow, 5/8 x 2-1/4" N.C. (w/nut)

6шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

8

25-118

NUT,1/2"-20, G5

- hex., 1/2" N.C.

18шт.

9

R13262

PIN - pivot, dozer

4шт.

10

R13257

SPACER - outer, upper pivot pin

2шт.

11

R13258

SPACER ASSY. - inner, upper pivot pin

2шт.

12

R13252

SPACER ASSY. - inner, lower pivot pin

2шт.

13

A10615

LOCK ASSY

PIN - lock, pivot pin

4шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

15

92-8

LOCK WASHER,1/2"

4шт.

25

R13541

RAKE ASSY. - brush rake, Includes: Ref. 26 - 32

1шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Brush rake Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

27

92-8

LOCK WASHER,1/2"

brush rake 1/2"

4шт.

28

A10615

LOCK ASSY

LOCK - pivot pin, brush rake

4шт.

29

R13262

PIN - pivot, brush rake upper & lower, brush rake

4шт.

30

R13252

SPACER ASSY. - inner, lower pivot pin, brush rake

2шт.

31

A13257

GEAR WHEEL

SPACER - outer, upper pivot pin, brush rake

2шт.

32

A13258

SPACER ASSY. - inner, to upper pivot pin, brush rake

2шт.
