Запчасти Case W12 (192) - BUCKETS (09) - CHASSIS

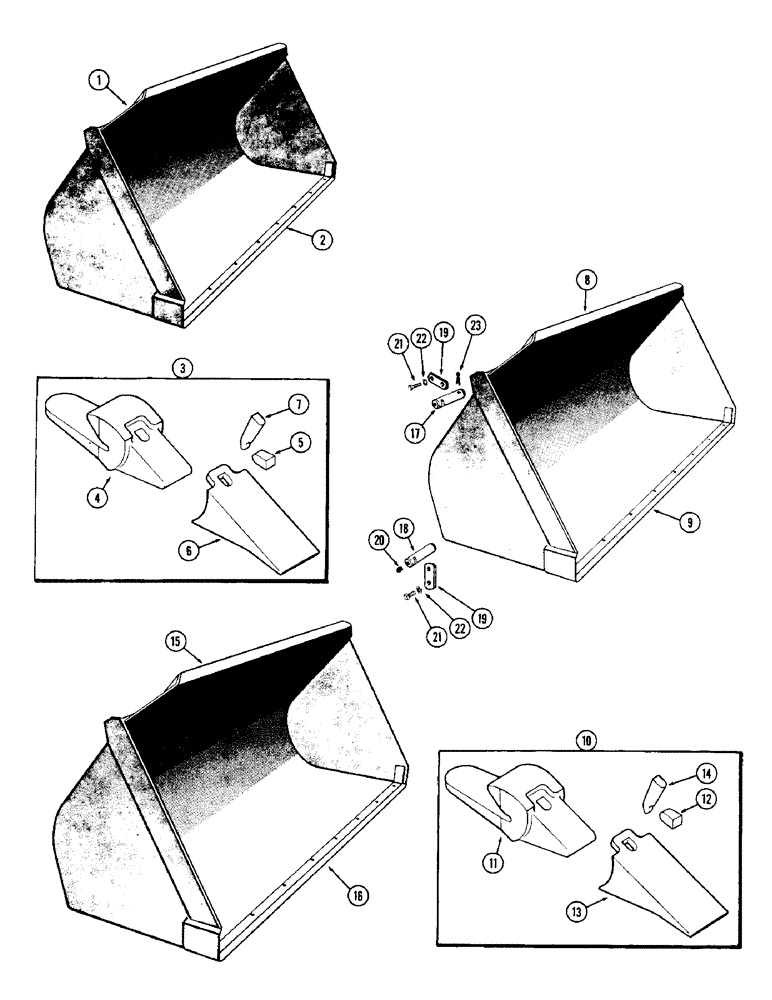

Схема запчастей Case W12 - (192) - BUCKETS (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

A15305M

BUCKET ASSY. - heavy duty (1-5/8 cubic yard), Includes: Ref. 2

1шт.

2

A15315

EDGE - cutting, bucket

1шт.

3

A14107M

TOOTH ASSY. - bucket (Use w/ref. 1), Includes: Ref. 4- 7

9шт.

4

A14109

BASE ASSY. - bucket tooth, Includes: Ref. 5

1шт.

5

A16809

PLUG

- tooth pin (Rubber)

1шт.

6

A14108

TOOTH - cutting

1шт.

7

A16808

PIN - tooth retainer

1шт.

8

A14089M

BUCKET ASSY. - material (2-1/2 cubic yard), Includes: Ref. 9

1шт.

9

A16450

EDGE

- cutting, bucket

1шт.

10

A14107M

TOOTH ASSY. - cutting, bucket (Use w/ref. 8), Includes: Ref. 11 - 14

11шт.

11

A14109

BASE ASSY. - tooth mounting, Includes: Ref. 12

1шт.

12

A16809

PLUG

- pin retaining (Rubber)

1шт.

13

A14108

TOOTH - cutting

1шт.

14

A16808

PIN - tooth locking

1шт.

15

A15318

BUCKET ASSY. - light material (3-1/2 cubic yard), Includes: Ref. 16

1шт.

16

A15334

EDGE - cutting, bucket

1шт.

17

A14105

PIN

- pivot, bucket upper

2шт.

18

A15407

PIN - pivot, bucket lower

2шт.

19

A14106

X

LOCK - pivot pin

4шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. straight

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

132-103

X

PIN - cotter, 3/16 x 2-3/4" (On right hand pin to mount gauge tube)

1шт.

Выбрано товаров: 23
