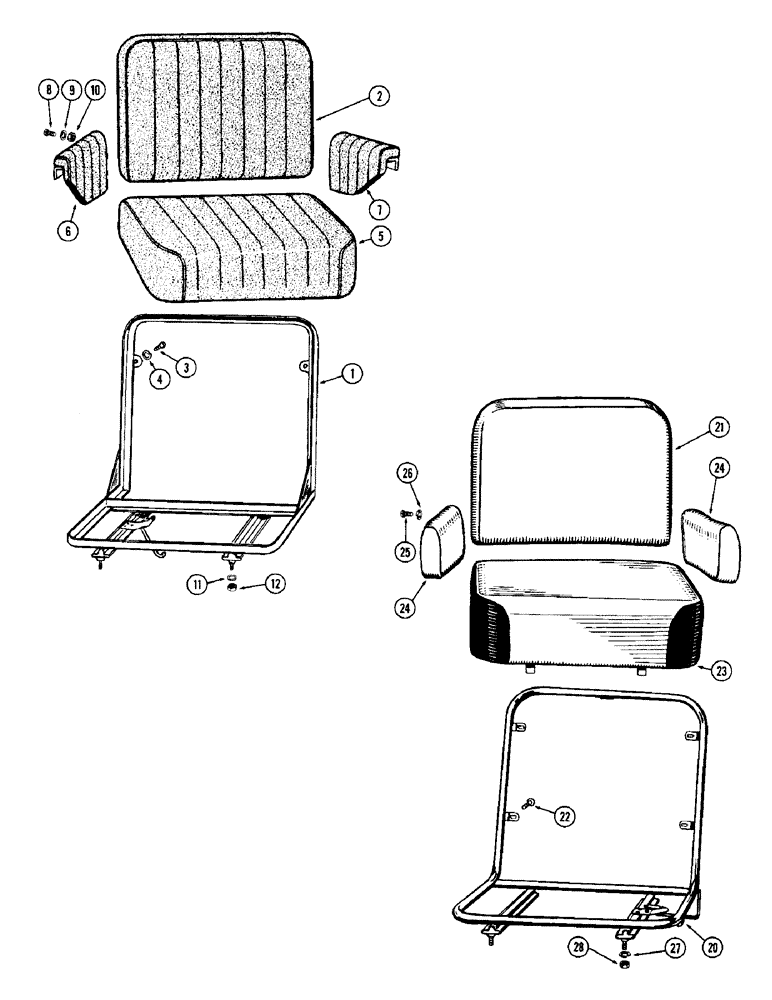

Запчасти Case W12 (166) - OPERATORS SEAT, FIRST USED LOADER SER. NO. 8162900, OPERATORS (09) - CHASSIS

A16763

SEAT ASSY. - operator, Includes: Ref. 1 - 7

1шт.

A15525

SEAT ASSY. - operator, Includes: Ref. 1 - 5

1шт.

1

A15822

FRAME ASSY. - seat

1шт.

2

A15824

BACK REST - seat

1шт.

3

175-415

SCREW,Phil Truss Hd, 5/16" - 18 x 1"

- mach., 5/16"-18 x 1" N.C. Phillips hd.

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

A15823

CUSHION- seat

1шт.

6

A15526

ARM

REST - operators R.H.

1шт.

7

A15527

ARM REST - operators L.H.

1шт.

8

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

25-104

NUT,1/4"-20, G5

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

131-507

NUT

- hex., 5/16"-18 N.C.

4шт.

A12229

SEAT ASSY. - operators, Includes: Ref. 20 - 23

1шт.

20

A13094

FRAME ASSY. - operators seat, Serial Range: -8162900

1шт.

21

A13095

CUSHION

BACK REST - seat, operators seat, Serial Range: -8162900

1шт.

22

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- mach., 1/4 x 3/4" N.C. rd. hd., operators seat, Serial Range: -8162900

4шт.

23

A13096

CUSHION - seat, operators seat, Serial Range: -8162900

1шт.

24

A12233

ARM REST - operators R.H. & L.H., operators seat, Serial Range: -8162900

2шт.

25

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Operators seat, Serial Range: -8162900

4шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Operators seat 1/4", Serial Range: -8162900

4шт.

27

92-5

LOCK WASHER,5/16"

operators seat 5/16", Serial Range: -8162900

4шт.

28

25-115

NUT,5/16"-24, G5

- hex, 5/16" NF, operators seat, Serial Range: -8162900

4шт.
