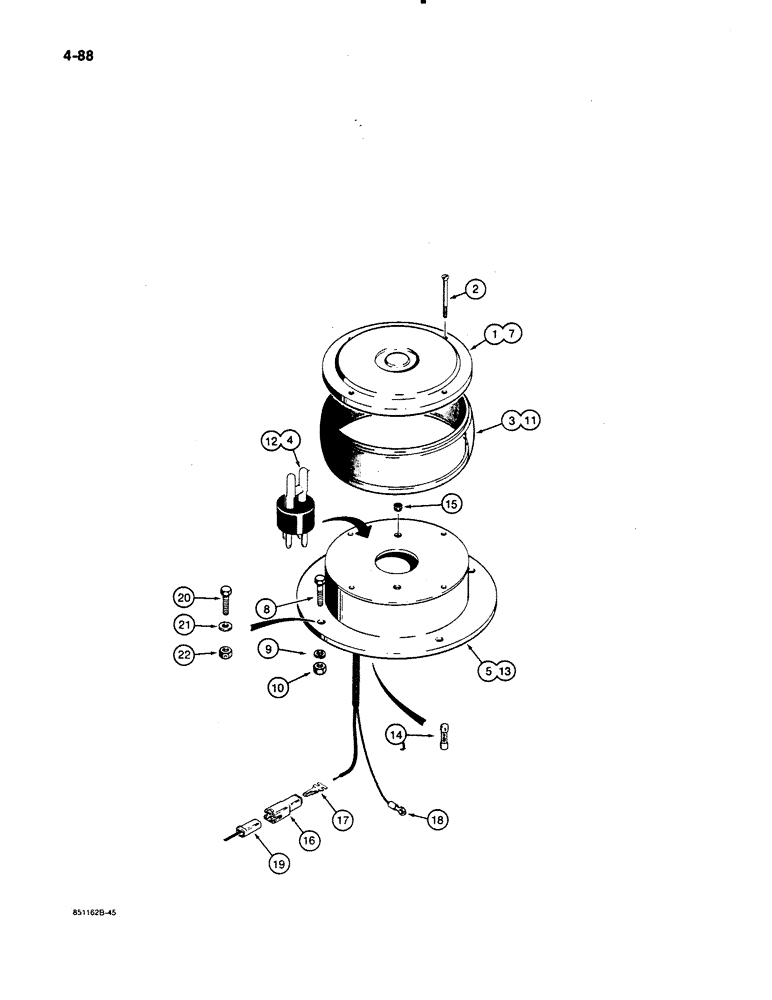

Запчасти Case W11B (4-088) - STROBE LAMPS, L101230 STROBE LAMP, BEFORE P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS

L101230

LAMP

ASSEMBLY - strobe, Includes: Ref. 1 - 6

1шт.

1

D75869

COVER

- lamp

1шт.

2

171-131

SCREW,Sl Flat Hd, #6 - 32 x 2 1/4"

MACHINE SCREW - flat head slotted, No. 6 - 32 NC x 2-1/4"

4шт.

3

D75870

LENS

- amber

1шт.

4

D75871

TUBE

BULB - special

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

6

D82934

DECAL

- warning, high voltage, not shown

1шт.

L115422

LAMP

ASSEMBLY - strobe, Includes: Ref. 7 - 15

1шт.

7

D75869

COVER

- lamp, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Not used, see Ref. 20, L115422 strobe lamp PIN Hex, 1/4"-20 x 1", G5, Start Serial: 9158252

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Not used, see Ref. 21, L115422 strobe lamp PIN 1/4", Start Serial: 9158252

4шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, not used, see Ref. 22, L115422 strobe lamp PIN, Start Serial: 9158252

4шт.

11

D75870

LENS

- amber, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

12

D75871

TUBE

BULB - special, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - lamp, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

14

223-39

FUSE,7 1/2" Amp, Type MDL

- 3 amp, MDL, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - rubber, L115422 strobe lamp PIN, Start Serial: 9158252

2шт.

16

223-166

CONNECTOR, ELEC

COVER - terminal, female, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

17

223-180

TERMINAL CONNECTOR,Male, 14 - 16

TERMINAL - connector, male, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

18

223-52

FUSE

TERMINAL - eyelet, ground, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

19

REF

INSTRUCTION

HARNESS - ROPS or cab, see Figure 4-81 for correct harness, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

20

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, L115422 strobe lamp PIN, Start Serial: 9158252

1шт.

21

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x .065 inch, L115422 strobe lamp PIN, Start Serial: 9158252

4шт.

22

131-204

NUT,1/4"-20

NUT - hex, self-locking, 1/4 inch NC, L115422 strobe lamp PIN, Start Serial: 9158252

4шт.
