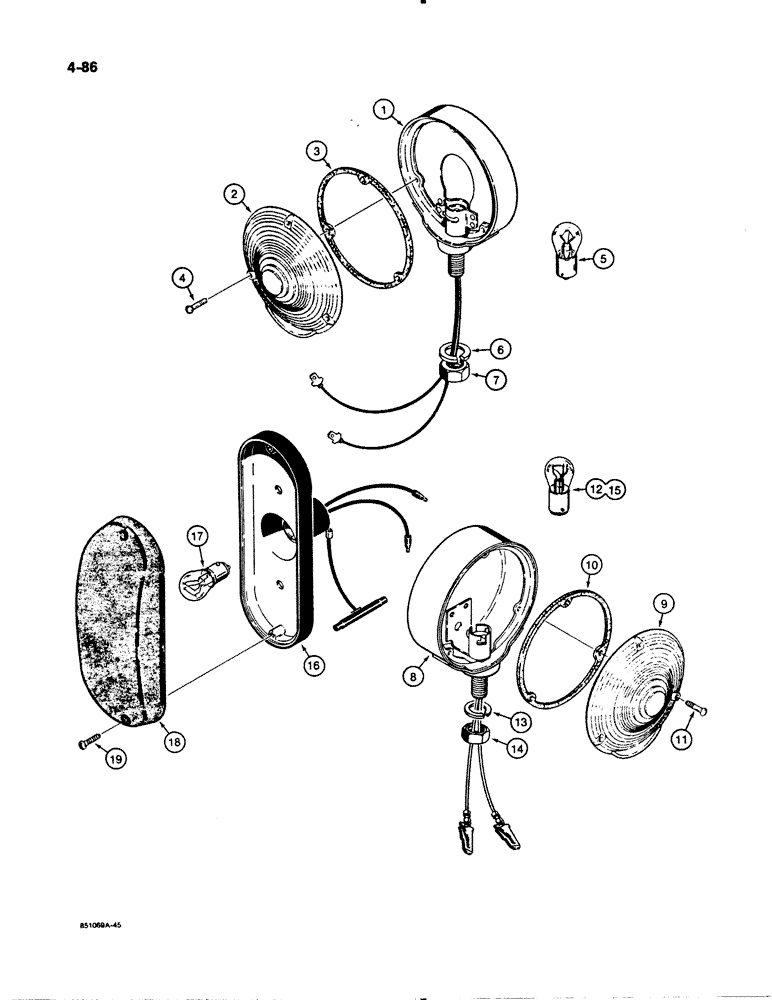

Запчасти Case W11B (4-086) - STOP AND TAIL LAMPS, STOP AND TAIL LAMP - L107689, BEFORE (04) - ELECTRICAL SYSTEMS

L107689

LIGHT

LAMP ASSEMBLY - stop and tail, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp

1шт.

L32213

LENS

KIT - lamp, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

LENS - red

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

4

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, round head slotted, no. 6 NC x 5/8 inch

3шт.

5

R11078

LAMP

BULB - No. 1034

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

L114617

LAMP

ASSEMBLY - stop and tail, also order Ref. 15, R11078 bulb, Includes: Ref. 8 - 14

1шт.

Includes L33194 24 volt bulb which is not used on the W11B. Replace the 24 volt bulb with R11078 12 volt bulb before installation of the lamp assembly.

1шт.

8

NSS

NOT SOLD SEPARAT

BODY AND SOCKET - lamp, stop and tail lamp - L114617 PIN 9158252 - 9162787

1шт.

L32213

LENS

KIT - lamp, stop and tail lamp - L114617 PIN 9158252 - 9162787, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

LENS - red, stop and tail lamp - L114617 PIN 9158252 - 9162787

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - lens, stop and tail lamp - L114617 PIN 9158252 - 9162787

1шт.

11

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, round head slotted, no. 6 NC x 5/8 inch, stop and tail lamp - L114617 PIN 9158252 - 9162787

3шт.

12

L33194

BULB

- 24 volt, G.E. No. 1662, not used on the W11B, order R11078 12 volt bulb, Ref. 15, stop and tail lamp - L114617 PIN 9158252 - 9162787

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Stop and tail lamp - L114617 PIN 9158252 - 9162787 1/2"

1шт.

14

129-125

NUT,1/2"-20, G5

Stop and tail lamp - L114617 PIN 9158252 - 9162787 1/2"-20, G5

1шт.

15

R11078

LAMP

BULB - 12 volt, G.E. No. 1034, stop and tail lamp - L114617 PIN 9158252 - 9162787

1шт.

D121152

LAMP,12V

ASSEMBLY - stop and tail, Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - lamp, complete, stop and tail lamp - D121152 PIN, Start Serial: 9162788

1шт.

17

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail lamp - D121152 PIN, Start Serial: 9162788

1шт.

18

N6836

LENS

- red, lamp, stop and tail lamp - D121152 PIN, Start Serial: 9162788

1шт.

19

187-1005

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - round head, self-tapping, no. 6 NC x 5/8 inch, stop and tail lamp - D121152 PIN, Start Serial: 9162788

2шт.
