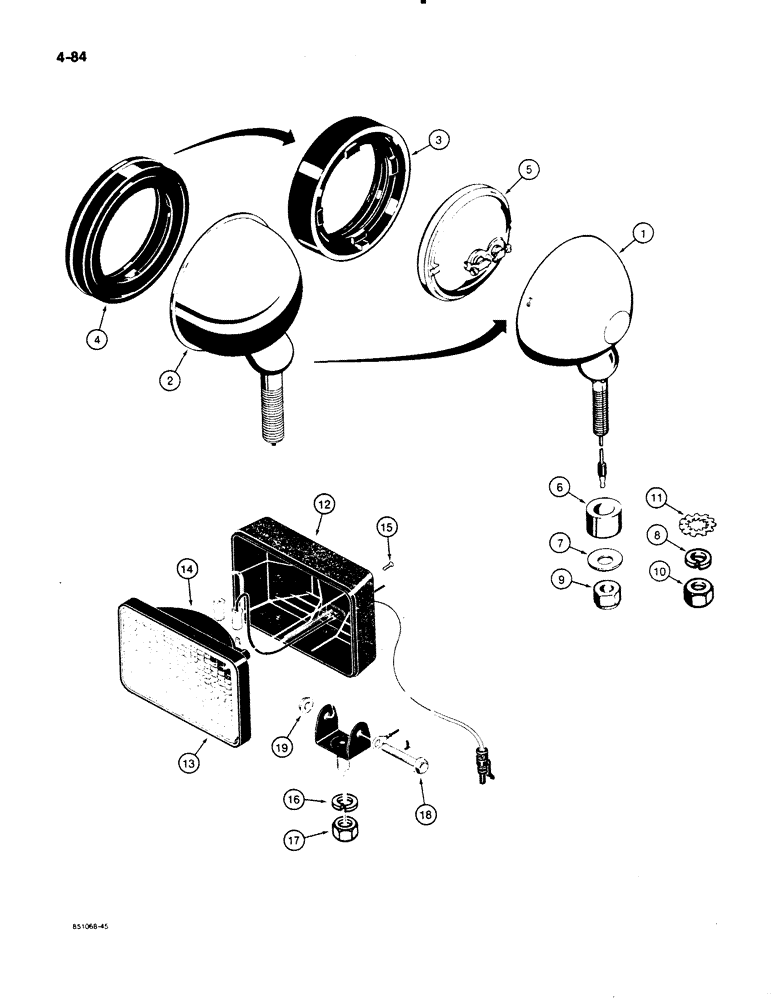

Запчасти Case W11B (4-084) - REAR FLOOD LAMPS, D88684 REAR FLOOD LAMP - SEALED BEAM (04) - ELECTRICAL SYSTEMS

D88684

LAMP

ASSEMBLY - rear, used on models without canopy or cab, Includes: Ref. 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 3 only

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 4 only

1шт.

3

A25213

RETAINER

- rubber, lamp, locks to shell with 3 rubber tabs, if used

1шт.

4

N6160

LAMP

RETAINER - lamp, rubber, locks over shell flange, if used

1шт.

5

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

6

D37048

BUSHING

- pivot

1шт.

7

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

131-28

LOCK NUT,1/2"-20, GB

NUT - hex lock, 1/2 inch NF

1шт.

10

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Can be used to replace Ref. 8, if used Ext-Int Tooth, 1/2"

2шт.

L115227

LIGHT ASSY.

LAMP ASSEMBLY - rear, used on models without canopy or cab, Includes: Ref. 12 - 19

2шт.

12

NSS

NOT SOLD SEPARAT

SHELL - lamp, L115227 rear flood lamp - halogen, Start Serial: 9158252

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - shell, L115227 rear flood lamp - halogen, Start Serial: 9158252

1шт.

14

F45230

HEADLIGHT

BULB - halogen, L115227 rear flood lamp - halogen, Start Serial: 9158252

1шт.

Ref. 14A REPLACES N13100

1шт.

15

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 x 1/2", L115227 rear flood lamp - halogen, Start Serial: 9158252

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , L115227 rear flood lamp - halogen 1/2", Start Serial: 9158252

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, L115227 Rear flood lamp - Halogen 1/2"-13, G5, Start Serial: 9158252

1шт.

18

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

L115227 rear flood lamp - halogen Hex Flg, 5/16"-18 x 2", Serr, Start Serial: 9158252

1шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated, L115227 rear flood lamp - halogen, Start Serial: 9158252

1шт.
