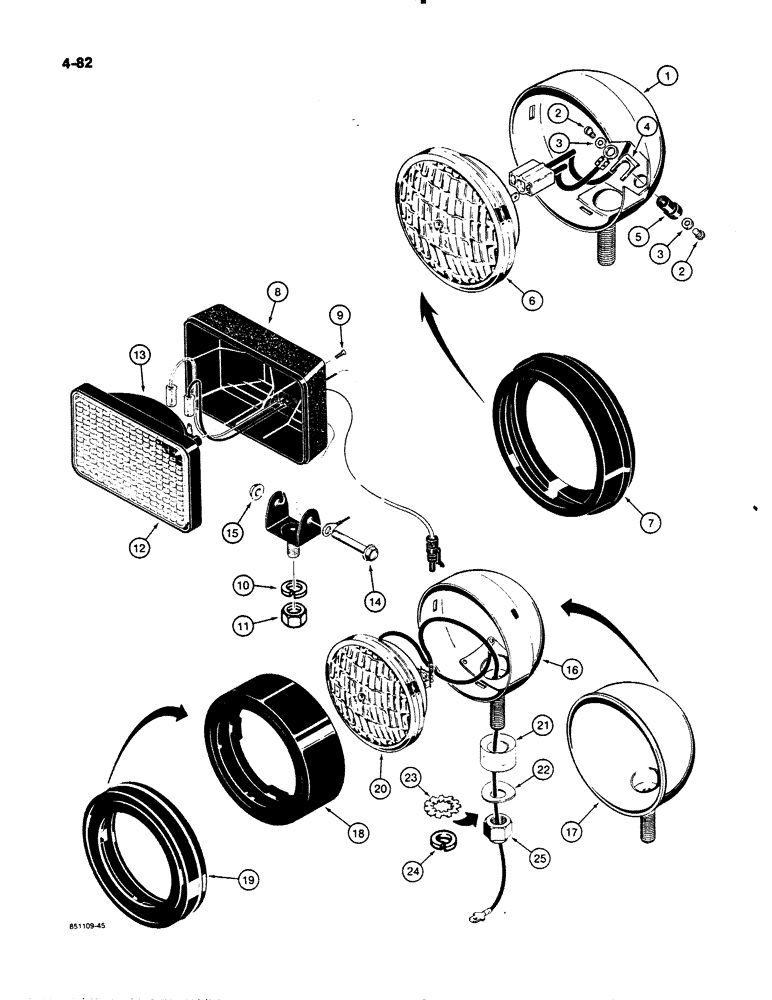

Запчасти Case W11B (4-082) - DRIVING AND FLOOD LAMPS, L79914 DRIVING LAMP - SEALED BEAM (04) - ELECTRICAL SYSTEMS

L79914

LIGHT

LAMP ASSEMBLY - driving, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- round head slotted, no. 8 NC x 1/4 inch

2шт.

3

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

4

10927

SPRING

- clip

1шт.

5

B50293

TERMINAL CONNECTOR

- screw

1шт.

6

A40636

LAMP

BULB - sealed beam, No 4480

1шт.

7

D37966

RETAINER

- lamp, rubber

1шт.

L115490

LAMP

ASSEMBLY - driving, Includes: Ref. 8 - 15

2шт.

8

NSS

NOT SOLD SEPARAT

SHELL - lamp, Start Serial: 9158252

1шт.

9

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 x 1/2", Start Serial: 9158252

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2", Start Serial: 9158252

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5, Start Serial: 9158252

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - lamp, Start Serial: 9158252

1шт.

13

N13101

LAMP

BULB - halogen, Start Serial: 9158252

1шт.

14

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

, Start Serial: 9158252

1шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated, Start Serial: 9158252

1шт.

L105765

INTERIOR LIGHT

LAMP ASSEMBLY - flood, cab, L105765 flood lamps, Includes: Ref. 16 - 25

2шт.

16

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 18 only, L105765 flood lamps

1шт.

17

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 19 only, L105765 flood lamps

1шт.

18

D82780

SEAL

RETAINER - lamp, rubber, locks to shell with three, L105765 flood lamps rubber tabs, if used, L105765 flood lamps

1шт.

19

N6160

LAMP

RETAINER - lamp, rubber, locks over shell flange, if used, L105765 flood lamps

1шт.

20

A42294

SEALED BEAM UNIT

LAMP - No. 4406, L105765 flood lamps

1шт.

21

D37048

BUSHING

SPACER - rubber, L105765 flood lamps

1шт.

22

D37049

WASHER

- special, L105765 flood lamps

1шт.

23

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used, L105765 flood lamps Ext-Int Tooth, 1/2"

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , L105765 flood lamps 1/2"

1шт.

25

129-165

JAM NUT,Jam, 1/2"-20, G5

L105765 flood lamps Jam, 1/2"-20, G5

1шт.
