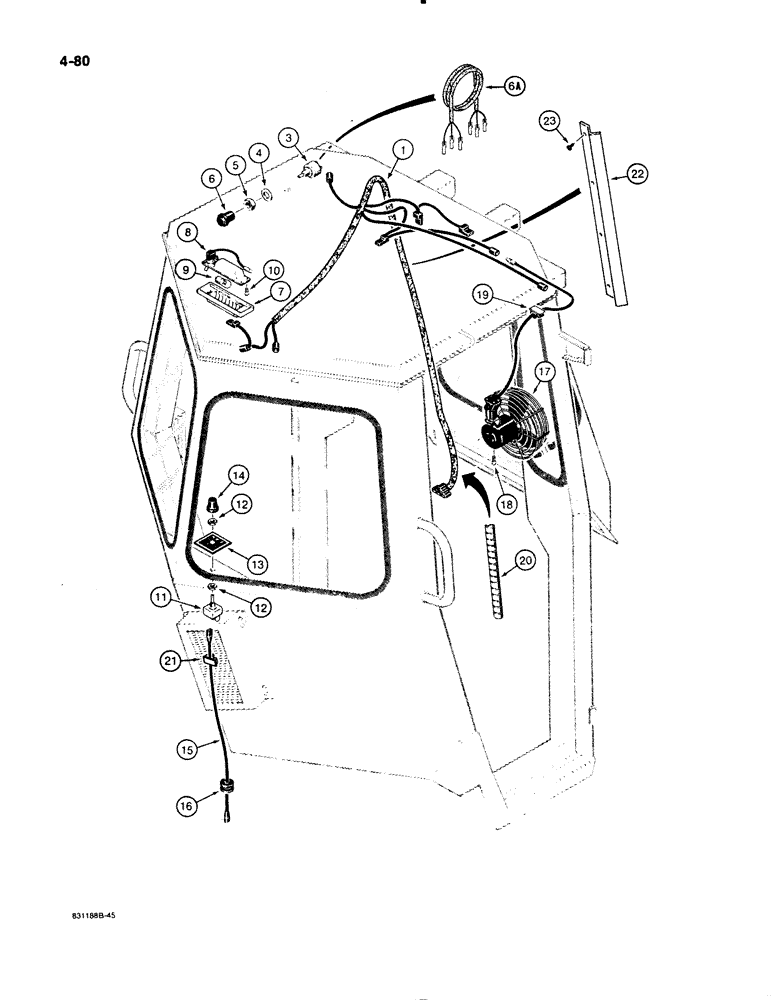

Запчасти Case W11B (4-080) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D80663
HARNESS
- cab, used on models, Serial Range: -9158252
1шт.
1
L115327
HARNESS
- cab, used on models, Start Serial: 9158252
1шт.
2
L76509
HARNESS
- canopy, used on models, not shown, Serial Range: -9158252
1шт.
2
L115314
HARNESS
- canopy, used on models, not shown, Start Serial: 9158252
1шт.
D70608
SWITCH
ASSEMBLY - front wiper, Includes: Ref. 3 - 6
1шт.
3
NSS
NOT SOLD SEPARAT
SWITCH - front wiper
1шт.
4
NSS
NOT SOLD SEPARAT
WASHER - flat
1шт.
5
NSS
NOT SOLD SEPARAT
NUT- hex
1шт.
6
NSS
NOT SOLD SEPARAT
KNOB - switch
1шт.
6a
S300947
HARNESS
- wiper switch to front wiper motor
1шт.
D80656
LIGHT
LAMP - dome, Includes: Ref. 7 and 8
1шт.
7
D83108
HUB CAP
LENS - lamp
1шт.
8
NSS
NOT SOLD SEPARAT
SWITCH AND BASE - lamp
1шт.
9
B50223
BULB
- No. 1003, dome lamp
1шт.
10
182-64
SCREW - slotted, No. 6 - 24 NF x 3/8"
4шт.
11
A42622
SWITCH
- blower
1шт.
12
129-164
JAM NUT,Hex, 7/16" - 20, Gr 5
Jam, 7/16"- 20, G5
2шт.
13
N8394
DECAL
- blower switch, can be square or cresent type, used on Orrville cab with rotary type door handle
1шт.
13
D300950
DECAL - blower switch, used on Sims cab with push button type door handle
1шт.
14
A42578
KNOB
- switch, service replacement
1шт.
15
D80659
ELECTRICAL WIRE
WIRE - switch
1шт.
16
D80660
GROMMET
- switch wire, used on Orrville cab with rotary type door handle
1шт.
16
S300956
GROMMET
- switch wire, used on Sims cab with push button type door handle
1шт.
17
L13468
FAN
- defroster, parts list Figure 4-98
1шт.
18
182-561
SCREW,Slotted Pan Hd, #10-24 x 3/4"
- pan head slotted, No. 10 NC x 3/4 inch
4шт.
19
L100659
CLIP
- wire
1шт.
20
L76540
LOOM
GUARD - harness to transmission control cable
1шт.
21
L54606
CLIP
- switch wire
1шт.
22
S300963
ELECTRICAL WIRE
COVER - protective, harness, used on Sims cab with push button type door handle
1шт.
23
187-1074
SCREW - slotted head, self-tapping, No. 10 x 1/2 inch
4шт.
Выбрано товаров: 30
