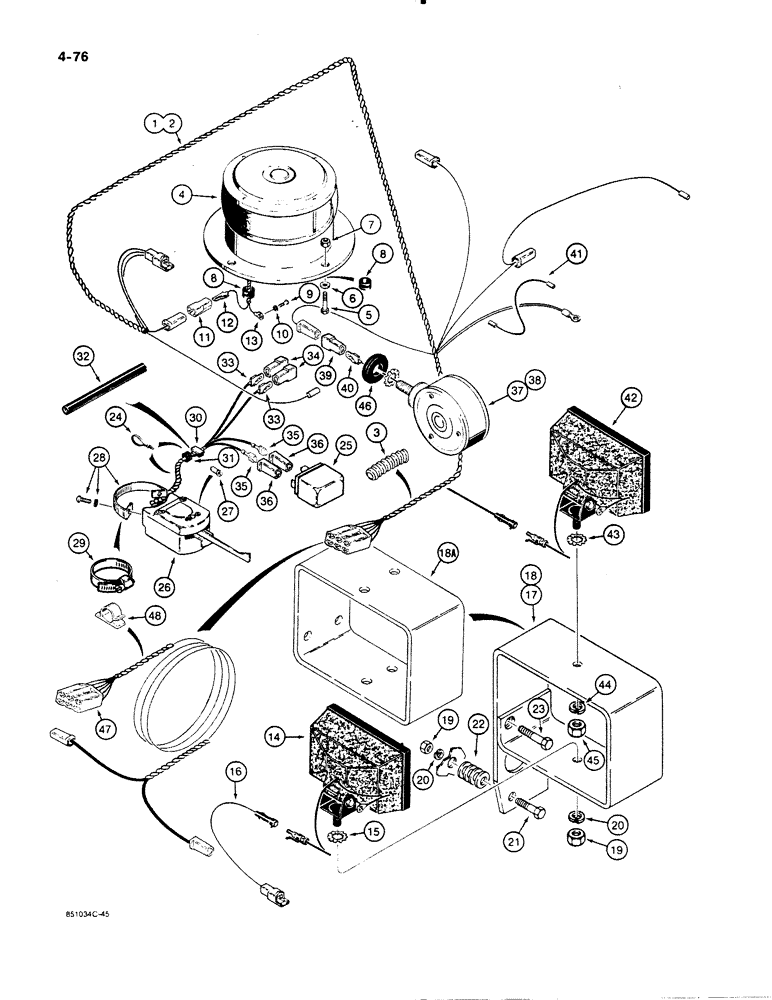

Запчасти Case W11B (4-076) - ELECTRICAL SYSTEM, FLOOD LAMPS, STOBE LAMP, AND TURN SIGNAL, (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - canopy, see Figure 4-81

1шт.

2

REF

INSTRUCTION

HARNESS - cab, see Figure 4-81

1шт.

3

L76540

LOOM

GUARD - harness to transmission control cable

1шт.

4

L115422

LAMP

- strobe, parts list Figure 4-89, must also order Refs. 11,12, and 13 below

1шт.

5

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

6

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

131-204

NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC, plated

4шт.

8

L77834

GROMMET

- bolt and wire

5шт.

9

187-845

SELF-TAP SCREW,Slotted Rd Hd, 1/4" x 1/2"

SCREW - self-tapping, 1/4"- 20 NC x 1/2"

1шт.

10

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

11

223-166

CONNECTOR, ELEC

COVER - terminal, female, use with L115422 strobe lamp, Ref. 4

1шт.

12

223-180

TERMINAL CONNECTOR,Male, 14 - 16

TERMINAL - connector, male, use with L115422

1шт.

13

223-52

FUSE

TERMINAL - eyelet, use with L115422 strobe lamp, Ref. 4

1шт.

14

L115227

LIGHT ASSY.

LAMP - flood, halogen, parts list Figure 4-84

2шт.

15

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch

2шт.

16

L115488

HARNESS

WIRE - jumper, driving lamps, if used, Serial Range: -9162788

2шт.

17

L115486

BRACKET

- lamp, right-hand, no longer used, replaced by L127741 bracket, Ref. 18A

1шт.

18

L115487

BRACKET

- lamp, left-hand, no longer used replaced by L127741 bracket, Ref. 18A

1шт.

18a

L127741

LARGE PLATE

BRACKET - lamp, right-hand and left-hand, replacement for both Refs. 17 and 18

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Lower mounting hole only, Used with Refs. 17 and 18 only Hex, 1/2"-13 x 1 3/4", G5

2шт.

22

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch, used with Refs. 17 and 18 only

10шт.

23

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Upper mounting hole only Hex, 1/2"-13 x 2", G5

2шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

L30946

FLASHER UNIT

FLASHER - turn signal

1шт.

L115233

SWITCH

- turn signal and flasher, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - switch, with wires

1шт.

27

B50213

BULB

- No. 53

1шт.

28

N8364

MOUNTING PARTS

CLAMP - includes hardware, no longer used, order (1) L100659 clip, Ref. 30 and (1) 214-256 clamp, Ref. 29

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch, turn signaL switch

1шт.

30

L100659

CLIP

- plastic

1шт.

31

L77834

GROMMET

- wire, no longer used, order Ref. 32 for service

1шт.

32

L77093

CONDUIT

Flex, 0.35" ID x 6.00", Slit, Wire

1шт.

33

223-180

TERMINAL CONNECTOR,Male, 14 - 16

TERMINAL - connector, male

2шт.

34

223-166

CONNECTOR, ELEC

COVER - terminal, female

2шт.

35

223-95

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - connector, female

2шт.

36

223-155

ELEC CONNECTOR,Female, 1 Pin

COVER - terminal, male

2шт.

37

L79648

LAMP

ASSEMBLY - turn signal and flasher, parts list Figure 4-91, no longer available, order (2) L117800 lamp assembly, Ref. 38, (2) 223-166 cover, Ref. 39, and (2) 223-180 terminal, Ref. 40

2шт.

38

L117800

LAMP

ASSEMBLY - turn signal and flasher, parts list Figure 4-91

2шт.

39

223-166

CONNECTOR, ELEC

COVER - terminal, female

2шт.

40

223-180

TERMINAL CONNECTOR,Male, 14 - 16

TERMINAL - connector, male

2шт.

41

L117467

HARNESS

WIRE - jumper, turn signal, use with L79648 lamp assembly, Ref. 37

2шт.

42

L115490

LAMP

ASSEMBLY - driving, halogen, parts list Figure 4-82

2шт.

43

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

4шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

45

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

46

L127120

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

- rubber, used with cab models only

2шт.

47

L127287

HARNESS

- operator compartment, highway lamps, export models, if used

1шт.

48

L54606

CLIP

CLAMP - harness, operator compartment, export models, if used

6шт.
