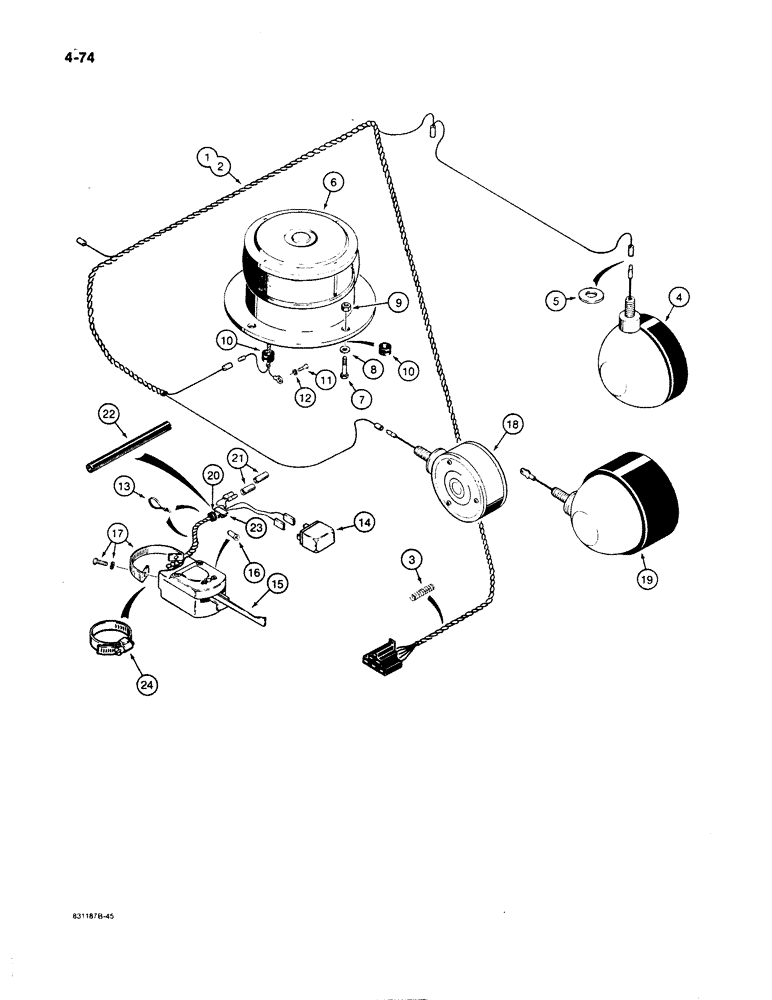

Запчасти Case W11B (4-074) - ELECTRICAL SYSTEM, FLOOD LAMPS, STROBE LAMP, AND TURN SIGNAL (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - canopy, if used, see Figure 4-81

1шт.

2

REF

INSTRUCTION

HARNESS - cab, if used, see Figure 4-81

1шт.

3

L76540

LOOM

GUARD - harness to transmission control cable

1шт.

4

D88684

LAMP

- flood, sealed beam, canopy models, parts list Figure 4-82

2шт.

5

95-8

WASHER,1/2"

flat 1/2"

2шт.

6

L101230

LAMP

- strobe, parts list Figure 4-88

1шт.

7

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

8

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

9

131-204

NUT,1/4"-20

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

10

L77834

GROMMET

- bolt and wire

5шт.

11

187-845

SELF-TAP SCREW,Slotted Rd Hd, 1/4" x 1/2"

SCREW - self-tapping, 1/4" - 20 NC x 1/2"

1шт.

12

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

14

L30946

FLASHER UNIT

FLASHER - turn signal

1шт.

L61326

SWITCH

- turn signal, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY AND WIRES - switch

1шт.

16

B50213

BULB

- switch, No. 53

1шт.

17

N8364

MOUNTING PARTS

KIT - clamp and hardware, no longer used, order (1) L100659 clip, Ref. 23, (1) 214-256 clamp, Ref. 24

1шт.

18

L79648

LAMP

- turn signal, parts list Figure 4-90

2шт.

19

REF

INSTRUCTION

LAMP - flood, cab models, parts list Figure 4-84

2шт.

20

L77834

GROMMET

- wire, no longer used, order Ref. 22 for service

2шт.

21

223-125

TUBE

SHRINK TUBING - turn signal to harness connection

2шт.

22

L77093

CONDUIT

Flex, 0.35" ID x 6.00", Slit, Wire

1шт.

23

L100659

CLIP

- plastic

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

1шт.
