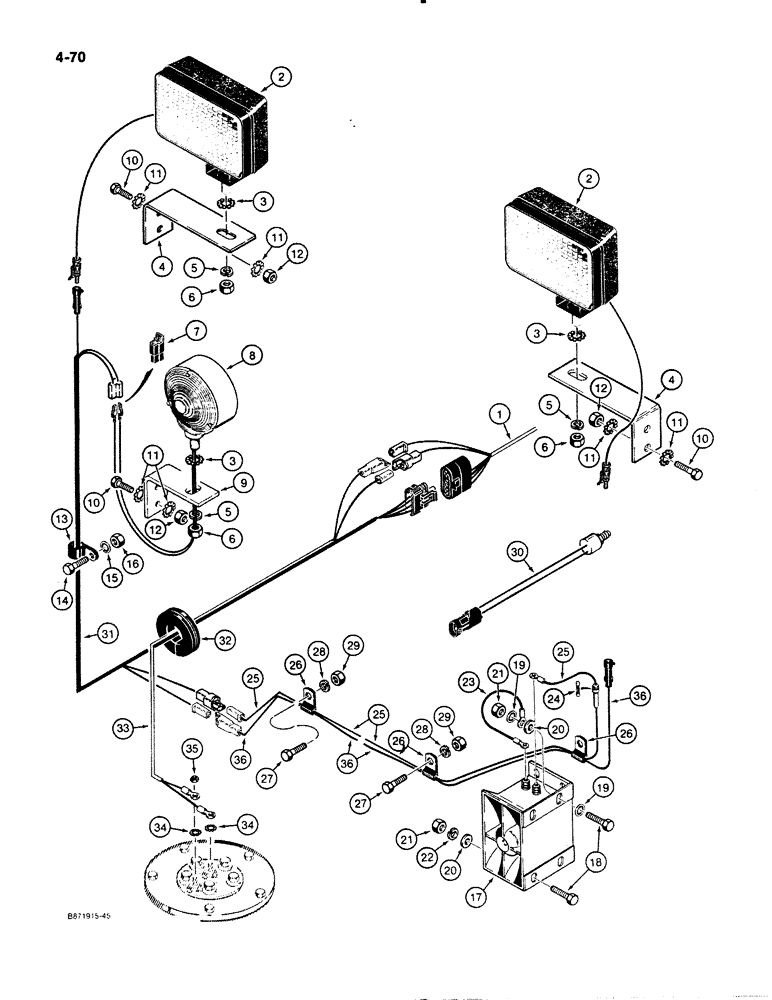

Запчасти Case W11B (4-070) - REAR LAMPS AND BACKUP ALARM, P.I.N. 9158252 THROUGH 9162787 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - rear electrical, see Figure 4-26 and Figure 4-29

1шт.

2

L115227

LIGHT ASSY.

LAMP - flood, halogen, parts list Figure 4-84

1-2шт.

3

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2-3шт.

4

L123720

BRACKET

- flood lamp

1-2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2-3шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2-3шт.

7

223-173

CONNECTOR, ELEC

CONNECTOR - female

1шт.

8

REF

INSTRUCTION

LAMP - stop and tail, see Figure 4-87 for correct lamp and component parts

1шт.

9

L76559

BRACKET

- stop and tail lamp

1шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4-6шт.

11

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

8-12шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4-6шт.

13

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness

1шт.

14

113-317

SCREW,Locking, 7/16"-14 x 1 1/4", G8

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

Ref. 14A USE PART # 111-317

1шт.

15

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

L109087

HOUSING

ALARM - backup, rectangular type

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

20

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

23

L115710

HARNESS

WIRE - ground

1шт.

24

223-26

FUSE,5 Amp, Type 3AG

- 5 amp, 3AG

1шт.

25

L115698

HARNESS

WIRE -, Serial Range: harness-alarm

1шт.

26

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- harness

3шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

28

492-11038

LOCK WASHER,3/8"

3шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

30

L116235

IGNITION SWITCH

SWITCH - backup alarm

1шт.

31

L115104

HARNESS

- rear lamps

1шт.

32

L53783

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- rear lamp harness

1шт.

33

L115906

HARNESS

- fuel sender

1шт.

34

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

35

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

36

L115489

HARNESS

WIRE - harness to optional flood lamp

1шт.
