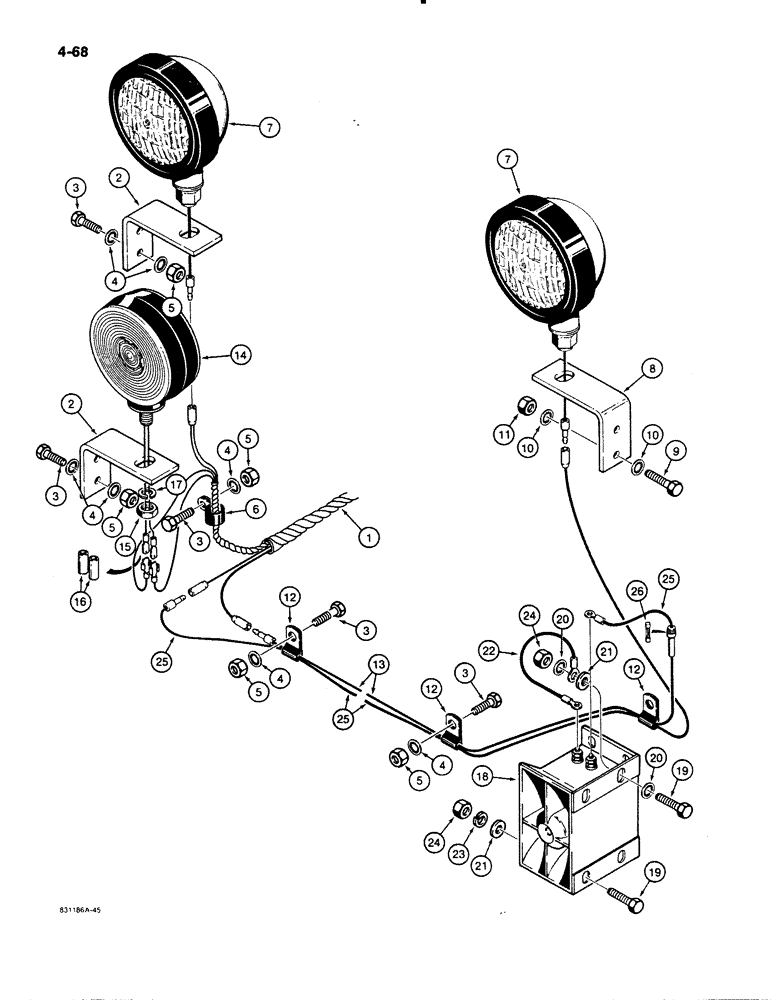

Запчасти Case W11B (4-068) - ELECTRICAL SYSTEM, REAR LAMPS AND BACKUP ALARM, BEFORE P.I.N 9158252 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - rear electrical, see Figures 4-18 - 4-24.

1шт.

2

L76559

BRACKET

- lamp

2шт.

3

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT - hex head, 3/8" - 16 NC x 1", plated

5-8шт.

4

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Replaces regular lock washer used in production on some models Int Tooth, 3/8"

5-8шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5-8шт.

6

49859

CLAMP

- harness

1шт.

7

D88684

LAMP

- flood, sealed beam, parts list Figure 4-84

1-2шт.

8

L76559

BRACKET

- lamp

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

10

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

80049853

YOKE

- harness

3шт.

13

L76802

ELECTRICAL WIRE

WIRE - harness to right-hand lamp, if used

1шт.

14

REF

INSTRUCTION

LAMP - stop and tail, see Figure 4-86 for correct lamp and component parts

1шт.

15

129-125

NUT,1/2"-20, G5

1шт.

16

L78495

SLEEVE,0.19" ID x 1.5" L

SHRINK TUBING - lamp to harness connection

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

L109087

HOUSING

ALARM - backup, rectangular type

1шт.

19

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

20

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

21

495-11034

WASHER,5/16", SAE

flat 5/16", SAE

2шт.

22

L113265

HARNESS

WIRE - alarm ground

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

L113266

HARNESS

WIRE - harness to backup alarm

1шт.

26

223-26

FUSE,5 Amp, Type 3AG

- 5 amperes, 3AG

1шт.
