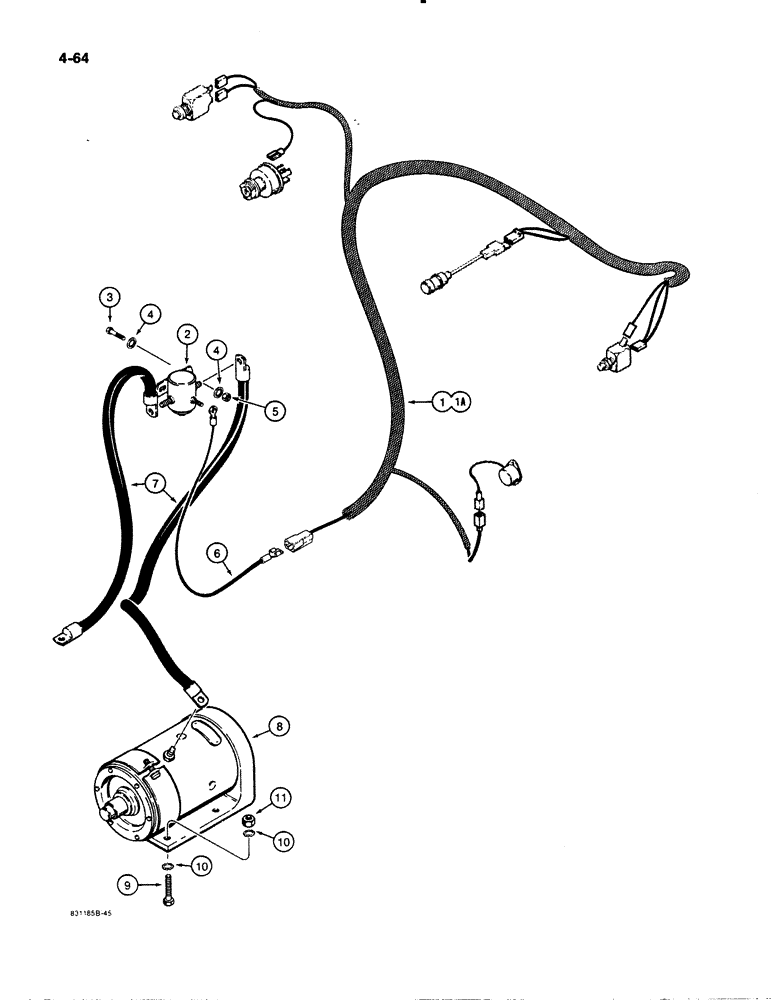

Запчасти Case W11B (4-064) - ELECTRICAL SYSTEM, STANDARD AUXILIARY STEERING (04) - ELECTRICAL SYSTEMS

1

L106421

HARNESS

- auxiliary steering, used on models, Serial Range: -9158252

1шт.

For auxiliary steering switch, warning lamp, buzzer and circuit breaker, see instrument panel parts on Figures 4-52 - 4-62.

1шт.

1a

L115690

HARNESS

- auxiliary steering, used on models, Start Serial: 9158252

1шт.

For auxiliary steering switch, warning lamp, buzzer and circuit breaker, see instrument panel parts on Figures 4-52 - 4-62.

1шт.

2

L109874

SOLENOID

- auxiliary steering

1шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch

4шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

6

L100822

ELECTRICAL WIRE

WIRE - to solenoid, used on models, Serial Range: -9158252

1шт.

6

L115689

ELECTRICAL WIRE

WIRE - to solenoid, used on models, Start Serial: 9158252

1шт.

7

L78328

CABLE

- to auxiliary steering motor

2шт.

8

L78437

MOTOR

- auxiliary steering, parts list Figure 5-15

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

10

193-53

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

8шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
