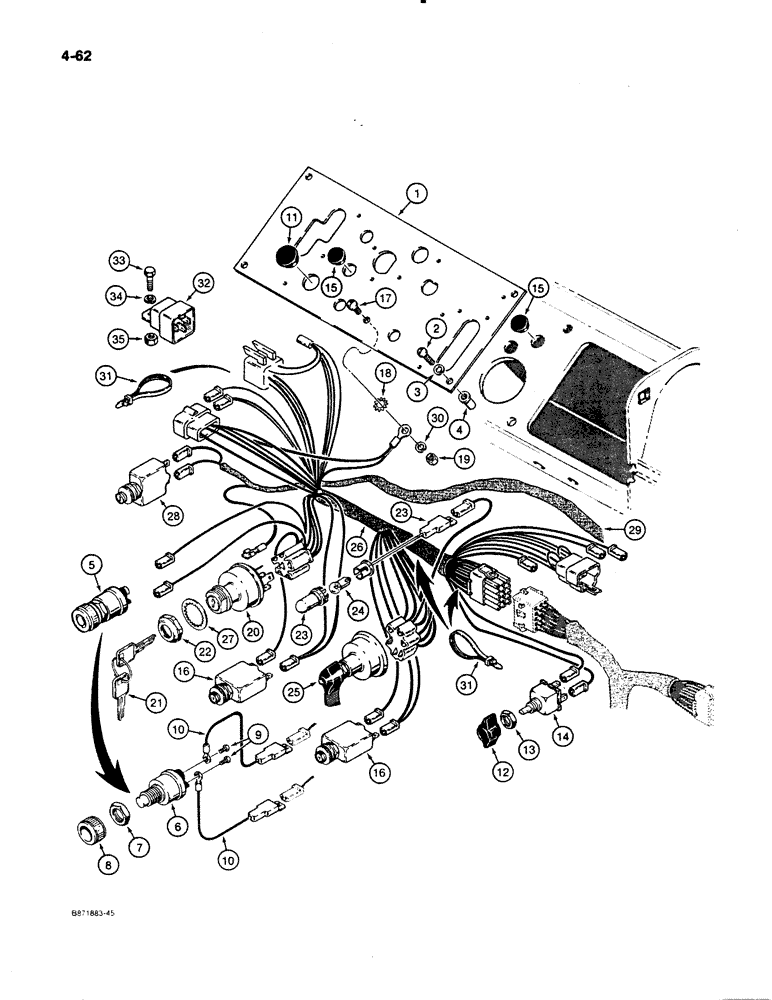

Запчасти Case W11B (4-062) - ELECTRICAL SYSTEM, LEFT-HAND INSTRUMENT PANEL, P.I.N. 9162788 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115894

PANEL, SIDE

INSTRUMENT PANEL - left-hand

1шт.

2

182-149

SCREW,Slotted Pan Hd, #10-32 x 1"

- slotted, No. 10 - 32 NC x 1"

4шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

4

L60362

RING NUT

- special, No. 10 - 32 NC

4шт.

5

L72776

SWITCH

- cold start, if used, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

7

D73741

NUT

- hex, special

1шт.

8

H275784

JAM NUT

- special

1шт.

9

173-93

BOLT,Sl Rnd Hd, #10 - 24 x 1/4"

SCREW - round head, No. 10 - 32 NF x 1/4"

2шт.

10

L114446

HARNESS

WIRE - harness to cold start switch

2шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16", if used

1шт.

12

L74694

KNOB

- strobe lamp switch, if used

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- strobe lamp switch, if used

1шт.

14

L70872

SWITCH

- strobe lamp, if used

1шт.

15

353-404

PLUG,Dome, .500" hole, Nylon

(13 mm) Dome, .500" hole, Nylon

4шт.

16

L76929

BREAKER

CIRCUIT BREAKER - 12 amperes

2шт.

17

169-97

SCREW,Sl Fil Hd, #10 - 24 x 1/2"

- slotted, No. 10 - 24 NC x 1/2"

1шт.

18

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

19

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

21

A77313

SET OF 2 KEYS

KEY - ignition; metal without padding

1шт.

22

A77314

NUT

- mounting

1шт.

L116285

LIGHT

LAMP ASSEMBLY - instrument panel, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

BODY AND LENS - lamp

1шт.

24

A22349

BULB

- No. 363

1шт.

25

L55654

SWITCH

- lamp

1шт.

26

L118020

HARNESS

- left-hand instrument

1шт.

27

193-118

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1"

1шт.

28

L76726

BREAKER

CIRCUIT BREAKER - auxiliary steering, 3 amperes, if used

1шт.

29

L115690

HARNESS

- auxiliary steering, if used

1шт.

30

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

32

A167492

RELAY

- flood lamp

1шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
