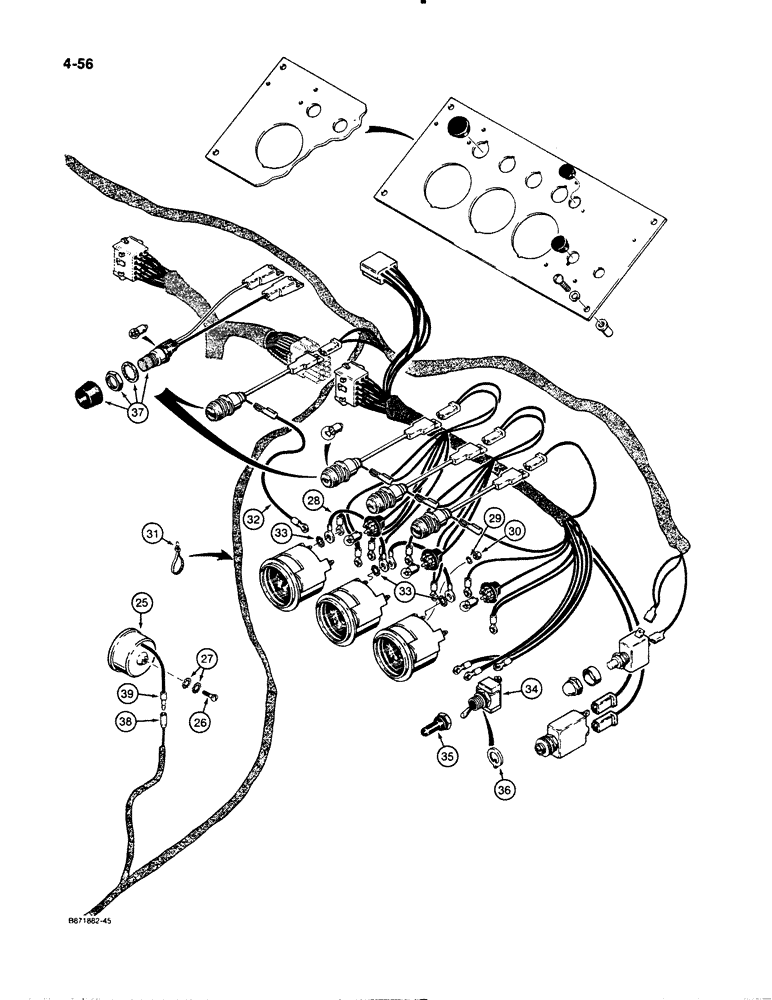

Запчасти Case W11B (4-056) - ELECTRICAL SYSTEM, RIGHT-HAND INSTRUMENT PANEL, P.I.N. 9158252 AND AFTER (04) - ELECTRICAL SYSTEMS

25

L103667

BUZZER

- auxiliary steering, no longer available, order (1) L36195 kit, (1) 223-179 terminal, Ref. 39, and (1) 223-166 connector, Ref. 38

1шт.

26

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, pan head, slotted, no. 8 NC x 1/2 inch, used with Ref. 25, if used

1шт.

27

193-41

WASHER,Ext-Int Tooth, #8

LOCK, , Used with Ref. 25 Ext-Int Tooth, #8

2шт.

28

A18457

ELECTRICAL WIRE

WIRE - ground, converter and water temperature gauge, service, white, replaces black wire

2шт.

29

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , Replaces lock washer used in production on some models Ext-Int Tooth, #6

7шт.

30

129-15

NUT,#6-32

7шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

32

L115398

ELECTRICAL WIRE

WIRE - ground, auxiliary steering warning lamp to fuel level gauge, if used

1шт.

33

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

3шт.

34

L101999

SWITCH

- loader detent

1шт.

35

L101998

BOOT

- loader detent switch

1шт.

36

L102821

LOCK WASHER

- locking

1шт.

37

L118382

LAMP

ASSEMBLY - warning, auxiliary steering, use on models with L118414 panel, if used, includes (1) B50213 bulb, Ref. 11

1шт.

38

223-166

CONNECTOR, ELEC

CONNECTOR - female

1шт.

39

223-179

FITTING

TERMINAL - male

1шт.

L36195

KIT

- auxiliary steering buzzer, contains (1) D126995 buzzer, (1) 163-27 machine screw, (1) 193-5 internal tooth lock washer, (1) L76745 wire, (1) L78841 plug, and (1) L78843 pin

1шт.
