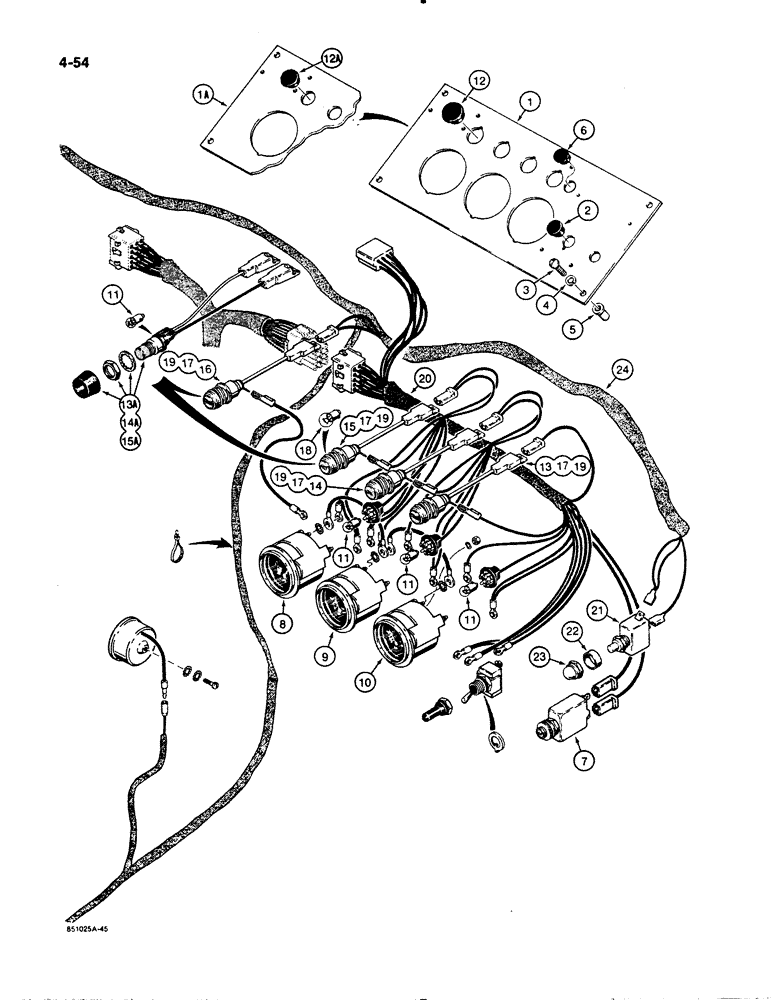

Запчасти Case W11B (4-054) - ELECTRICAL SYSTEM, RIGHT-HAND INSTRUMENT PANEL, P.I.N. 9158252 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L115895

PANEL, SIDE

PANEL - instrument, right-hand, Serial Range: -9162887

1шт.

Ref. 1-1 PANEL FOR FUNK UNIT

1шт.

1a

L118414

PANEL

- instrument, right-hand, Start Serial: 9162888

1шт.

Ref. 1A-1 PANEL FOR CLARK UNIT

1шт.

2

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

3

182-149

SCREW,Slotted Pan Hd, #10-32 x 1"

- slotted, No. 10 - 32 NC x 1"

4шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

5

L60362

RING NUT

- special, No. 10 x 32 NC

4шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

(13 mm) Dome, .500" hole, Nylon

1шт.

7

L79777

BREAKER

CIRCUIT BREAKER - 20 amperes, used on models with cab

1шт.

8

L78580

GAUGE

- fuel level

1шт.

9

L78590

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

L78591

GAUGE

- converter temperature

1шт.

11

B50213

BULB

- No. 53

7шт.

12

353-407

PLUG,Dome, .687" hole, Nylon

- used on models with L115895 panel and without auxiliary steering lamp

1шт.

12a

353-408

PLUG,Dome, .750" hole, Nylon

- used on models with L118414 panel and without auxiliary steering lamp

1шт.

13

L74019

LIGHT

LAMP - warning, clutch pressure, used on models with L115895 panel

1шт.

13a

L109100

LAMP

- warning, clutch pressure, used on models with L118414 panel, includes (1) B50213 bulb, Ref. 11

1шт.

14

H358945

LIGHT

LAMP - warning, engine oil pressure, used on models with L115895 panel

1шт.

14a

L109101

LAMP

- warning, engine oil pressure, used on models with L118414 panel, includes (1) B50213 bulb, Ref. 11

1шт.

Ref. 14A PART # L109102 LAMP PER TS # 579-90

1шт.

15

H352336

LIGHT

LAMP - warning, alternator, used on models with L115895 panel

1шт.

15a

L109102

LAMP

- warning, alternator, used on models with L118414 panel, includes (1) B50213 bulb, Ref. 11

1шт.

Ref. 15A PART # L109101 LAMP PER TS # 579-90

1шт.

16

H371849

INDICATOR

WARNING LAMP ASSEMBLY - auxiliary steering, used on model with L115895 panel, if used, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

LENS - all warning lamps used on models with L115895 panel

1шт.

18

A24354

BULB

- No. 1895R, all warning lamps used on models with L115895 panel

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING AND BODY - all warning lamps used on models with L115895 panel

1шт.

20

L115437

HARNESS

- right-hand instrument

1шт.

21

L79996

SWITCH

- push button, auxiliary steering, if used

1шт.

22

A29701

BUSHING

SPACER - activator, release 1/4 inch

1шт.

23

L100041

BOOT

COVER - rubber

1шт.

24

L115690

HARNESS

- auxiliary steering, if used

1шт.
