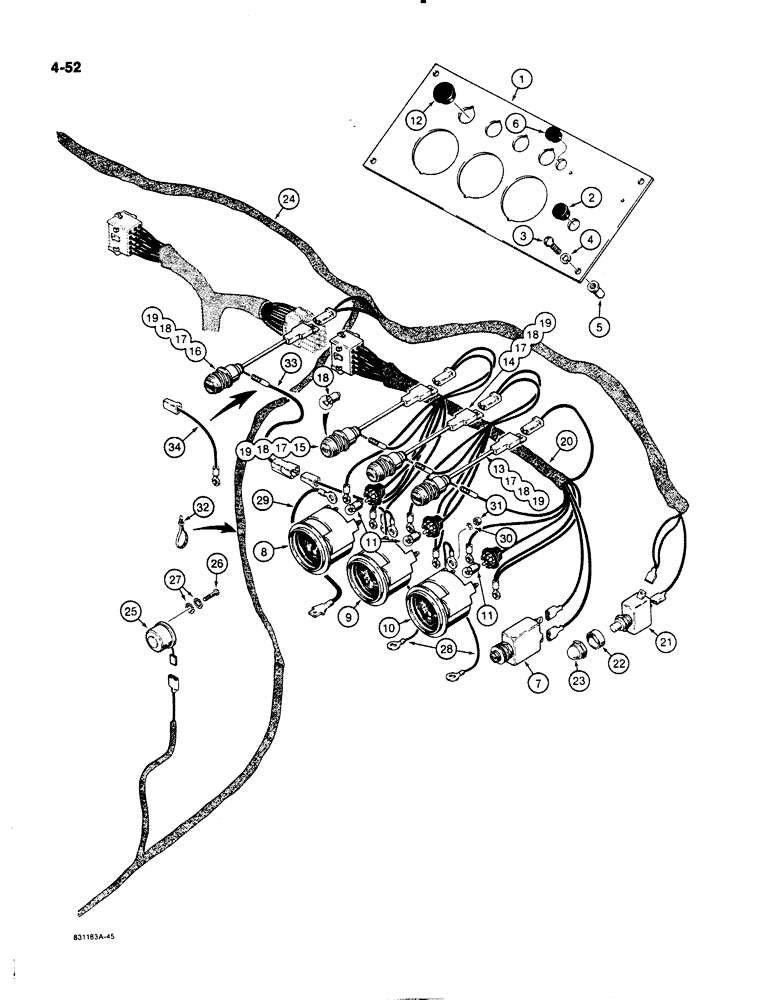

Запчасти Case W11B (4-052) - ELECTRICAL SYSTEM, RIGHT-HAND INSTRUMENT PANEL, BEFORE P.I.N 9158252 (04) - ELECTRICAL SYSTEMS

1

L104322

PANEL

INSTRUMENT PANEL - right-hand

1шт.

2

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

3

182-149

SCREW,Slotted Pan Hd, #10-32 x 1"

- slotted, No. 10 - 32 NC x 1"

4шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

5

L60362

RING NUT

- special, No. 10 x 32 NC

4шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

(13 mm) Dome, .500" hole, Nylon

1шт.

7

L79777

BREAKER

CIRCUIT BREAKER - 20 amperes, used on models with cab

1шт.

8

L78580

GAUGE

- fuel level

1шт.

9

L78590

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

L78591

GAUGE

- converter temperature

1шт.

11

B50213

BULB

- No. 53

3шт.

12

353-407

PLUG,Dome, .687" hole, Nylon

- used on models without auxiliary steering lamp

1шт.

13

L74019

LIGHT

WARNING LAMP - clutch pressure

1шт.

14

H358945

LIGHT

WARNING LAMP - engine oil pressure

1шт.

15

H352336

LIGHT

WARNING LAMP - alternator

1шт.

16

H371849

INDICATOR

WARNING LAMP - auxiliary steering, if used, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

LENS - all warning lamps

1шт.

18

A24354

BULB

- No. 1895R, all warning lamps

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING AND BODY - all warning lamps

1шт.

20

L79115

HARNESS

- right-hand instrument

1шт.

21

L79996

SWITCH

- push, auxiliary steering, if used

1шт.

22

A29701

BUSHING

SPACER - activator, release 1/4 inch

1шт.

23

L100041

BOOT

COVER - rubber

1шт.

24

L106421

HARNESS

- auxiliary steering, if used

1шт.

25

L103667

BUZZER

- auxiliary steering, if used

1шт.

26

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, pan head, slotted, no. 8 NC x 1/2 inch, used with Ref. 25 only, if used

1шт.

27

193-41

WASHER,Ext-Int Tooth, #8

LOCK, , Used with Ref. 25 only Ext-Int Tooth, #8

2шт.

28

A18457

ELECTRICAL WIRE

WIRE - ground, converter and water temperature gauge, service, white, replaces black wire

2шт.

29

L100452

ELECTRICAL WIRE

WIRE - ground, fuel gauge

1шт.

30

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , Replaces lock washer used in production on some models Ext-Int Tooth, #6

7шт.

31

129-15

NUT,#6-32

7шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

L106420

ELECTRICAL WIRE

WIRE - ground, auxiliary steering warning lamp to instrument panel harness, if used

1шт.

34

L115398

ELECTRICAL WIRE

WIRE - ground, auxiliary steering warning lamp to fuel gauge terminal, if used

1шт.
