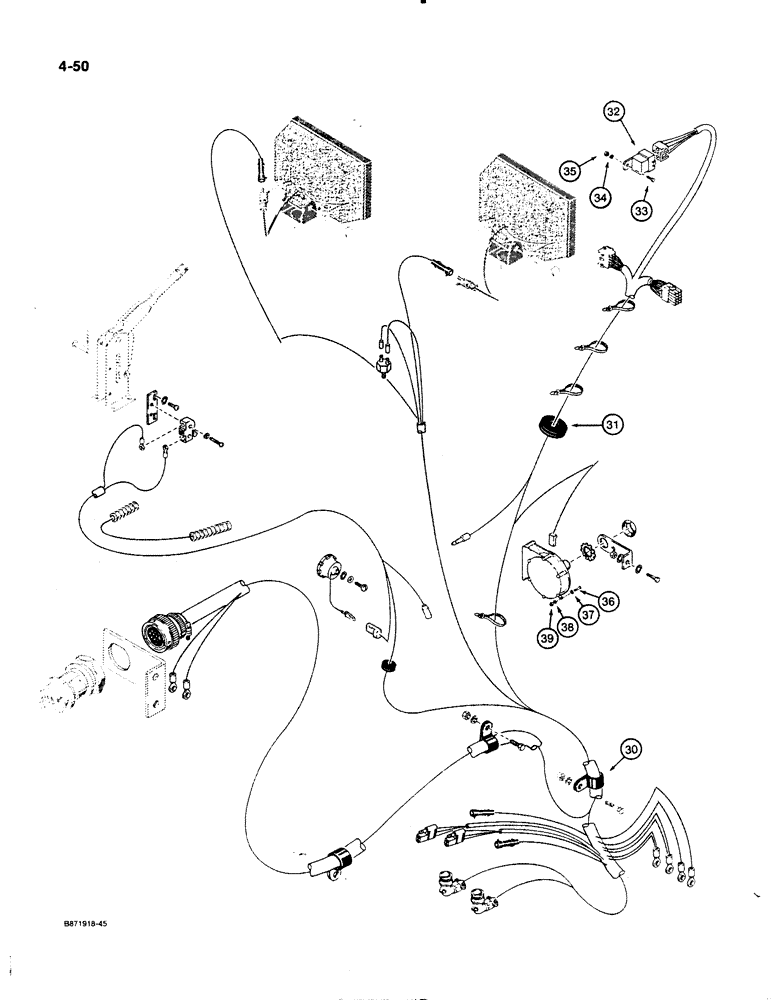

Запчасти Case W11B (4-050) - FRONT ELECTRICAL HARNESS, P.I.N. 9164337 AND AFTER (04) - ELECTRICAL SYSTEMS

30

49836

CLAMP

- harness, uses control valve mounting hardware

1шт.

31

L77823

GROMMET

- rubber

1шт.

32

A167492

RELAY

- horn

1шт.

33

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

36

169-97

SCREW,Sl Fil Hd, #10 - 24 x 1/2"

MACHINE SCREW - fillister head, No. 10 - 24 NC x 1/2"

1шт.

37

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

38

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

39

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.
