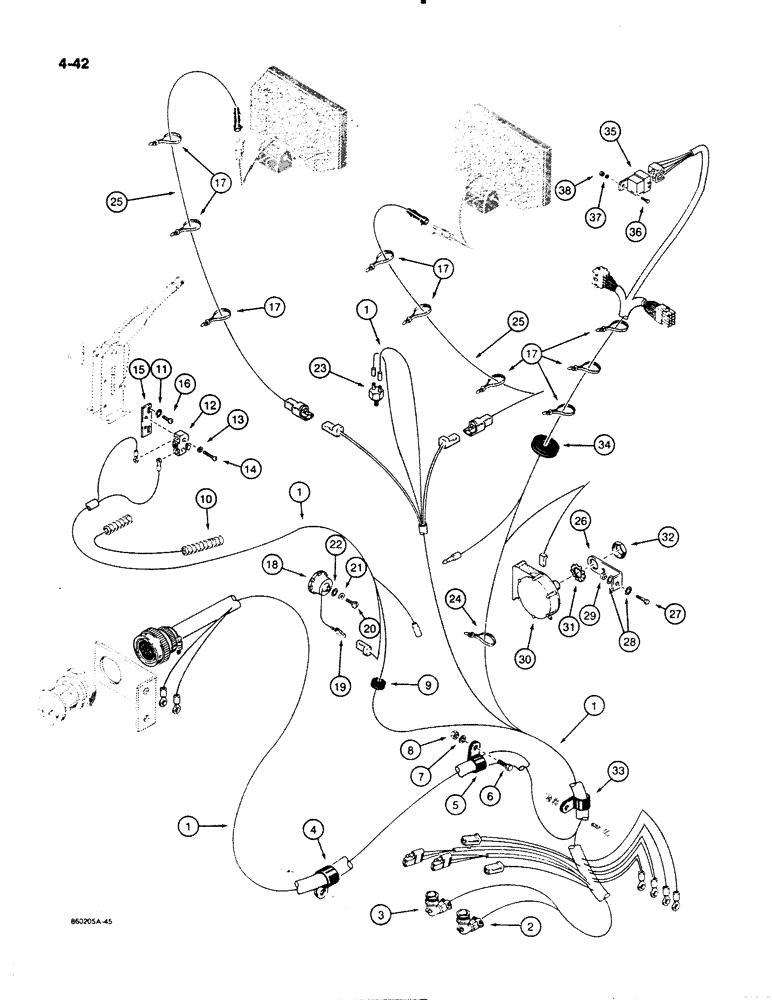

Запчасти Case W11B (4-042) - FRONT ELECTRICAL HARNESS, P.I.N. 9158252 THROUGH 9162787 (04) - ELECTRICAL SYSTEMS

1

L117183

HARNESS

- front electrical, Includes: Ref. 2 and 3

1шт.

2

N7321

ROD, CONNECTING

CONNECTOR - two pin

1шт.

3

N7322

CONNECTOR, ELEC

CONNECTOR - four pin

1шт.

4

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- front harness, uses hydraulic pump mounting hardware

1шт.

5

R14668

CLAMP

- harness retaining

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

9

A37353

GROMMET

- rubber

1шт.

10

L115938

CONDUIT

- electric

1шт.

11

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

12

L54683

SWITCH

- parking brake

1шт.

13

192-105

LOCK WASHER,#6

NUT - hex, 1/2 inch NC

4шт.

14

187-1719

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1"

SCREW - pan head, self-tapping, No. 6 - 32 NC x 1"

2шт.

15

L77828

PLATE

- switch mounting

1шт.

16

187-1715

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1/2"

SCREW - pan head, self-tapping, No. 6 - 32 NC x 1/2"

2шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

23шт.

18

L115962

ALARM

- parking brake

1шт.

19

223-166

CONNECTOR, ELEC

CONNECTOR - female

1шт.

20

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

- machine, pan head slotted, no. 8 NC x 1/2 inch

1шт.

21

195-510

WASHER,#8

- plain, 3/16 x 7/16 inch

1шт.

22

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

23

S49603

SWITCH

- stop light

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

L116361

HARNESS

WIRE - harness to front flood lamp

2шт.

26

L73799

BRACKET

- horn

1шт.

27

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

30

S203189

HORN

- electric

1шт.

31

193-122

WASHER - internal-external tooth lock, 7/8", plated

1шт.

32

L30866

LOCK NUT

- 7/8"

1шт.

33

49836

CLAMP

- harness, uses control valve mounting hardware

1шт.

34

L77823

GROMMET

- rubber

1шт.

35

A167492

RELAY

- horn

1шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
