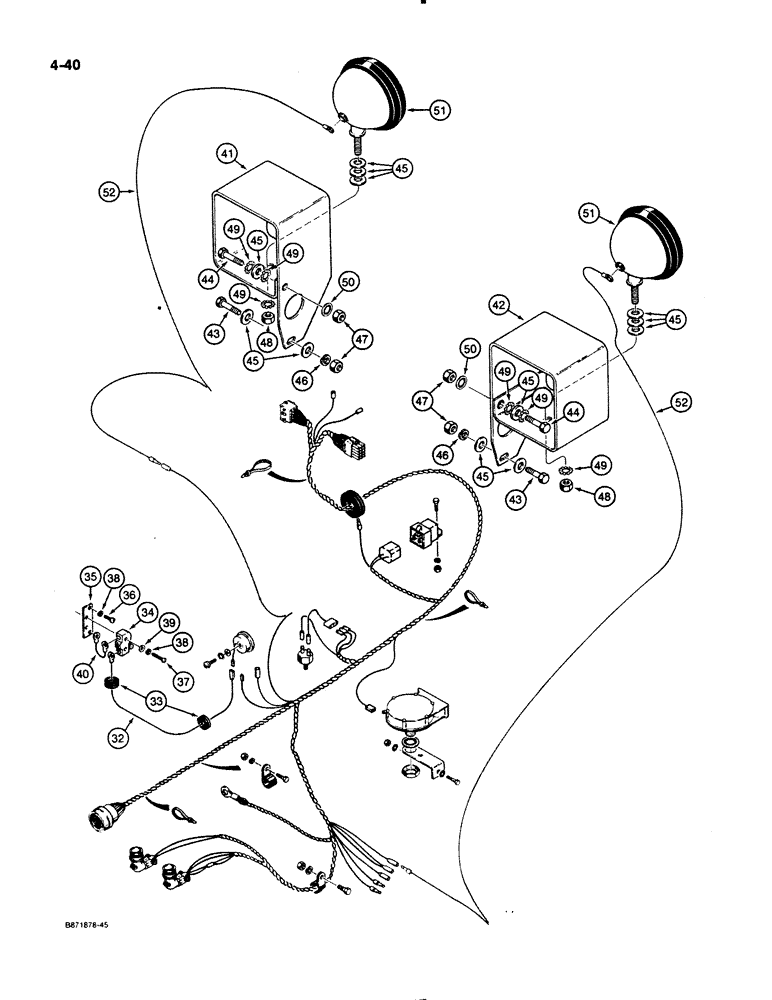

Запчасти Case W11B (4-040) - ELECTRICAL SYSTEM, FRONT ELECTRICAL HARNESS, BEFORE P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS

32

L76745

ELECTRICAL WIRE

WIRE - buzzer

1шт.

33

A37353

GROMMET

- buzzer wire

2шт.

34

D134622

SWITCH

- parking brake

1шт.

35

L77828

PLATE

- switch mounting

1шт.

36

187-1715

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1/2"

SCREW - self-tapping, No. 6 - 32 NC x 1/2"

2шт.

37

187-1719

SELF-TAP SCREW,Slotted Pan Hd, #6 x 1"

SCREW - self-tapping, No. 6 - 32 NC x 1"

2шт.

38

192-105

LOCK WASHER,#6

NUT - hex, 1/2 inch NC

4шт.

39

195-507

WASHER,#6

- flat, No. 6

2шт.

40

L76745

ELECTRICAL WIRE

WIRE - ground

1шт.

41

L79955

BRACKET

- left-hand

1шт.

42

L79954

BRACKET

- right-hand

1шт.

43

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

44

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

45

95-8

WASHER,1/2"

flat 1/2"

1шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

47

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

48

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

49

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

6шт.

50

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

51

L79914

LIGHT

LAMP - driving, parts list Figure 4-82

2шт.

52

L100883

ELECTRICAL WIRE

WIRE - driving lamp

2шт.
