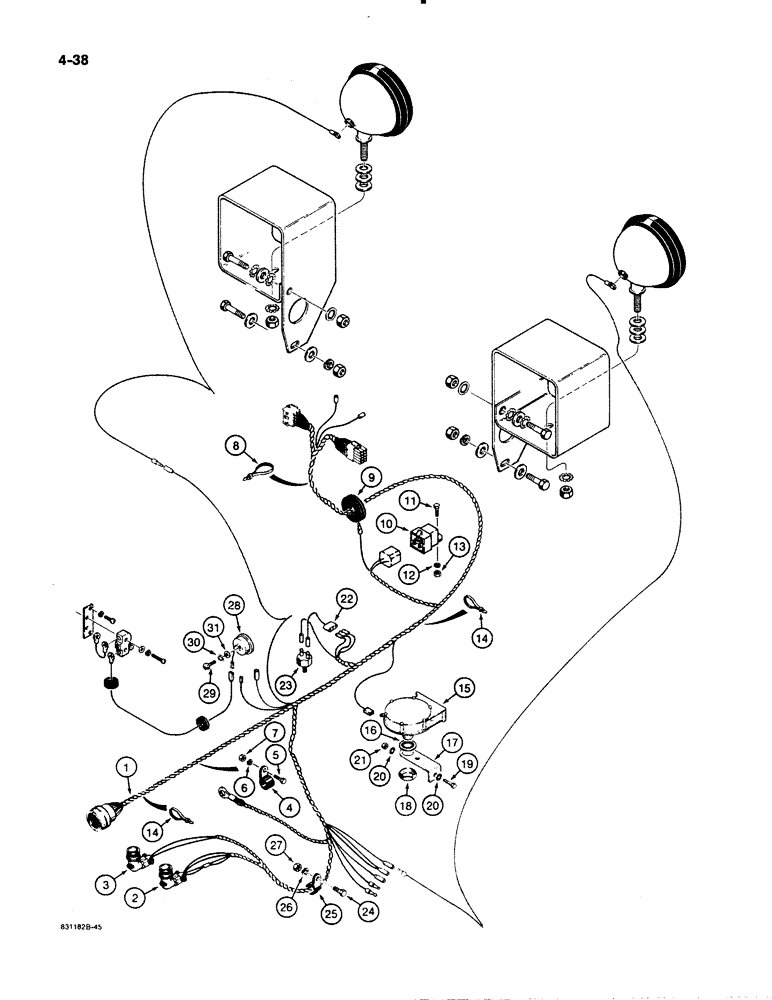

Запчасти Case W11B (4-038) - ELECTRICAL SYSTEM, FRONT ELECTRICAL HARNESS, BEFORE P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L113956
HARNESS
- front electrical, Includes: Ref. 2 and 3
1шт.
2
N7321
ROD, CONNECTING
CONNECTOR - two pin
1шт.
3
N7322
CONNECTOR, ELEC
CONNECTOR - four pin
1шт.
4
R14668
CLAMP
- harness retaining
1шт.
5
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
6
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
7
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
8
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
2шт.
9
L77823
GROMMET
- rubber
1шт.
10
A167492
RELAY
- horn
1шт.
11
163-12
SCREW,Hex, #10 - 24 x 3/4"
MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4"
1шт.
12
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
1шт.
13
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10-24
1шт.
14
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
15
D123205
HORN
- electrical
1шт.
16
193-36
LOCK WASHER,Int Tooth, 7/8"
WASHER, LOCK, Int Tooth, 7/8"
1шт.
17
L73799
BRACKET
- horn
1шт.
18
L30866
LOCK NUT
- horn
1шт.
19
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
20
193-67
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, , Replaces regular lock washer used in production on some models Int Tooth, 5/16"
2шт.
21
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
22
L79085
ELECTRICAL WIRE
WIRE - harness to stop light switch
1шт.
23
S49603
SWITCH
- stop light
1шт.
24
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
25
49845
CLAMP
CLIP - retaining
1шт.
26
492-11038
LOCK WASHER,3/8"
1шт.
27
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
28
L103667
BUZZER
- brake warning
1шт.
29
182-510
SCREW,Sl Pan Hd, #8 - 32 x 1/2"
MACHINE SCREW - No. 8 - 32 NC x 1/2"
1шт.
30
193-191
WASHER - internal lock, no. 8, replaces regular lock washer used in production on some models
1шт.
31
195-510
WASHER,#8
- plain, 3/16 x 7/16 inch
1шт.
Выбрано товаров: 31
