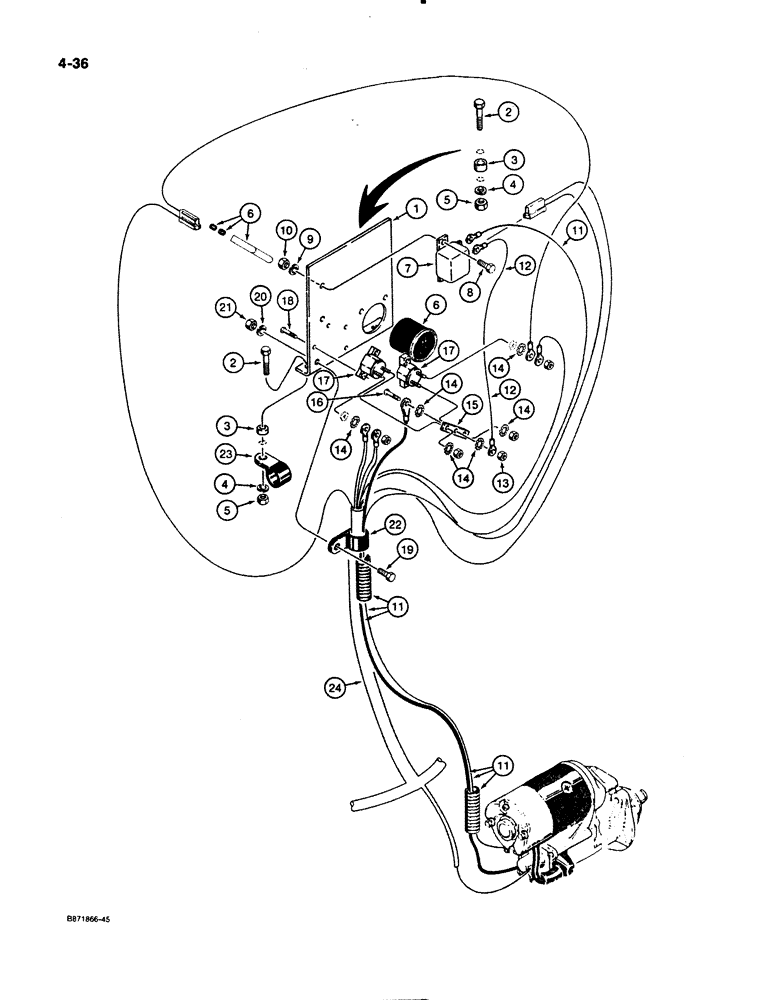

Запчасти Case W11B (4-036) - ELECTRICAL SYSTEM, REAR HARNESS TO RELAY PANEL, P.I.N. 9164337 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L118487

PANEL

- relay mounting

1шт.

2

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

3

G11271

SPACER

- relay mounting bracket

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

L118551

HOURMETER

GAUGE - hourmeter

1шт.

7

L115882

RELAY

- switch, 75 ampere

1шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

11

L114241

CABLE

WIRE -, Serial Range: relay-starter

1шт.

12

L114058

HARNESS

WIRE - jumper

1шт.

13

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

14

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

15

L114028

BAR

- circuit breaker

1шт.

16

182-126

SCREW,Sl Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 5/8"

1шт.

17

L114233

BREAKER

CIRCUIT BREAKER - 40 amperes

2шт.

18

182-90

SCREW,Slotted Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan head slotted, No. 8 -32 NC x 1"

4шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium c1osed, 3/4 inch diameter

1шт.

P/N R14668 will be used by manufacturing.

1шт.

23

49838

CLAMP

- mounting, tube

1шт.

24

L124574

HARNESS

- rear, electrical

1шт.
