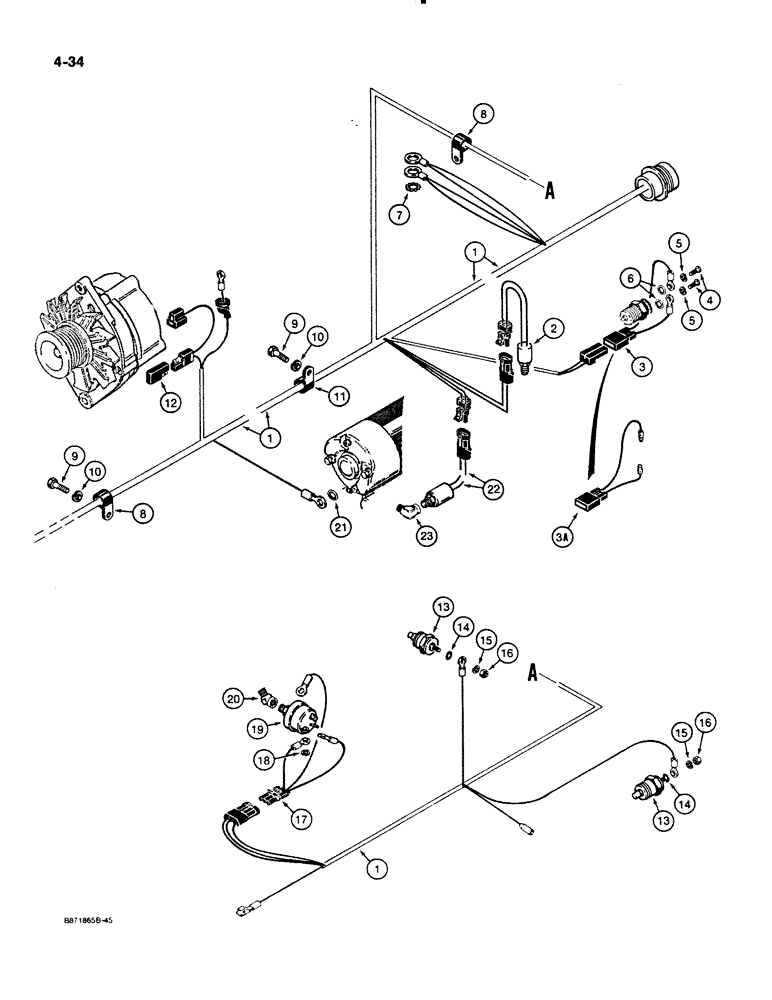

Запчасти Case W11B (4-034) - ELECTRICAL SYSTEM, REAR ELECTRICAL HARNESS TO ALTERNATOR, P.I.N. 9164337 AND AFTER (04) - ELECTRICAL SYSTEMS

1

L124574

HARNESS

- rear, electrical

1шт.

2

L116236

SWITCH

- clutch pressure

1шт.

3

L118468

HARNESS

JUMPER - neutral start switch, with eyelet terminals to E114399 switch, if used, see Ref. 16, Figure 6-60

1шт.

3a

L127410

CLOTHES

JUMPER - neutral start switch, with male bullets to S300424 switch, if used, see Ref. 16A, Figure 6-60

1шт.

4

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - pan head, slotted, No. 8 - 32 NC x 1/4"

2шт.

5

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

6

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

7

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

8

49836

CLAMP

- harness

2шт.

9

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

2шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

11

T42284

CLAMP

- harness

1шт.

12

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

1шт.

13

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - temperature

2шт.

14

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

129-37

NUT,#10-32

2шт.

17

L123675

HARNESS

JUMPER - oil pressure switch

1шт.

18

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

19

L112707

SWITCH

- oil pressure

1шт.

20

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

21

193-86

LOCK WASHER,7/16"

WASHER - internal tooth lock, , plated 7/16"

1шт.

22

L116235

IGNITION SWITCH

SWITCH - backup alarm

1шт.

23

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.
