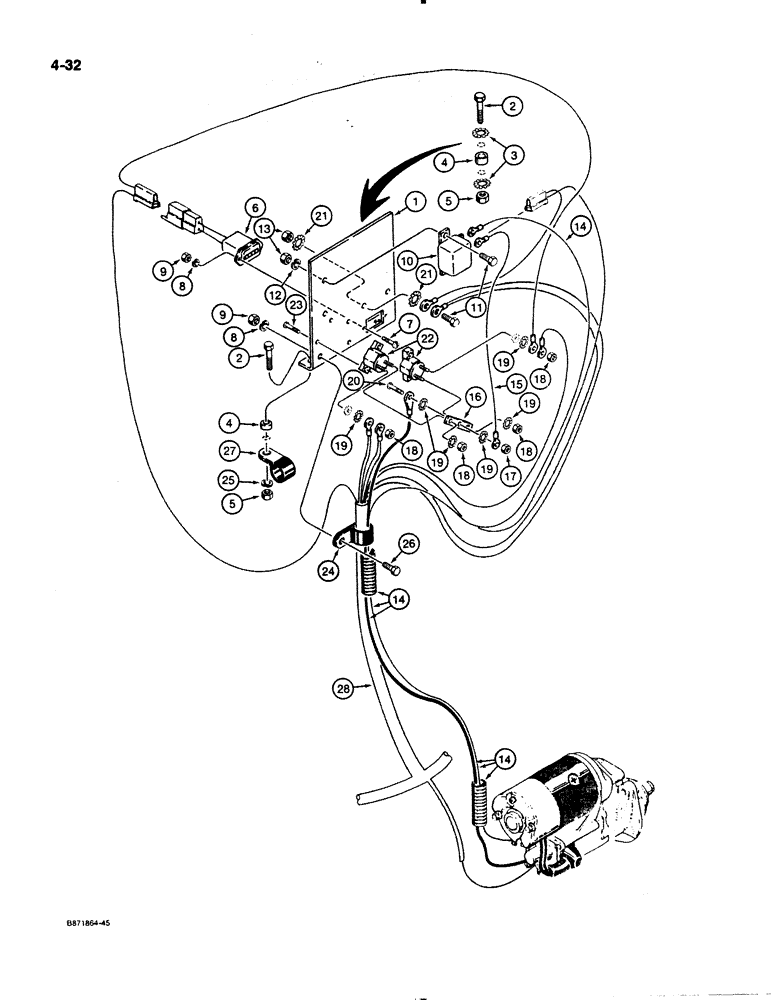

Запчасти Case W11B (4-032) - ELECTRICAL SYSTEM, REAR HARNESS TO RELAY PANEL, P.I.N. 9162788 THRU 9164336 (04) - ELECTRICAL SYSTEMS

1

L115901

PANEL

- relay mounting

1шт.

2

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

3

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

4

G11271

SPACER

- relay mounting bracket

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

6

L114392

HOURMETER

GAUGE - hourmeter

1шт.

7

182-592

SCREW,Cross Pan Hd, #6-32 x 3/4"

- machine, Phillips head, no. 6 NC x 3/4 inch, black

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

9

129-15

NUT,#6-32

2шт.

10

L115882

RELAY

- switch, 75 ampere

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

14

L114241

CABLE

WIRE -, Serial Range: relay-starter

1шт.

15

L114058

HARNESS

WIRE - jumper

1шт.

16

L114028

BAR

- circuit breaker

1шт.

17

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

18

129-37

NUT,#10-32

4шт.

19

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

20

182-126

SCREW,Sl Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 5/8"

1шт.

21

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch

2шт.

22

L114233

BREAKER

CIRCUIT BREAKER - 40 amperes

2шт.

23

182-90

SCREW,Slotted Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan head slotted, No. 8 -32 NC x 1"

4шт.

24

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium c1osed, 3/4 inch diameter

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

49838

CLAMP

- mounting, tube

1шт.

28

L124140

HARNESS

- rear, electrical

1шт.
