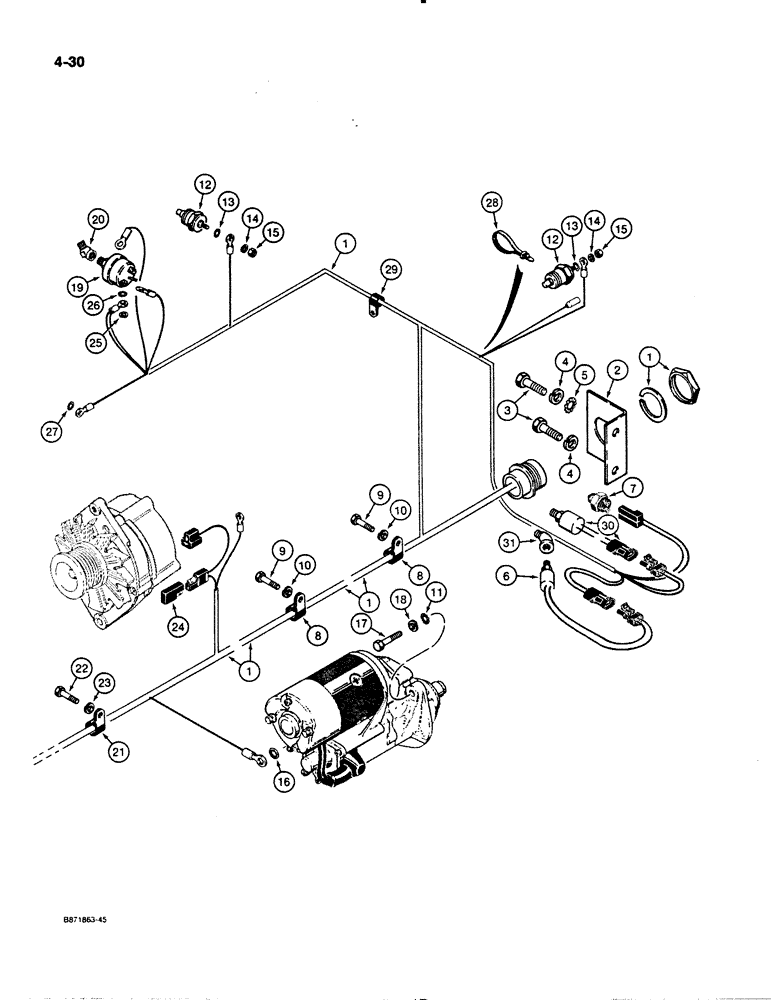

Запчасти Case W11B (4-030) - ELECTRICAL SYSTEM, REAR ELECTRICAL HARNESS TO ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

L124140

HARNESS

- rear, electrical

1шт.

For P.I.N. 9162788 - 9164336

1шт.

Ref. 1A Subs to L124573 per ECN S0187-1/S0187-6

1шт.

2

L115053

BRACKET

- harness

1шт.

3

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

193-121

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER - internal-external tooth lock, 5/8", plated

1шт.

6

L116236

SWITCH

- clutch pressure

1шт.

7

L116694

SWITCH

- neutral start

1шт.

8

T42284

CLAMP

- harness

2шт.

9

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

2шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

11

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.

12

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - temperature

2шт.

13

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

129-37

NUT,#10-32

2шт.

16

193-86

LOCK WASHER,7/16"

WASHER - internal tooth lock, , plated 7/16"

1шт.

17

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

18

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

19

L112707

SWITCH

- oil pressure

1шт.

20

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

21

49836

CLAMP

- harness

1шт.

22

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

1шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

24

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

1шт.

25

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

26

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No. 8, plated

3шт.

27

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

49838

CLAMP

- mounting, tube

1шт.

30

L116235

IGNITION SWITCH

SWITCH - backup alarm

1шт.

31

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 45 degree, 1/8" NPT

1шт.
