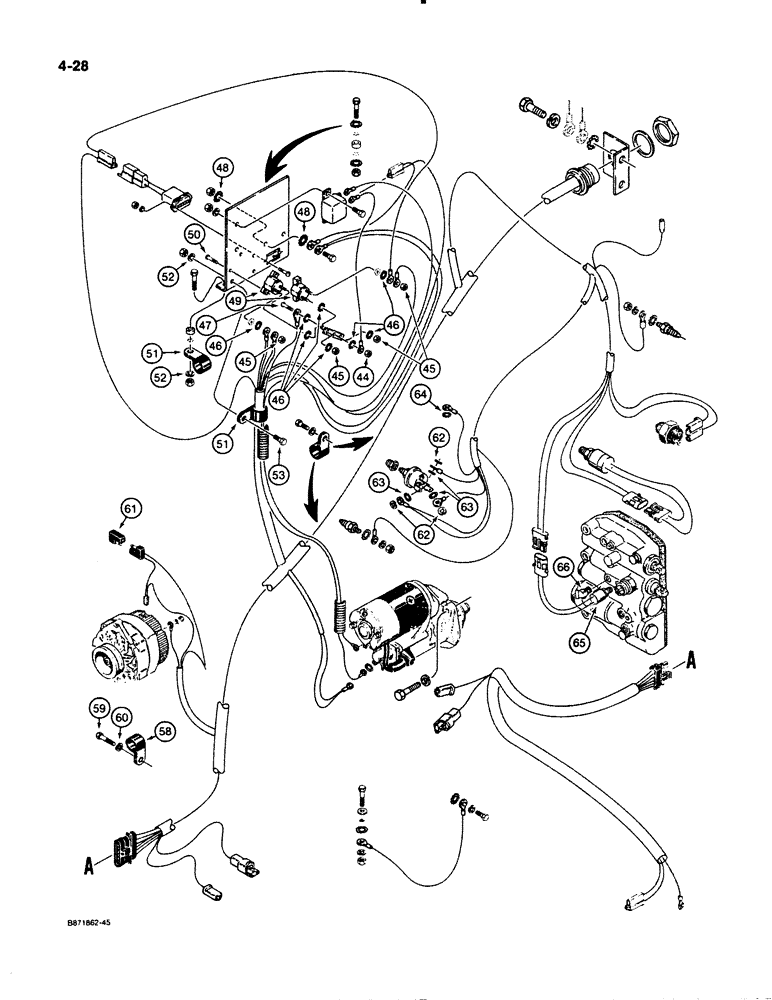

Запчасти Case W11B (4-028) - ELECTRICAL SYSTEM, REAR ELECTRICAL HARNESS, P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS

44

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

45

129-37

NUT,#10-32

4шт.

46

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

8шт.

47

182-126

SCREW,Sl Pan Hd, #10 - 24 x 5/8"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 5/8"

1шт.

48

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch

2шт.

49

L114233

BREAKER

CIRCUIT BREAKER - 40 amperes

2шт.

50

182-90

SCREW,Slotted Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan head slotted, No. 8 -32 NC x 1"

4шт.

51

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium closed, 3/4 inch diameter

2шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

53

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

54

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter

1шт.

55

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

56

492-11038

LOCK WASHER,3/8"

1шт.

57

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

58

49836

CLAMP

- harness

1шт.

59

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

1шт.

60

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

61

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

1шт.

62

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

63

193-119

LOCK WASHER,Ext-Int Tooth, #8

WASHER - internal-external tooth lock, No. 8, plated

3шт.

64

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

65

L116235

IGNITION SWITCH

SWITCH - backup alarm

1шт.

66

221-1401

ELBOW,45º, 1/8"-27, NPT

- street, 45 degree, 1/8" NPT

1шт.
