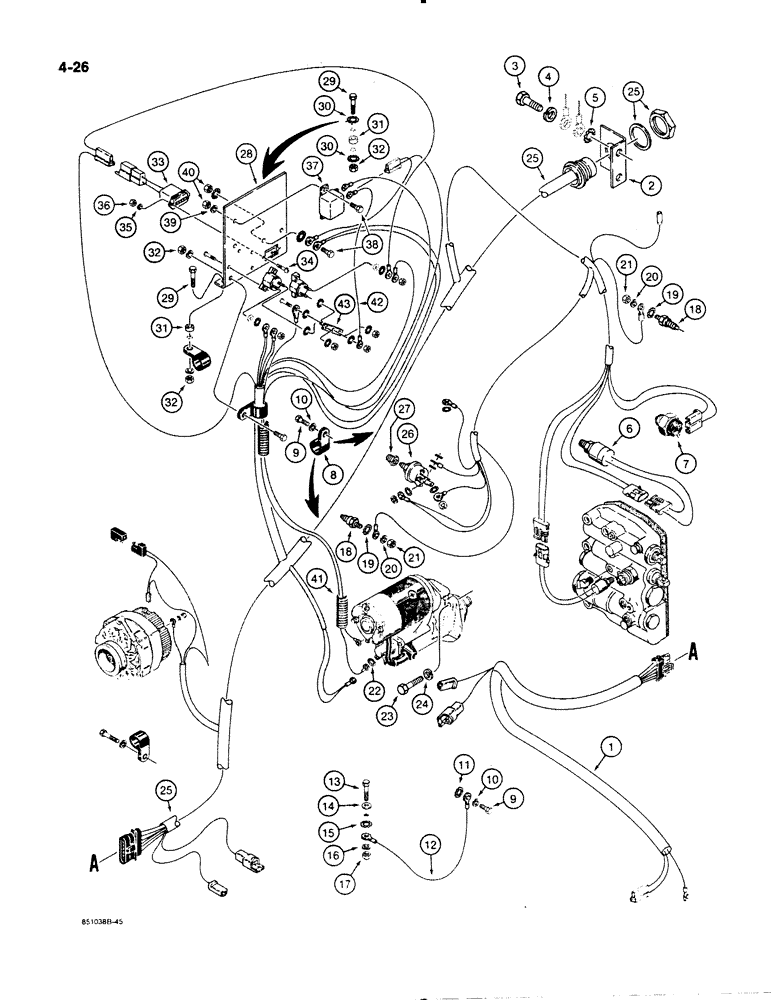

Запчасти Case W11B (4-026) - ELECTRICAL SYSTEM, REAR ELECTRICAL HARNESS, P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS

1

L115104

HARNESS

- rear, electrical, 22" long

1шт.

2

L115053

BRACKET

- harness

1шт.

3

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

193-121

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER - internal-external tooth lock, 5/8", plated

1шт.

6

L116236

SWITCH

- clutch pressure

1шт.

7

L116694

SWITCH

- neutral start

1шт.

8

T42284

CLAMP

- harness

2шт.

9

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 20 mm (8.8), plated

3шт.

10

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

11

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

12

L116326

CABLE

- ground

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

15

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

18

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - temperature

2шт.

19

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Use 193-99 per ECS 8385-34 Ext-Int Tooth, #10

1шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

21

129-37

NUT,#10-32

1шт.

22

193-86

LOCK WASHER,7/16"

WASHER - internal tooth lock, , plated 7/16"

1шт.

23

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

24

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

25

L115070

HARNESS

- engine to transmission, 46" long, upon depletion, order (1) L124140 harness and (2) 223-191 terminals

1шт.

26

L112707

SWITCH

- oil pressure

1шт.

27

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.

28

L115901

PANEL

- relay mounting

1шт.

29

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

30

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

31

G11271

SPACER

- relay mounting bracket

2шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

33

L114392

HOURMETER

GAUGE - hourmeter

1шт.

34

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

MACHINE SCREW - flat head slotted, No. 6 - 32 NC x 1/2", use 182-592 per ECS 8385-34

2шт.

35

195-507

WASHER,#6

- flat, No. 6

2шт.

36

131-503

LOCK NUT

NUT - hex, self-locking, No. 6 - 32 NC, use 129-5 per ECS 8385-34

2шт.

37

L115882

RELAY

- switch, 75 ampere

1шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

39

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

40

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

41

L114241

CABLE

WIRE -, Serial Range: relay-starter

1шт.

42

L114058

HARNESS

WIRE - jumper

1шт.

43

L114028

BAR

- circuit breaker

1шт.
