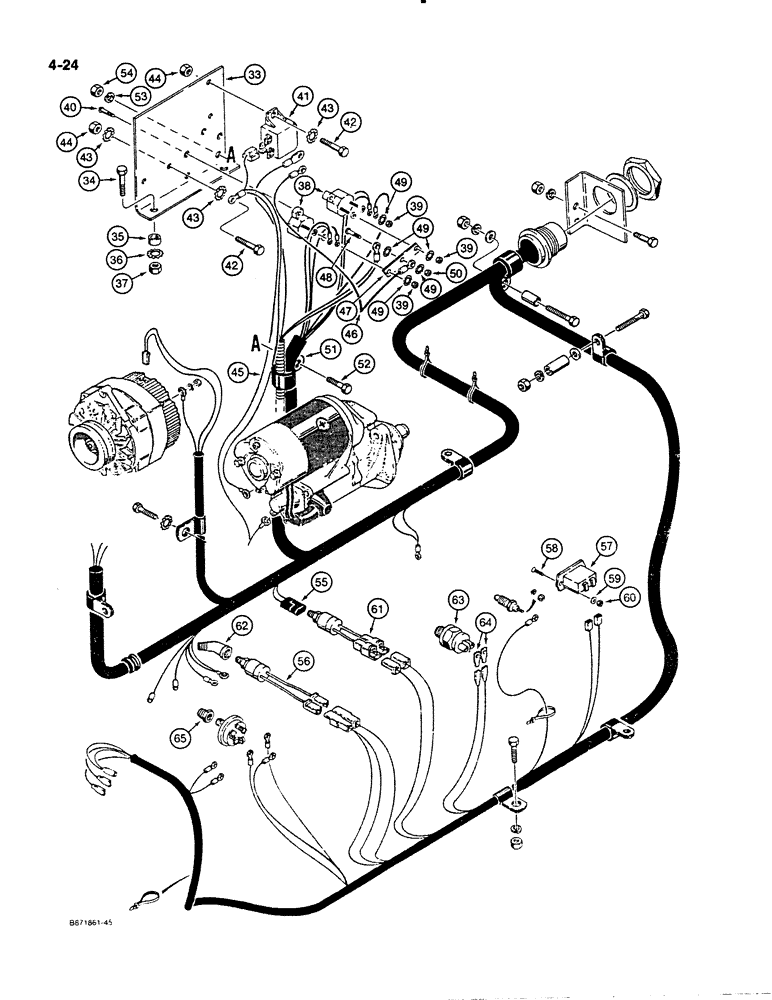

Запчасти Case W11B (4-024) - ELECTRICAL SYSTEM, REAR ELECTRICAL HARNESS, P.I.N. 9154401 (04) - ELECTRICAL SYSTEMS

33

L114615

PANEL

- relay mounting

1шт.

34

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

35

G11271

SPACER

- relay mounting bracket

2шт.

36

193-45

WASHER,Ext-Int Tooth, 5/16"

- internal-external tooth lock, 5/16"

2шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

38

L114233

BREAKER

CIRCUIT BREAKER - 40 amperes

2шт.

39

129-37

NUT,#10-32

3шт.

40

182-90

SCREW,Slotted Pan Hd, #8-32 x 3/4"

MACHINE SCREW - pan head slotted, No. 8 -32 NC x 1"

4шт.

41

L115882

RELAY

- switch, 75 ampere

1шт.

42

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

43

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4", plated

3шт.

44

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

45

L114241

CABLE

WIRE -, Serial Range: relay-starter

1шт.

46

L114058

HARNESS

WIRE - jump

1шт.

47

L114028

BAR

- circuit breaker

1шт.

48

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, flanged head, No. 10 NC x 5/8 inch

1шт.

49

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

Ref. 49A Sub 193-99 Washer per ECS 8385-34

1шт.

50

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10-24

1шт.

51

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- medium closed, 3/4 inch diameter

1шт.

52

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

53

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

54

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

55

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

1шт.

56

L112587

SWITCH

- clutch pressure

1шт.

57

L107631

METER

GAUGE - hourmeter, if used

1шт.

58

171-61

SCREW,Sl Flat Hd, #6 - 32 x 1/2"

MACHINE SCREW - flat head slotted, No. 6 -32 NC x 1/2"

2шт.

Ref. 58A Sub 182-592 Washer per ESC 8385-34

1шт.

59

195-507

WASHER,#6

- flat, No. 6

2шт.

60

131-503

LOCK NUT

NUT - hex, self-locking, No. 6 -32 NC

2шт.

Ref. 60A Sub 129-5 Nut per ESC 8385-34

1шт.

61

L112588

SWITCH

- backup alarm, if used

1шт.

62

221-401

ELBOW,45 Degree, 1/8"-27, NPT

STREET ELBOW - 45 degree, 1/8" NPT

1шт.

63

S114679

SWITCH

- neutral start

1шт.

64

L59682

TERMINAL CONNECTOR

TERMINAL - neutral start switch

2шт.

65

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT

1шт.
