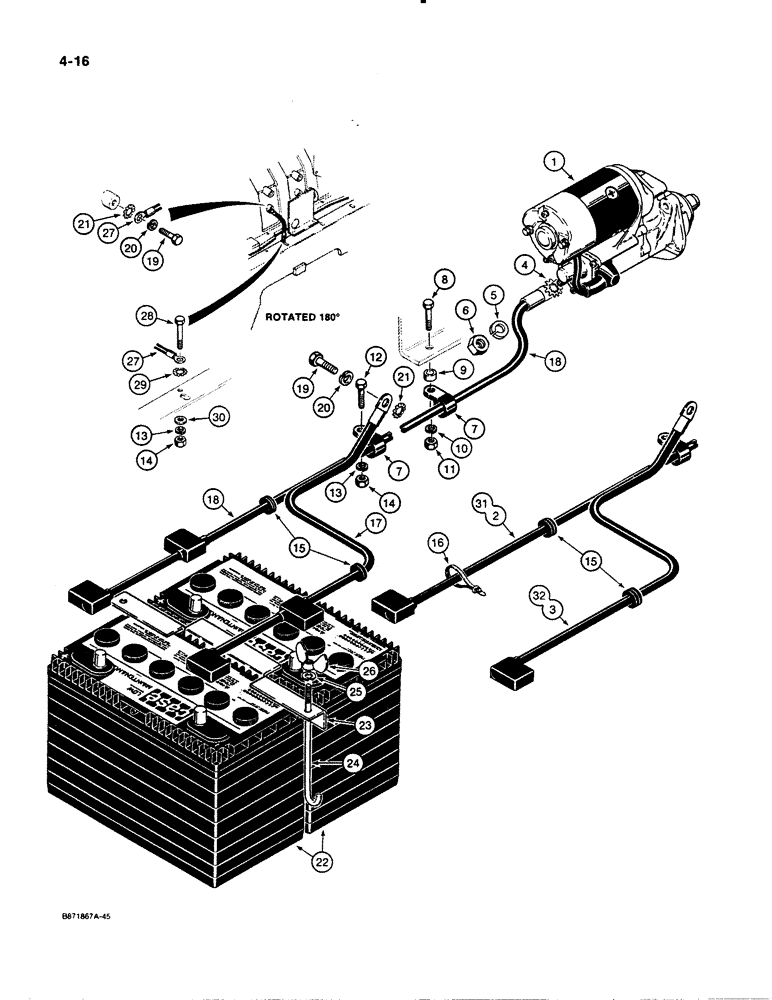

Запчасти Case W11B (4-016) - ELECTRICAL SYSTEM, BATTERY AND CABLES, ENGINE BLOCK TO CHASSIS GROUND, P.I.N. 9158252 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-3 and 4-5

1шт.

2

L116176

CABLE

- starter to battery, used on models with single battery, Serial Range: -9164337

1шт.

Ref. 2A P.I.N 9158252 TO 9164337

1шт.

3

L116177

CABLE

- battery to ground, used on models with single battery, Serial Range: -9164337

1шт.

Ref. 3A P.I.N 9158252 TO 9164337

1шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

7

49838

CLAMP

- cable, Serial Range: starter-battery

2шт.

8

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

9

G11271

SPACER

- solenoid mounting bracket

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

A37563

GROMMET

- rubber, 7/8 inch (22 mm) hole size

2шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

L116446

CABLE

- battery to ground, used on models with dual battery option, Serial Range: -9164337

1шт.

18

L116447

CABLE

- starter to battery, used on models with dual battery option, Serial Range: -9164337

1шт.

19

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 20 mm

2шт.

20

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

22

BHC30

BATTERY, DRY

BATTERY - 12 volt, dry type, service replacement

1-2шт.

23

L112208

BRACKET

- battery hold down

1шт.

24

T31481

SCREW

HOOK - battery hold down

2шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

L77802

NUT

- wing, 5/16 inch NC, no longer used, see Ref. 26A

2шт.

26a

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Not shown

2шт.

27

L116326

CABLE

- ground, engine, Serial Range: block-chassis

1шт.

28

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

29

193-72

LOCK WASHER

- lock, internal/external tooth, 3/8 inch

1шт.

30

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

31

L118486

CABLE

- starter to battery, used on models with single battery, Start Serial: 9164337

1шт.

32

L118485

CABLE

- battery to ground, used on models with single battery, Start Serial: 9164337

1шт.
