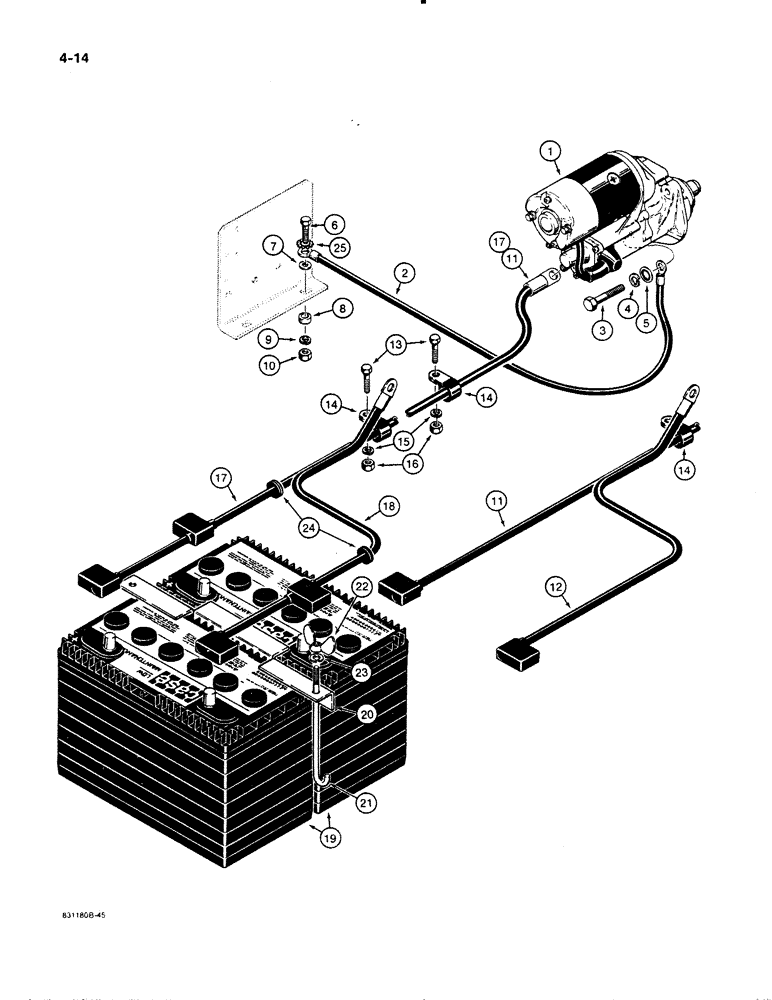

Запчасти Case W11B (4-014) - ELECTRICAL SYSTEM, BATTERY AND CABLES, PRIOR TO P.I.N. 9158252 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-3 and 4-5.

1шт.

2

L113031

HARNESS

CABLE - ground

1шт.

3

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

5

193-86

LOCK WASHER,7/16"

WASHER - lock, internal tooth, 7/16 inch, replaces regular lock washer used in production on some models

1шт.

6

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

7

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch

1шт.

8

G11271

SPACER

- solenoid mounting bracket

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

11

L112243

CABLE

- starter to battery, models with single battery, used on models, Serial Range: -9158252

1шт.

12

L112242

CABLE

- battery to ground, models with single battery, used on models, Serial Range: -9158252

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium c1osed, 3/4 inch diameter

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

L112230

CABLE

- starter to battery, models with dual battery option only

1шт.

18

L112231

CABLE

- battery to ground, models with dual battery option only

1шт.

19

A38411

DRY BATTERY

- 12 volt, with caps, dry type

1-2шт.

20

L112208

BRACKET

- battery hold down

1шт.

21

T31481

SCREW

HOOK - battery hold down

2шт.

22

L77802

NUT

- wing, 5/16 inch NC, no longer used, see Ref. 22A

2шт.

22a

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Not shown

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

L109058

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

- rubber

2шт.

25

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.
