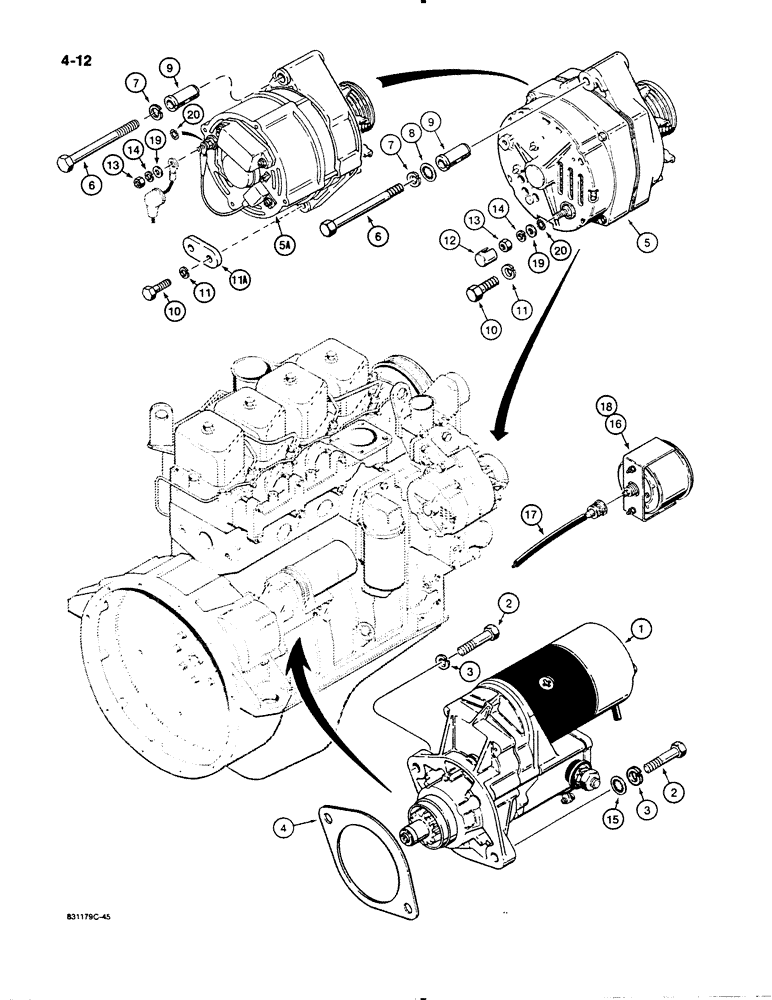

Запчасти Case W11B (4-012) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figure 4-4

1шт.

2

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 35, 8.8, Full Thd

2шт.

3

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

4

L112164

GASKET

GASKET - starter

1шт.

5

REF

INSTRUCTION

ALTERNATOR - electrical, for correct assembly and components see Figures 4-7 and 4-9

1шт.

5a

A186125

ALTERNATOR

ALTERNATOR - electrical, Bosch, parts list Figure 4-11

1шт.

5a

AR186125GV

ALTERNATOR

Value

1шт.

5a

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

5a

AC186125

CORE-ALTERNATOR

Return Number

1шт.

6

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 110 mm

1шт.

7

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

8

193-86

LOCK WASHER,7/16"

WASHER - lock, internal tooth, 7/16 inch

1шт.

9

J902469

SPACER

SPACER - alternator

1шт.

10

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 25 mm

2шт.

11

892-1108

LOCK WASHER,M8

LOCK WASHER, M8

2шт.

11a

J903089

SUPPORT

BRACE - lower, alternator mounting, used with A186125 Bosch alternator

1шт.

12

L106774

CAP

CAP - alternator outlet terminal, plastic, if used, not required on units with Clark transmission

1шт.

13

825-1106

NUT,Hex, M6, Cl 8

NUT - hex, 6 mm, Grade 10

1шт.

14

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

15

193-72

LOCK WASHER

WASHER - lock, internal tooth, 3/8 inch

1шт.

16

A11190

TACHOMETER

GAUGE - combination tachometer and hourmeter, if used

1шт.

17

G45230

HOUSING

CABLE - tachometer, if used

1шт.

18

L116256

TACHOMETER

GAUGE - tachometer, if used

1шт.

19

195-518

WASHER,1/4", SAE

WASHER - flat, 9/32 x 5/8 x 3/64 inch

1шт.

20

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal/external lock, 1/4 inch

1шт.
