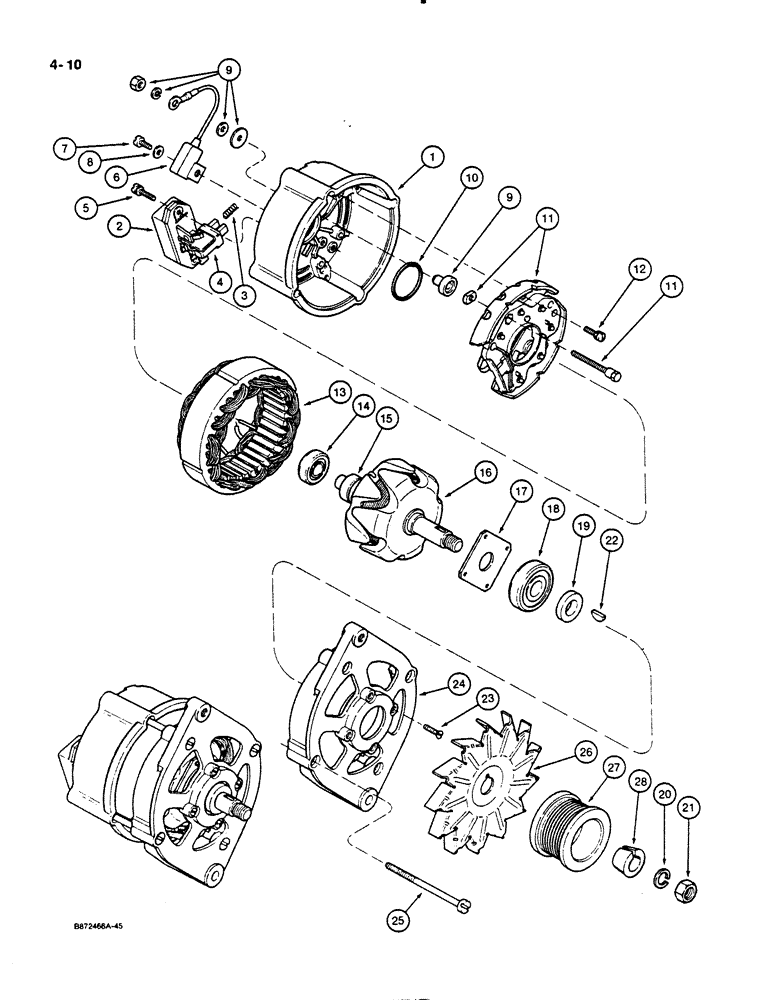

Запчасти Case W11B (4-010) - ALTERNATOR, BOSCH (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - for 12 volt system, 65 ampere, Bosch, Includes: Ref. 1 - 25

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator; 65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 14V, 65A

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number 12 VOLT, 63 AMP ALTERNATOR

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

A187916

ALTERNATOR,24V, 45A

Alternator, 24V, 65 Amp

1шт.

A187916GV

ALTERNATOR

Value

1шт.

AR187916

REMAN-ALTERNATOR

Remanufactured Alternator; 45A 24V

1шт.

AC187916

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured Alternator; 61A 12V

1шт.

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A186187

HOUSING

HOUSING - collector ring end

1шт.

2

A186189

REGULATOR

REGULATOR - voltage, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

4

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY - alternator

1шт.

5

A186194

SCREW,M4 x 18mm

SCREW, , Voltage regulator retaining Sltd Truss Hd, M4 x 18, w/LW

2шт.

6

3079135R1

TERMINAL CONNECTOR

KIT - hardware, terminal

1шт.

7

A186195

CAPACITOR

CAPACITOR - alternator

1шт.

8

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

SCREW - fillister head, capacitor retaining

1шт.

9

A186196

WASHER

WASHER - retaining screw

1шт.

10

A186197

RECTIFIER

BRIDGE - rectifier, alternator, includes hardware

1шт.

11

A186188

SCREW

BOLT - with washer, rectifier bridge retaining

3шт.

12

A186192

STATOR

STATOR ASSEMBLY - alternator

1шт.

13

3079386R1

O-RING

O-RING - bearing

1шт.

14

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor, collector ring end

1шт.

15

A186185

RING

RING - collector

1шт.

16

A186184

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

17

3078379R1

COVER

PLATE - bearing retaining

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end

1шт.

3078897R1

SET OF PARTS

KIT - rotor retaining, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

RING - spacer

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, rotor shaft

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - rotor shaft

1шт.

22

NSS

NOT SOLD SEPARAT

KEY - pulley retainer, if used

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - bearing retaining plate

4шт.

24

A186182

HOUSING

COVER - drive end

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - cover retaining

4шт.

26

221425R1

FAN

FAN - alternator

1шт.

27

J903586

GROOVED PULLEY

PULLEY - drive, no longer available, order J908560 pulley and J908563 retainer as a matched set

1шт.

28

J903333

RETAINER

RETAINER - pulley, no longer available, order J908560 pulley and J908563 retainer as a matched set

1шт.
