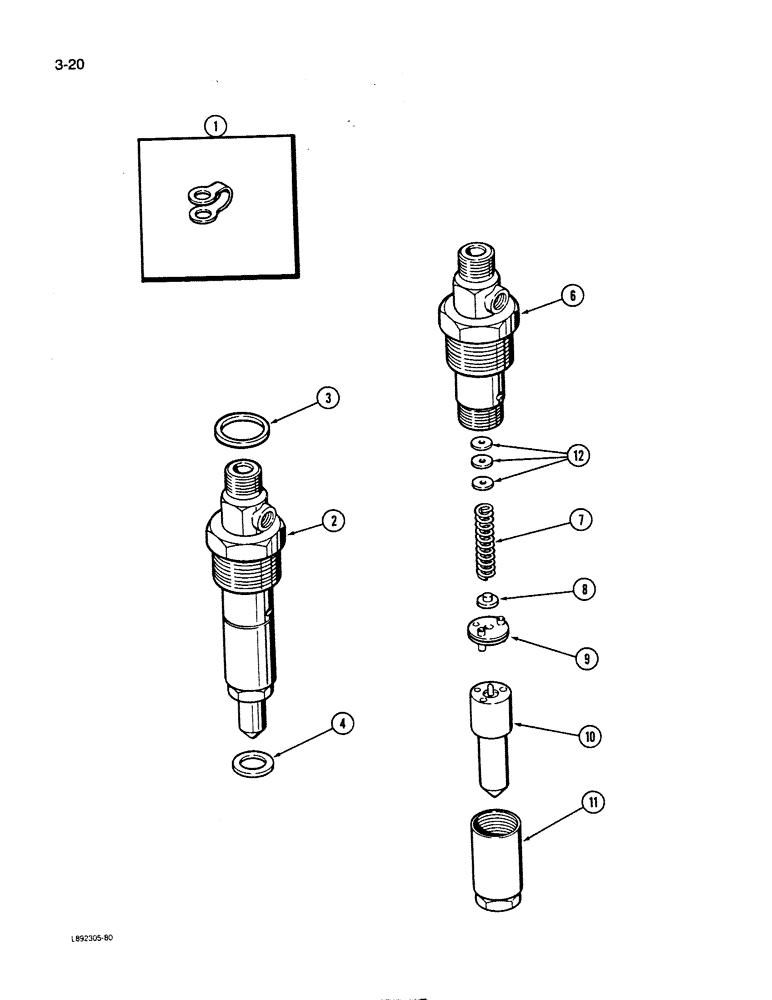

Запчасти Case W11B (3-020) - FUEL INJECTION NOZZLE, 4-390 AND 4T-390 ENGINES, NOZZLE STAMPED 4472 (03) - FUEL SYSTEM

A77553

KIT

KIT - injection nozzle, new, Includes: Ref. 1 - 12

4шт.

A77553 Kit replaced by J914472 Nozzel

1шт.

AR77553

REMAN-INJECT NOZZLE

REMAN-INJECTION NOZZLE KIT - injection nozzle, remanufactured, Includes: Ref. 1 - 12

4шт.

Ref. 1A AR77553 Kit replaced by JR911340 Kit and J903380 Seal.

1шт.

JR919331

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

JC919331

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

4шт.

1

J903380

SEAL

SEAL - connector

4шт.

Assy. and J903380 Seal.

1шт.

2

J914472

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, (New) (Replaces J911340) (Order A77553 Kit), Includes: Ref. 3 - 12

4шт.

2

JR914472

REMAN-INJECT NOZZLE

Reman-Injection Nozzle Assembly - injection, remanufactured

4шт.

2

JC914472

CORE-INJECTION PUMP

Return Part Number injector (Use this number to return injector core for credit)

4шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

SEAL - injector (Replaces J903927)

4шт.

Ref. 3A Not part of J914472 Nozzel

1шт.

4

J900808

SEAL

SEAL - injector

4шт.

Whenever a nozzle is removed from the cylinder head, J900808 gasket must be replaced before nozzle is installed in cylinder head.

1шт.

6

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - injector (Order A77553 kit)

1шт.

7

J905152

SPRING

SPRING - nozzle pressure

1шт.

8

J905153

SPINDLE

SEAT - nozzle pressure spring

1шт.

9

J905154

PLATE

STOP ASSEMBLY - nozzle valve

1шт.

10

NSS

NOT SOLD SEPARAT

TIP ASSEMBLY - nozzle injector (Order A77553 kit)

1шт.

11

A48201

NUT

NUT - cap, nozzle tip

1шт.

A48186

KIT

SHIM KIT - nozzle opening pressure, Includes: Ref. 12

1шт.

12

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle (5 in kit) 1.00mm Thk

1шт.

12

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle (5 in kit) 1.04mm Thk

1шт.

12

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle (5 in kit) 1.08mm Thk

1шт.

12

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle (5 in kit) 1.10mm Thk

1шт.

12

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle (5 in kit) 1.14mm Thk

1шт.

12

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle (5 in kit) 1.18mm Thk

1шт.

12

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle (5 in kit) 1.20mm Thk

1шт.

12

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle (5 in kit) 1.24mm Thk

1шт.

12

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle (5 in kit) 1.28mm Thk

1шт.

12

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle (5 in kit) 1.30mm Thk

1шт.

12

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle (5 in kit) 1.34mm Thk

1шт.

12

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle (5 in kit) 1.38mm Thk

1шт.

12

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle (5 in kit) 1.40mm Thk

1шт.

12

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle (5 in kit) 1.44mm Thk

1шт.

12

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle (5 in kit) 1.48mm Thk

1шт.

12

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle (5 in kit) 1.50mm Thk

1шт.

12

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle (5 in kit) 1.54mm Thk

1шт.

12

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle (5 in kit) 1.58mm Thk

1шт.

12

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle (5 in kit) 1.60mm Thk

1шт.

12

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle (5 in kit) 1.64mm Thk

1шт.

12

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle (5 in kit) 1.68mm Thk

1шт.

12

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle (5 in kit) 1.70mm Thk

1шт.

12

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle (5 in kit) 1.74mm Thk

1шт.

12

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle (5 in kit) 1.78mm Thk

1шт.

12

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle (5 in kit) 1.80mm Thk

1шт.

12

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle (5 in kit) 1.84mm Thk

1шт.

12

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle (5 in kit) 1.88mm Thk

1шт.

12

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle (5 in kit) 1.90mm Thk

1шт.

12

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle (5 in kit) 1.94mm Thk

1шт.

12

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle (5 in kit) 1.98mm Thk

1шт.
