(3-014) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE

Запчасти Case W11B (3-014) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE (03) - FUEL SYSTEM

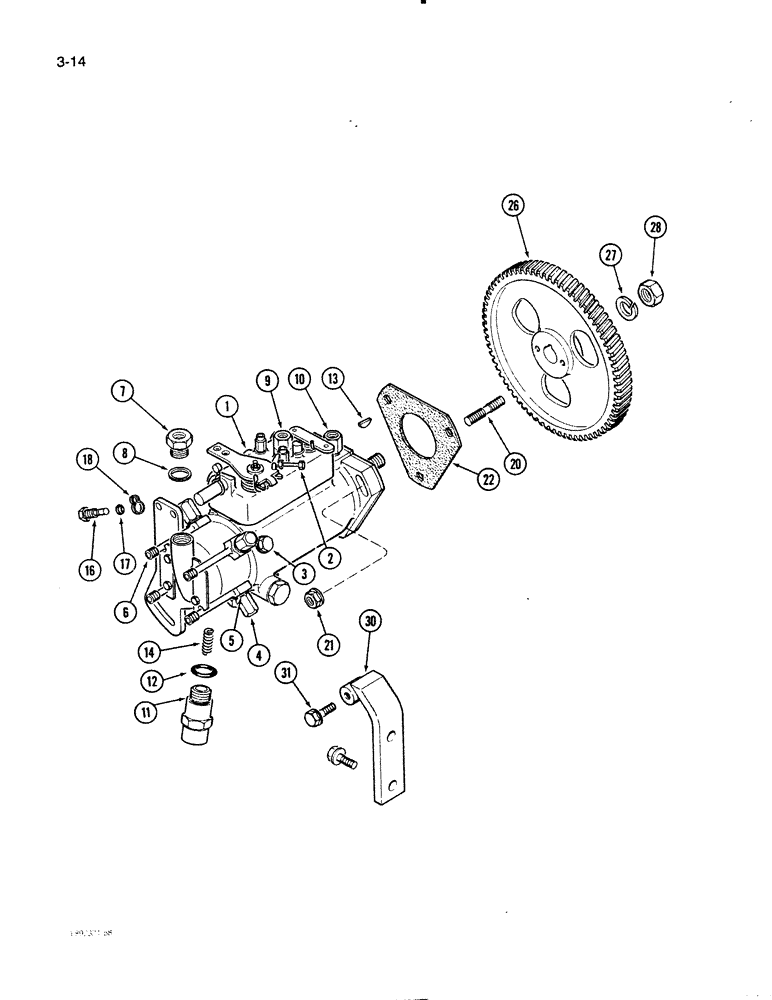

Схема запчастей Case W11B - (3-014) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE (03) - FUEL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J908657

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new (Metric Thread) (Replaces J903336), used with Funk transmission, Includes: Ref. 2 - 18

1шт.

1

JR908657

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured, Includes: Ref. 2 - 18

1шт.

1

JC908657

CORE-INJECTION PUMP

Return Part Number - use this part no. to return pump core for credit, Includes: Ref. 2 - 18

1шт.

1

J908656

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection (Metric Thread), used with Clark transmission, Includes: Ref. 2 - 18

1шт.

1

JR908656

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured Includes: Ref. 2 - 18

1шт.

1

JC908656

CORE-INJECTION PUMP

Return Part Number - use this part no. to return pump core for credit, Includes: Ref. 2 - 18

1шт.

2

J904637

SET SCREW

SCREW - adjusting, low idle

1шт.

3

K963867

SCREW

SCREW ASSEMBLY - bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT - banjo

4шт.

5

J904644

WASHER

WASHER - sealing, package of ten, nine pieces required

9шт.

6

K962755

ADAPTER

FITTING - banjo

4шт.

7

J904641

FITTING

FITTING - inlet

1шт.

8

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE - bleed

1шт.

10

J904643

FITTING

FITTING - return

1шт.

11

J904630

SOLENOID

SOLENOID ASSEMBLY - shut down, 12 volt, Ref. 12 and 14 are included along with a NSS guide, Includes: Ref. 12

1шт.

12

J904635

O-RING

O-RING - solenoid

1шт.

13

J902332

KEY

KEY - retainer, pump gear

1шт.

14

J904777

SPRING

SPRING - plunger

1шт.

16

J904778

BOLT

BOLT - hex, locking device

1шт.

17

J904780

SEAL

SEAL - locking bolt

1шт.

18

J904779

WASHER

WASHER - locking

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting (Replaces J905685)

1шт.

26

J914912

GEAR

GEAR - pump drive (Replaces J911331)

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, (Replaces 92-9) 9/16"

1шт.

28

J903738

NUT

NUT - hex, 14 mm

1шт.

30

J905387

BRACE

BRACE - fuel pump

1шт.

31

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 20 mm

3шт.
