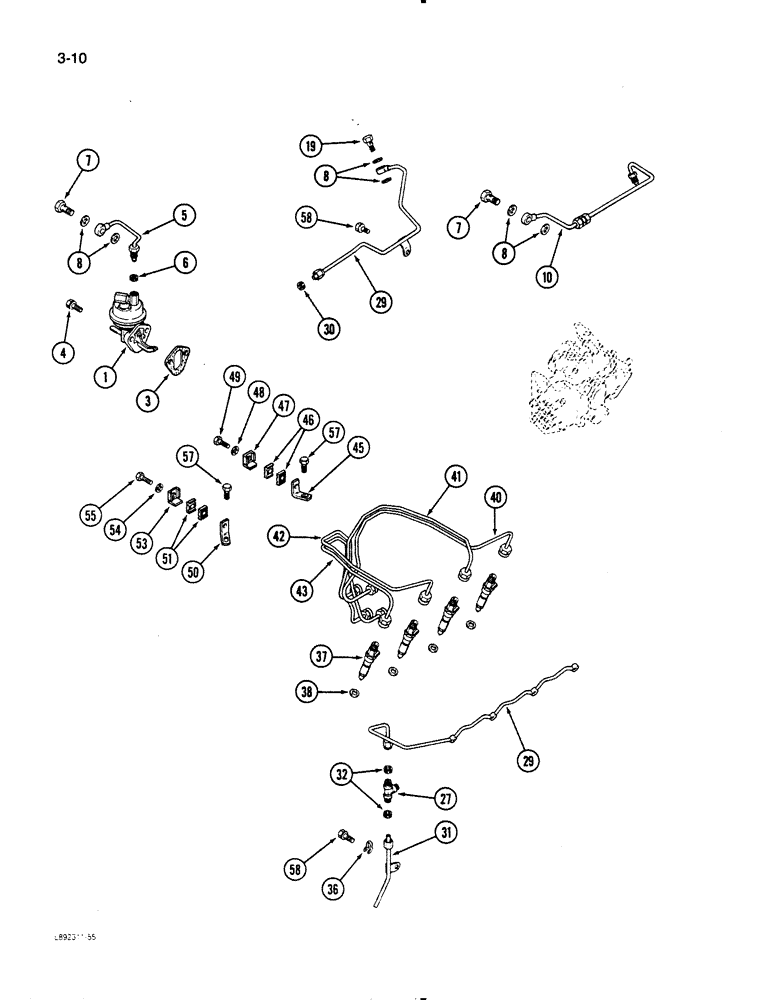

Запчасти Case W11B (3-010) - FUEL INJECTION SYSTEM, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

3

J904044

GASKET

- mounting, pump

1шт.

4

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - hex flange head, 8 mm x 1.25 x 25

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

J905391

SLEEVE

SEAL - tube

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

8

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

4шт.

10

J912783

FUEL TUBE,363.9, 84 mm L

TUBE ASSEMBLY - fuel supply (Serviced as an assembly only)

1шт.

19

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY - fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union, 7/16"-24 thd

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex (Discard before assembly) 3/8"-24, 45º Fl, Comp

3шт.

29

J905699

FUEL TUBE,4.76 mm OD

TUBE ASSEMBLY - fuel return, tee to pump, Includes: Ref. 30

1шт.

30

J905391

SLEEVE

SEAL - tube

1шт.

31

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return , tee to fuel tank), Includes: Ref. 32

1шт.

32

J905351

SLEEVE

SEAL - tube

1шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

36

J903380

SEAL

- connector, banjo

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-19)

4шт.

38

J900808

SEAL

- injector

4шт.

40

J903480

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No.1 cylinder

1шт.

41

J903481

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No.2 cylinder

1шт.

42

J903482

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No.3 cylinder

1шт.

43

J903483

FUEL TUBE,21 mm ID x 64 mm OD

TUBE ASSEMBLY - fuel injector, No.4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 1 and 2, Includes: Ref. 45 - 49

1шт.

45

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

46

J914338

CLAMP

ISOLATOR - supply tube

1шт.

47

NSS

NOT SOLD SEPARAT

PLATE - clamp, fuel tube

1шт.

48

NSS

NOT SOLD SEPARAT

WASHER - lock, 5 mm

1шт.

49

NSS

NOT SOLD SEPARAT

bolt - hex head

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 3 and 4, Includes: Ref. 50 - 55

1шт.

50

NSS

NOT SOLD SEPARAT

BRACKET - fuel tube

1шт.

51

J914338

CLAMP

ISOLATOR - supply tube

2шт.

53

NSS

NOT SOLD SEPARAT

PLATE - clamp, fuel tube

1шт.

54

NSS

NOT SOLD SEPARAT

WASHER - lock, 5 mm

1шт.

55

NSS

NOT SOLD SEPARAT

BOLT - hex head

1шт.

57

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

- hex special

2шт.

58

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.
