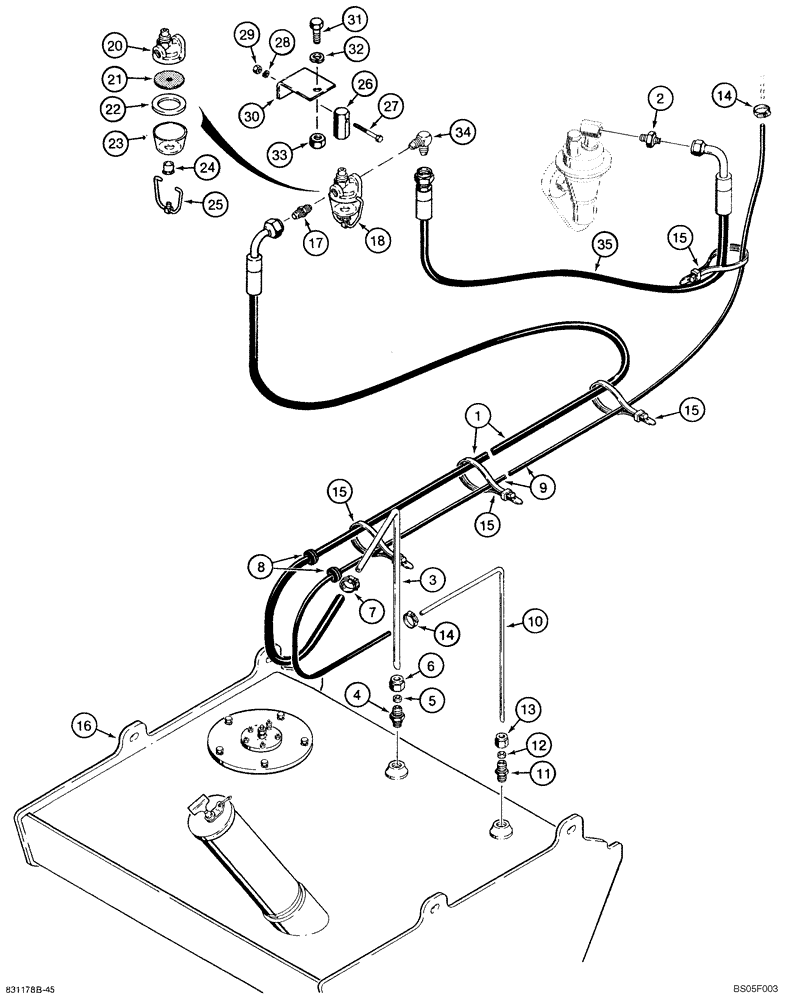

Запчасти Case W11B (3-004) - FUEL LINES (03) - FUEL SYSTEM

1

L112238

HOSE ASSY.

HOSE - fuel inlet

1шт.

2

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight, 9/16 - 18 flared x 1/4 inch PT

1шт.

3

L112262

FUEL TUBE,0.375" OD x 13.13, 7.5" L

TUBE - fuel inlet

1шт.

L112261

CONNECTOR, ELEC

FITTING ASSEMBLY - tube, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-104

SLEEVE,3/8" Tube

- fitting

1шт.

6

222-114

NUT,5/8"-24

NUT - fitting

1шт.

7

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - retaining, hose

1шт.

8

A37563

GROMMET

- rubber, 7/8 inch (22 mm) hole size, fuel hoses

2шт.

9

L112234

FUEL HOSE

HOSE - fuel return

1шт.

10

L112235

FUEL TUBE,4.77 mm OD x 326, 191 mm L

TUBE - fuel return

1шт.

L112236

CONNECTOR, ELEC

FITTING ASSEMBLY - tube, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

12

222-101

SLEEVE,3/16" Tube

- fitting

1шт.

13

222-111

TUBE NUT,7/16" - 24

NUT - fitting

1шт.

14

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

16

L116590

TANK

ASSEMBLY - fuel, parts list Figure 3-2

1шт.

17

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

18

A30049

STRAINER ELEMENT

STRAINER ASSEMBLY - fuel, Includes: Ref. 19 - 25

1шт.

19

A11205

VALVE

- sstrainer, not shown

1шт.

20

A11214

HEAD

- strainer

1шт.

21

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

22

A11208

GASKET

- bowl

1шт.

23

A11209

BOWL

- sediment

1шт.

24

A11210

ADJUSTER

CUP ASSEMBLY - includes nut

1шт.

25

A11212

BAIL

RETAINER - sediment bowl

1шт.

26

L124305

FITTING

- strainer assembly

1шт.

27

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

30

L124335

BRACKET

- strainer

1шт.

31

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

34

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

35

L124334

HOSE ASSY.

HOSE - fuel inlet

1шт.
