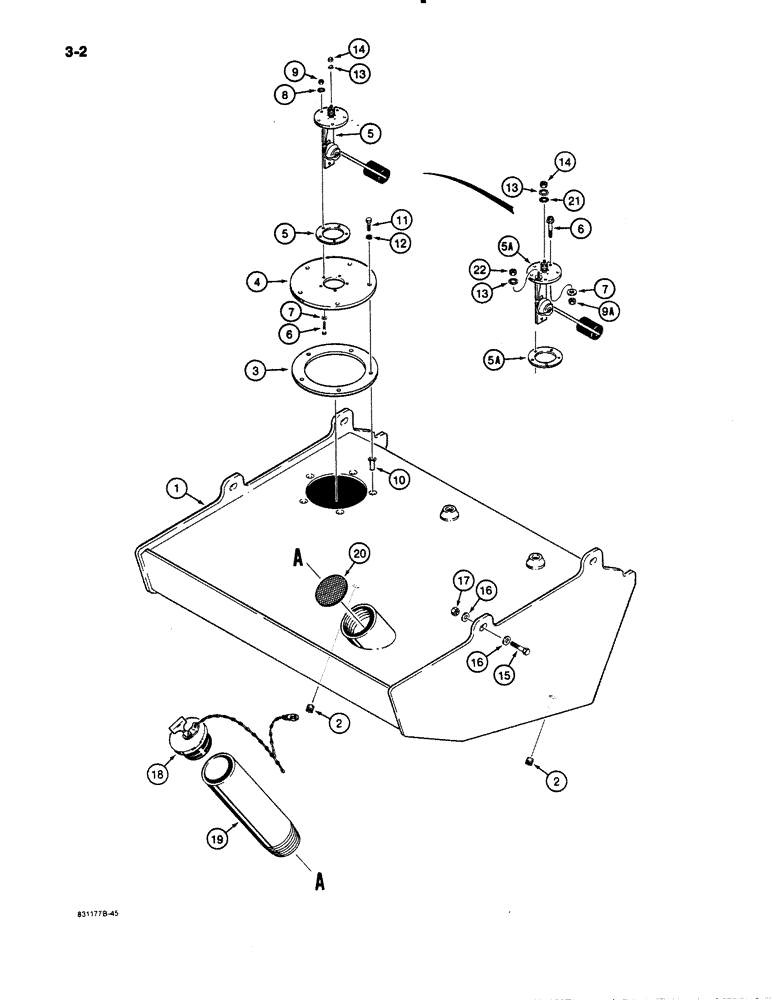

Запчасти Case W11B (3-002) - FUEL TANK (03) - FUEL SYSTEM

L116590

TANK

ASSEMBLY - fuel, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - hex socket head, 1 inch PT

2шт.

3

L79876

GASKET,4.57mm Thk

- fuel tank

1шт.

4

L77441

PLATE

- fuel tank

1шт.

5

L110129

TRANSMITTER

SENDER - fuel level, includes gasket, no longer available, order L118305 sender, Ref. 5A

1шт.

5a

L118305

TRANSMITTER

SENDER - fuel level, includes gasket

1шт.

6

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex, no. 10 NC x 3/4 inch

5шт.

7

L115306

WASHER

- sealing, special, if used

5шт.

8

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , Used with L110129 sender Ext-Int Tooth, #10

5шт.

9

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, , Use with L110129 sender #10-24, GA

5шт.

9a

86625057

NUT,#10-24, GB

NUT, LOCK, , Use with L118305 sender #10-24, GB

5шт.

10

L13176

NUT

RETAINER - special, 1/4 inch NC

5шт.

11

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

13

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 NC

1шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

16

R24718

WASHER

- flat, 1/2 inch

8шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

18

L74929

FILLER CAP

CAP, FILLER - fuel, mounts to rear radiator shroud, use existing hardware

1шт.

19

L74246

PIPE

- fuel filler

1шт.

20

L77398

STRAINER ELEMENT

SCREEN - fuel strainer

1шт.

21

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

22

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex lock, no. 10 NF

1шт.
