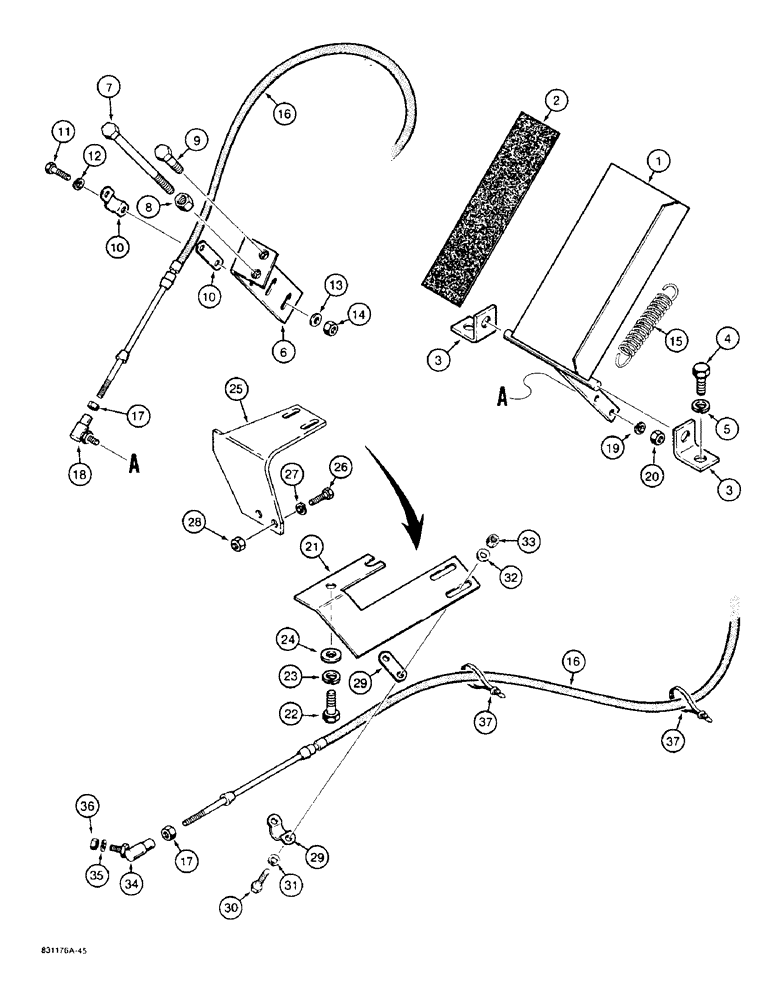

Запчасти Case W11B (2-056) - ACCELERATOR AND LINKAGE (02) - ENGINE

1

L70914

PEDAL ASSY.

PEDAL - accelerator

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

L73462

BRACKET

- pivot and pedal stop

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

L113353

BRACKET

- front accelerator cable

1шт.

7

113-263

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5, Full Thd

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

L12441

CLAMP

- cable

2шт.

11

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, no. 10 NC x 3/4 inch

2шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

13

195-101

WASHER,3/16"

- flat, 3/16 inch

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 NC

2шт.

15

L79116

SPRING

- pedal return

1шт.

16

L111952

CABLE

- accelerator, Includes: Ref. 17

1шт.

17

129-660

NUT,#10-32, Brass

2шт.

18

L12437

BALL JOINT,#10 - 32 x 7/8"

- cable end at pedal

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

20

129-37

NUT,#10-32

1шт.

21

L111030

BRACKET

- rear accelerator cable, used on models without turbocharger

1шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm - 1.25 x 20 mm, used on models without turbocharger

2шт.

23

892-1108

LOCK WASHER,M8

used on models without turbocharger M8

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Used on models without turbocharger M8 x 16 x 1.6

2шт.

L115235

BRACKET

- rear accelerator cable, used on models with turbocharger

1шт.

26

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used on models with turbocharger Hex, 1/4"-20 x 1", G5

2шт.

27

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used on models with turbocharger 1/4"

2шт.

28

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

29

L12441

CLAMP

- cable

1шт.

30

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, no. 10 NC x 3/4 inch

2шт.

31

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

32

195-101

WASHER,3/16"

- flat, 3/16 inch

2шт.

33

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 NC

2шт.

34

L12437

BALL JOINT,#10 - 32 x 7/8"

- cable end at engine

1шт.

35

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

36

129-37

NUT,#10-32

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
