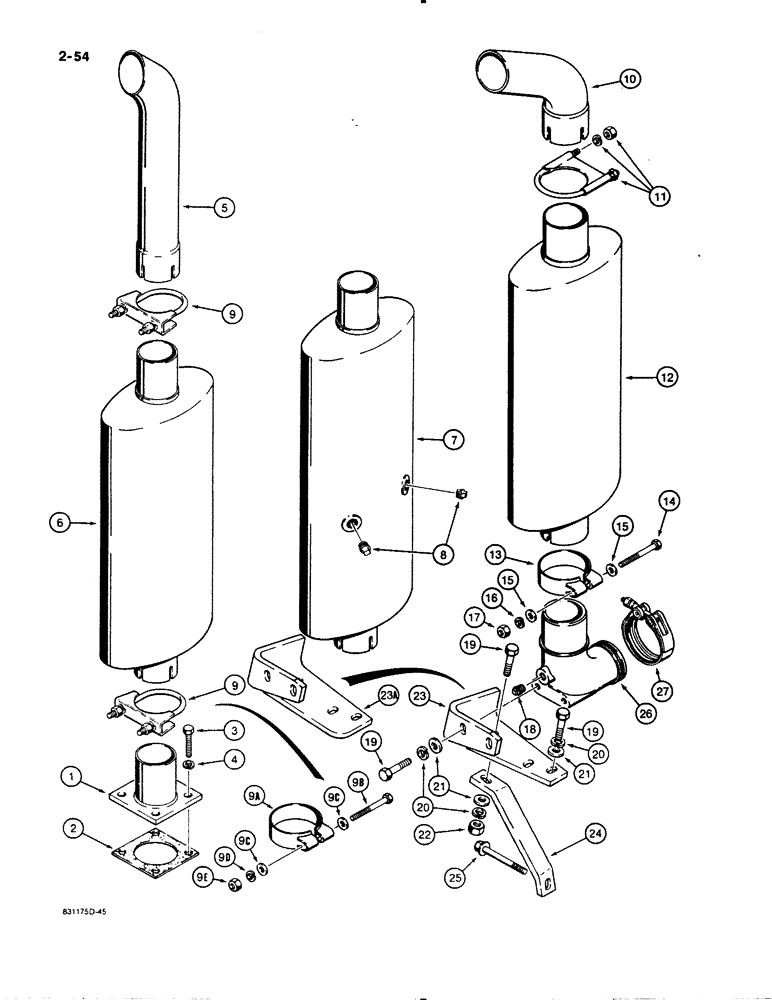

Запчасти Case W11B (2-054) - MUFFLER AND EXHAUST SYSTEM, USED ON MODELS WITHOUT (02) - ENGINE

1

L129963

ADAPTER

- exhaust pipe

1шт.

2

A170151

MANIFOLD GASKET

- exhaust pipe

1шт.

3

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 x 1.50 x 25 mm (8.8)

4шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

4шт.

5

L74728

PIPE

EXHAUST PIPE - muffler

1шт.

6

A173180

MUFFLER

- standard, if used

1шт.

7

A171108

MUFFLER

- spark arresting, if used, Includes: Ref. 8

1шт.

8

217-77

PLUG

- square, 3/8 inch PT, brass

2шт.

9

A13240

CLAMP,2-5/8" ID

- muffler, includes hardware, two clamps are used on units with Funk transmission

1-2шт.

9a

L79984

LAMP BASE

CLAMP - muffler, used on units with Clark transmission

1шт.

9b

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

9c

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8 inch, hardened

2шт.

9d

492-11038

LOCK WASHER,3/8"

1шт.

9e

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

A160894

EXTENSION

EXHAUST PIPE - muffler, used on models with turbocharger

1шт.

11

L100055

CLAMP

- muffler, upper, includes hardware, used on models with turbocharger

1шт.

12

A170065

MUFFLER

- turbocharged tractors, used on models with turbocharger

1шт.

13

R27691

CLAMP

- muffler, lower, used on models with turbocharger

1шт.

14

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

Used on models with turbocharger Hex, 3/8"-16 x 3 1/4", G5

1шт.

15

D41740

WASHER

- flat, 25/64 x 1 x 7/64 inch, hardened, used on models with turbocharger

2шт.

16

492-11038

LOCK WASHER,3/8"

used on models with turbocharger 3/8"

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used on models with turbocharger 3/8"-16, G5

1шт.

18

221-841

PLUG

- 1/4 inch PT, used on models with turbocharger

1шт.

19

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Used on Models with Turbocharger Hex, M10 x 30, 8.8

5шт.

20

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, used on models with turbocharger

5шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, Used on models with turbocharger

5шт.

22

825-1110

NUT,M10, Cl 8

hex, Used on models with turbocharger M10, Cl 8

1шт.

23

L114429

SUPPORT

BRACKET - exhaust elbow, no longer used, see item 23A, used on models with turbocharger

1шт.

23a

L126939

SUPPORT

BRACKET - exhaust elbow, used on models with turbocharger

1шт.

24

L115129

SUPPORT

BRACE - exhaust bracket, used on models with turbocharger

1шт.

25

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

- hex flange, 10 mm - 1.5 x 80 mm, used on models with turbocharger

1шт.

26

A173623

ELBOW

- turbocharger exhaust, used on models with turbocharger

1шт.

27

A170467

CLAMP,72mm ID

- exhaust elbow, used on models with turbocharger

1шт.
