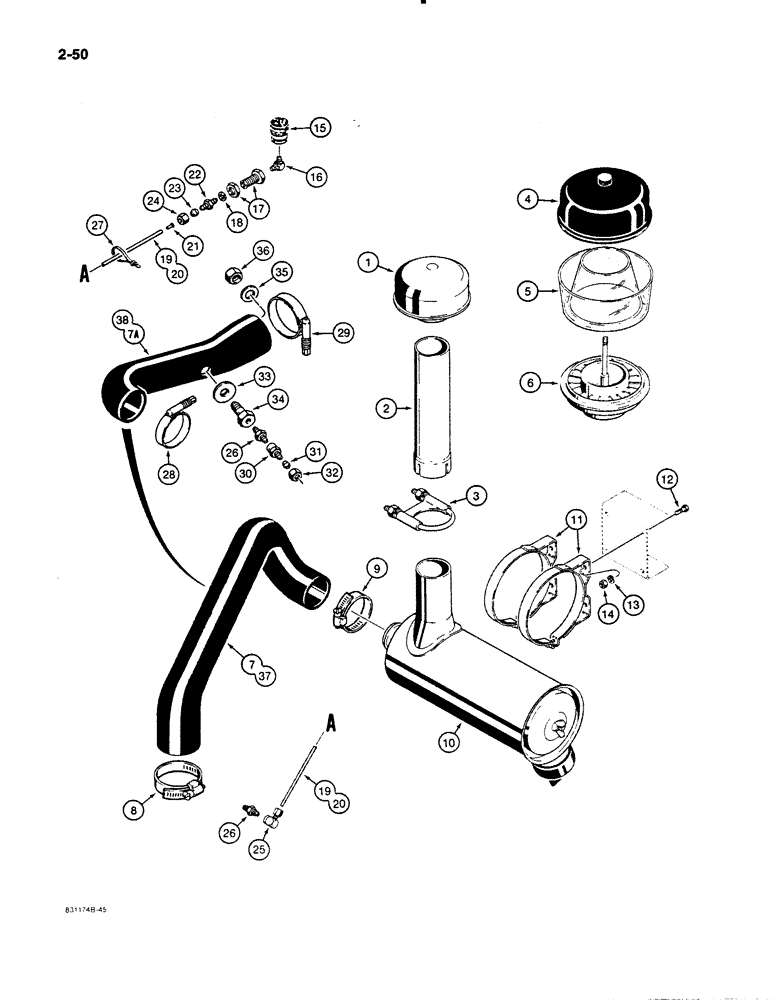

Запчасти Case W11B (2-050) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

1

A61277

CAP

- air inlet, if used

1шт.

2

R48479

TUBE,76.2 - 76.71 mm ID x 305 mm L

- air inlet

1шт.

3

L73711

CLAMP

- tube, includes hardware

1шт.

A24391

AIR CLEANER

PRECLEANER ASSEMBLY - air, if used, Includes: Ref. 4 - 6

1шт.

4

73187

COVER

- precleaner

1шт.

5

365413R1

BOWL

- precleaner

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - precleaner

1шт.

7

L112041

INTAKE AIR HOSE,2.50" ID, 3.00" ID

- Air Cleaner, Used on models without turbocharger and with Funk transmission 2.50" ID, 3.00" ID

1шт.

No adapter hole in side of hose.

1шт.

7a

L124183

INTAKE AIR HOSE,2.50" ID, 3.00" ID x 17.33", SAE J200

- Air Cleaner, Used on models with turbocharger, and with Funk transmission 2.50" ID, 3.00" ID x 17.33", SAE J200

1шт.

Hole in side of hose for assembly of Ref. 34.

1шт.

8

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - air cleaner hose, used on models without turbocharger

1шт.

9

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - air cleaner hose, used on models without turbocharger

1шт.

10

A170974

AIR CLEANER

ASSEMBLY - engine, parts list Figure 2-52

1шт.

11

L113910

CLAMP

- air cleaner, includes hardware

2шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

A59569

INDICATOR

- air cleaner filter restriction

1шт.

16

217-1227

ELBOW,90 Degree, 1/8"-27 Male

at indicator 90º, 1/8"-27 Male

1шт.

17

217-226

COUPLING

FITTING - straight, at elbow

1шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

19

L40537

TUBE,0.078" ID x 0.125" OD x 34" L

- air cleaner indicator, for models without turbocharger

1шт.

20

R45449

PLASTIC-RUBBER TUBE,1/8" OD x 26.5" L

TUBE - air cleaner indicator, for models with turbocharger, 1/8 inch OD x 26-1/2 inch long, cut from S118583, see below

1шт.

21

222-2452

INSERT

- nylon tubing

1шт.

222-2633

FITTING

ADAPTER - straight, compression fitting, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - compression fitting

1шт.

24

NSS

NOT SOLD SEPARAT

NUT - compression fitting

1шт.

25

222-5126

ELBOW,5/16"-24 Male x 1/8" NPTF Fem

- 90 degree

1шт.

26

D36264

FITTING

- filter, air restriction

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

28

L115548

CLAMP,57.15mm - 79.38mm

- hose to air cleaner, used on models with turbocharger

1шт.

29

L115549

CLAMP,69.85mm - 92.08mm

- hose to turbocharger, used on models with turbocharger

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

ADAPTER - straight, compression fitting, used on models with turbocharger, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - compression fitting

1шт.

31

222-5045

SLEEVE,1/8" Tube

- compression fitting

1шт.

32

222-5058

NUT,3/8"-24

NUT - compression fitting

1шт.

33

S107793

SEALING WASHER

WASHER - special, with rubber seal, with turbocharger

1шт.

34

A170609

FITTING

ADAPTER - 1/8 inch PT x 3/4 inch NC, with turbocharger

1шт.

35

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch, with turbocharger

1шт.

36

131-83

NUT,3/4"-10

NUT - hex lock, 3/4 inch NC, with turbocharger

1шт.

37

L118074

INTAKE AIR HOSE,2.50" ID, 3.00" ID, SAE J200

- Air Cleaner, Used on models without turbocharger, and with Clark transmission 2.50" ID, 3.00" ID, SAE J200

1шт.

38

L118317

INTAKE AIR HOSE,2.50" ID, 3.00" ID, SAE J200

- Air Cleaner, Used on models with turbocharger, and with Clark transmission 2.50" ID, 3.00" ID, SAE J200

1шт.

S118583

LARGE HOSE

TUBE - bulk roll, 1/8 inch OD x 300 inches long

1шт.
