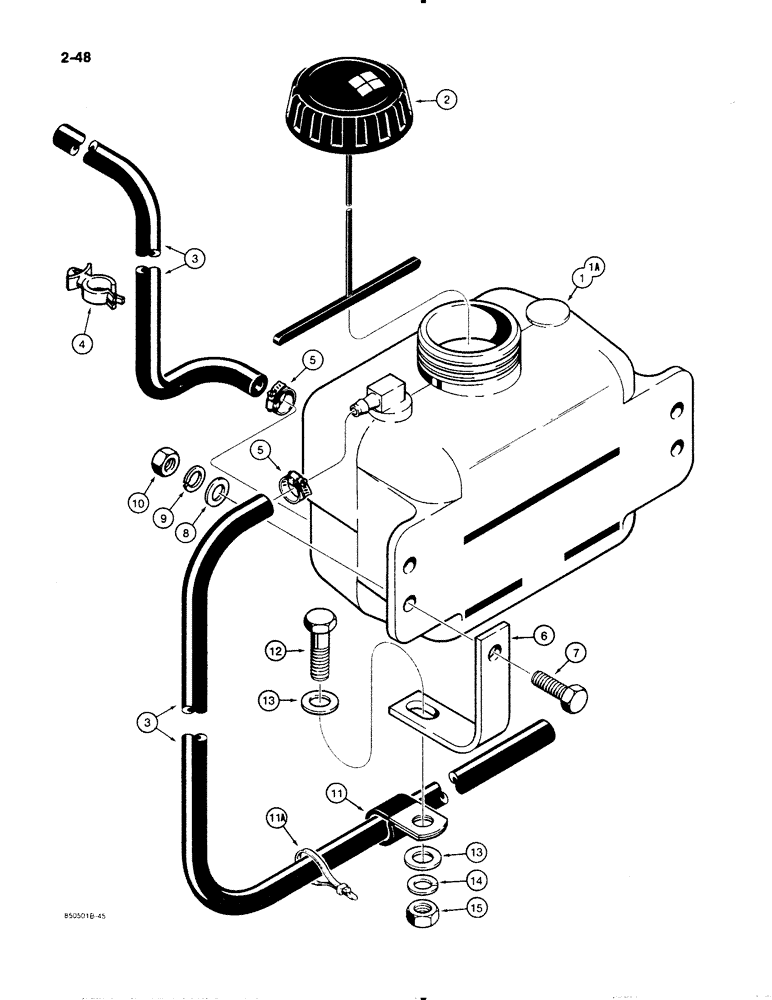

Запчасти Case W11B (2-048) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A171772

RESERVOIR

BOTTLE - coolant recovery, no longer available, order Ref. 1A

1шт.

1a

A184372

RESERVOIR

BOTTLE - coolant recovery

1шт.

Ref. 1A - No longer available

1шт.

2

A184079

CAP

- recovery bottle

1шт.

Made by Kelch. A184079 retained for other applications.

1шт.

Ref. 2A - Per ECN C920172 New Cap # 1547924C1

1шт.

3

A171087

HOSE,7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

- Radiator 7.50 mm ID, 8.30 mm ID x 1275.00 mm, SAE J30

2шт.

4

L117869

CLIP

- radiator hose

3шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

6

L113377

BRACKET

- recovery bottle mounting

2шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

195-103

WASHER,5/16"

- flat, 5/16 inch

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- recovery bottle overflow hose, no longer used, order Ref. 11A

1шт.

11a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
