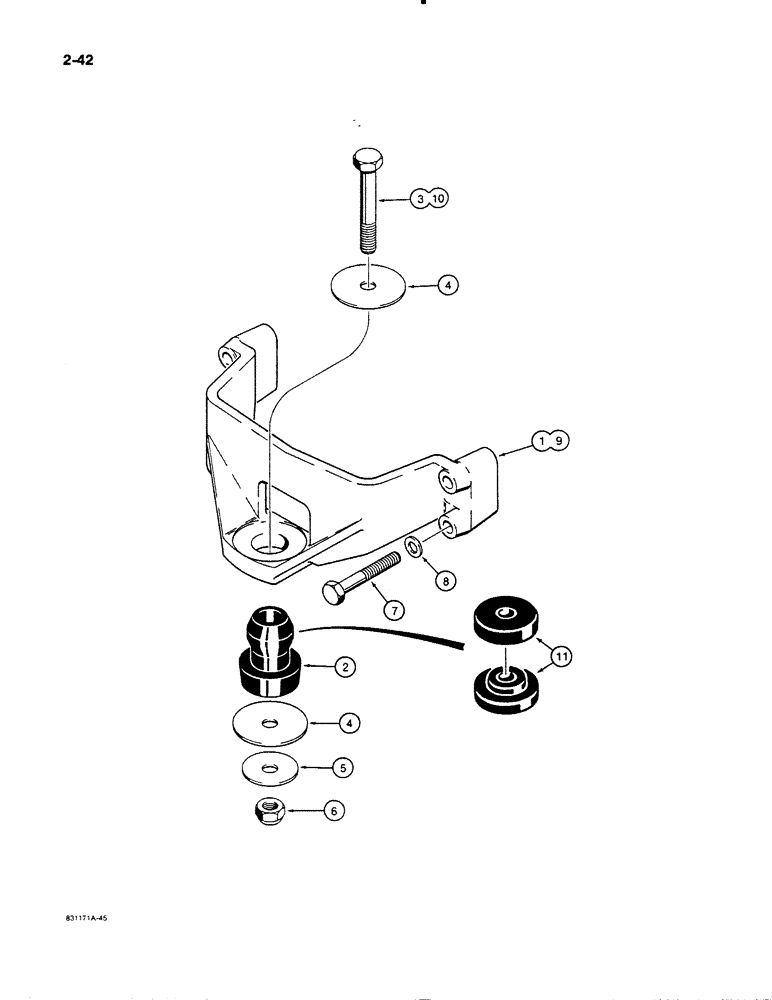

Запчасти Case W11B (2-042) - ENGINE MOUNTING (02) - ENGINE

L113969

SUPPORT

ASSEMBLY - engine, no longer available, order Refs. 9 and 10 and two of Ref. 11, Includes: Ref. 1 and 2

1шт.

1

A170985

BRACKET

SUPPORT - engine

1шт.

2

L113968

ANCHOR

INSULATOR - rubber, engine mount, no longer available, order two of Ref. 11 and one of Ref. 10

1шт.

3

26-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 8

- hex, 5/8 NC x 4-1/4 inch, grade 8, used with L113969 support

1шт.

4

L78455

WASHER

- flat, 21/32 x 3 x 3/16 inch, hardened

2шт.

5

R43666

SPACER

WASHER - flat, 21/32 x 2-3/8 x 3/16 inch, hardened

1шт.

6

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

7

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

- hex, 12 mm - 1.75 x 85 mm

4шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2 inch, hardened

4шт.

9

A170985

BRACKET

SUPPORT - engine

1шт.

10

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

11

R49921

RUBBER MOUNTING

MOUNT - rubber, engine

2шт.
